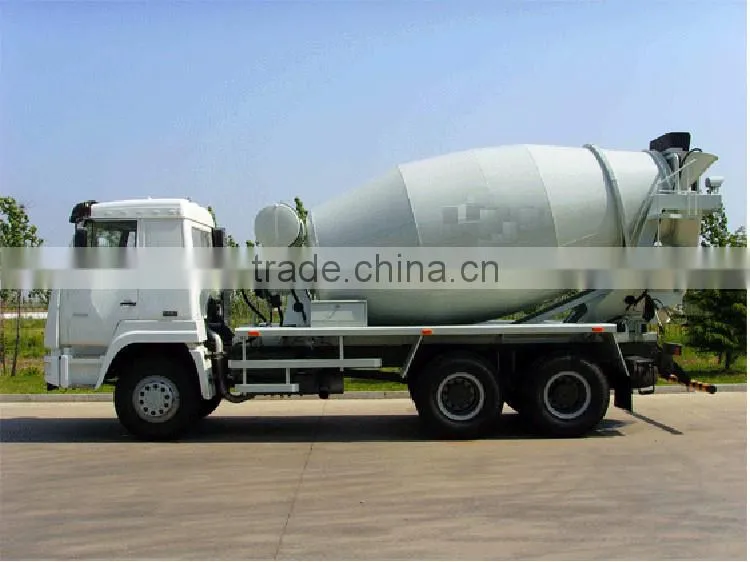

Cheap concrete truck mixer 10m3 agitating lorry
Product Name |
Dongfeng Nissan 10m3 |
||
Model |
HDJ5252GJBDN |
||
Load weight (kg) |
12115 |
||
Gross vehicle weight (kg) |
25000 |
||
Dimensions |
Length mm |
9053 |
|
Overall width mm |
2500 |
||
Overall height mm |
3890 |
||
Mixing tube performance parameters |
Mixing tube geometry volume m ³ |
15.64 |
|
Effective volume m ³ mixing tube |
10 |
||
Fill Rate% |
64 |
||
Feed speed m ³ / min |
≥ 3 |
||
Discharging speed m ³ / min |
≥ 2 |
||
Residual rate% |
≤ 1.0 |
||
Slump mm |
50 ~ 210 |
||
Mixing drum speed (rpm) |
0 ~ 17 |
||
Mixing tube angle º |
13 º |
||
Drive system |
Gear / pump |
Imported parts |
|
Hydraulic circuit |
Closed loop |
||
Water supply system |
Water tank capacity L / water supply |
500 / Electric Water Pump |
|
Vehicle performance and parameters |
Wheelbase mm |
3650 +1300 |
|
Maximum speed km / h |
95 |
||
Minimum turning diameter m |
6.75 |
||
Clutch |
Single, dry, hydraulic servo-pneumatic |
||
Transmission |
8 file forward, mechanical manual |
||
Drive Type |
6 × 4 |
||
Steering |
Recirculating ball type hydraulic power |
||
Brake |
Pneumatic double-loop |
||
Tires |
11.00-20,11.00 R20 |
||
Chassis |
DND5253GJBCWB273K |
||
Engine parameters |
Model |
MDB3 |
|
Type |
Water-cooled direct injection diesel engine |
||
Number of cylinders and arrangement |
Inline six-cylinder |
||
Total displacement L / kW |
9.726/246 |
||
Shipping details
Certifications Of Product
Other hot selling products for your choose
Shanghai CANMAX Electronic & Mechanical Equipment Co., Ltd is officially approved by Shanghai governmental foreign economic relations and trade commission, and we professionally operate imports, exports and sales engineering machinery equipment, etc.
Our company is located in Shanghai which is a financial, trade and shipping center in china. All these give our company an obvious superiority in trade, transportation and material flow.
CANMAX, as a professional one-stop machinery equipment supplier, we always keep the service philosophy " think what customer cares, do what client wants", devote ourselves to what customer needs, and provide products and service with high performance and good price.
After years of market expansion and win-win cooperation, we gain a lot of marketing experience in Engineering Machinery. And we now enjoy customers trust and a good reputation. We have already exported our products to more than 30 countries and regions, including: USA, MEXICO, AUSTRALIA, NEW ZELAND, IRAN, YEMEN, RUSSIA, MOST AREAS OF AFRICA, CENTRAL AISA, SOUTHEAST ASIA and so on. We now still keep a steady incremental development trend.
Our products refer to construction, road construction, ports, and petroleum pipeline and other mechanical equipments, totally 11 general classes, up to thousands of products.
Why choose us?
Quality:we make quality control for each unit separately ,shipping department check each goods before packing,totally avoid manufacturing defects,we care specially about cargo details and quality.
Competitive Prices : Our price is absolutely synchronization with market, the price is very reasonable.
Service:Our team always take the customer as the center, as much as possible to
help you find you want products, welcome your consultation.
CONTACT US for more detailed information
