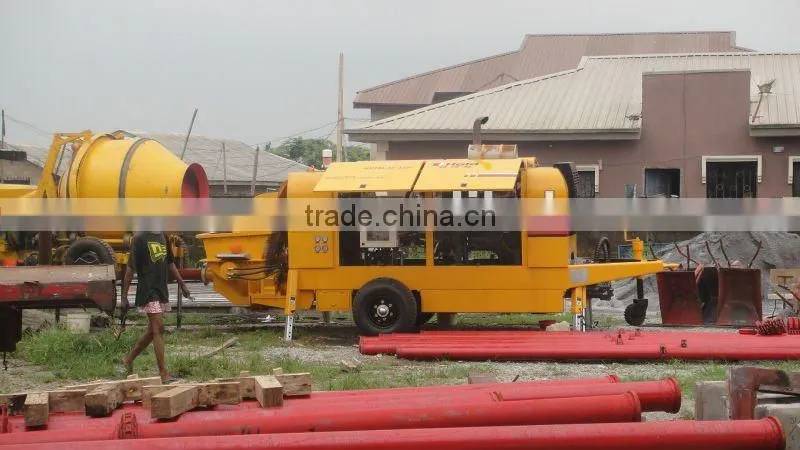

HBT80-13-90S Trailer-mounted Concrete Pump

Name: HBT80-13-90S Trailer-mounted Concrete Pump
Brand: Trailer-mounted concrete pump, CANMAX
SKU: 141324268
Availability: InStock

US$ 58,000 - 65,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Trailer-mounted concrete pump, CANMAX

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any part of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name Trailer-mounted concrete pump, CANMAX

Model Number HBT80-13-90S

Specifications

1. Powerful electric motor
2. PLC control
3. Hydraulic system imported from Geman or America.

	Control system PLC program controller, well receive or send the signal expediently. It connects with the computer closely. When there is abnormal, it will recover the the original process.
The pump is imported from Germany Rexroth, USA VICKERS. Big discharge, high efficiency, long span, and stable function and can run for a long period lastingly.
	Wearing parts Made of innovative horniness alloy tungsten steel, it has the shape of ring. The new setting technics makes it has longer in span, dozens of thousands of cubic meter longer span than similar products.
Hydraulic System Open loop and close loop are both available. They both have unique design to avoid hydraulic impact during direction change. Firstly to adopt the technology that return oil filtrates first then cooling. No impact and peak value. Good temperature control.
	Mixing system is driven by hydraulic motor. The hopper is unique in design, as assure that there is no accumulated material.

Trailer-mounted concrete pump: HBT80-13-90S

parameter

No.	Item	Unit	HBT80-13-90S
1	Theory Concrete Output (Low / High Pressure)	m³/h	80/50
2	Concrete Pressure (Low / high pressure)	Mpa	8.5/13.5
3	Hydraulic system pressure	Mpa	32
4	Rotation speed	r/min	1480
5	High / low pressure switch		Yes
6	Main oil cylinder diameter/ Stroke		130×80/1800
7	Pumping cylinder diameter/ Stroke	mm	200/1800
8	Main oil pump discharge	ml/r	260
9	Motor power	kw	90
10	Voltage/ Frequency	V/Hz	380/50
11	Hydraulic tank volume	L	500
12	Height of adding material	mm	≤1450
13	Hopper volume	m³	0.7
14	Total mass	kg	5800
15	Concrete slump	mm	80-230
16	Theory vertical pumping height	m	200
17	Theory direction change times Low/High pressure	times/min	24/15
18	Dimension: LXWXH	mm	6400×2200×2350
