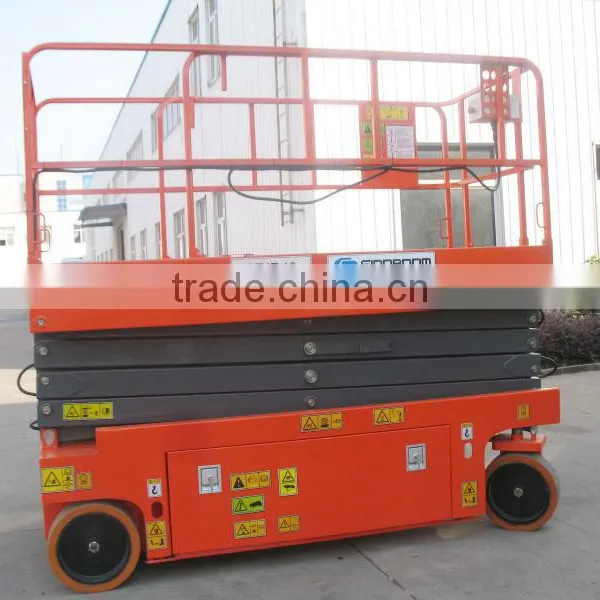

Help CenterCANMAX SCISSOR LIFTS
Related Products
Specifications
Gurranted Quality;High Working Function;
Hydraulic .
Major specification |
GTJZ10 |
Measurement |
|
Platform height |
9.8m(32ft) |
Working height |
11.8m(39ft) |
Overall width |
1.15m(3.8ft) |
Stowed height |
2.4m(7.9ft) |
Overall length |
2.55m(8.4ft) |
Platform size (L*W*H) |
2.55mx1.15 mx1.1m |
Extension outreach |
0.9m(3ft) |
Performance |
|
Platform capacity |
450 kg |
Wheelbase |
2.12m |
Ground clearance |
0.09m |
Travel speed--stowed |
0~3.2km/h |
Travel speed--raised |
0~0.8km/h |
Lift/Down speed (no load) |
60/67s |
Control |
24V DC |
Platform |
Steel |
Drive |
2wd, front wheel |
Disc brake |
2 rear wheel |
Max. wind speed |
12.5m/s |
Gradeability--stowed |
25% |
Turning radius-inside |
0 |
Turning radius-outside |
2.35m |
Tire |
Solid non marking |
Tire dimension |
406*125mm |
Hydraulic tank |
13L |
Hydraulic System Volume |
16L |
Hydraulic system pressure |
21 Mpa |
Battery voltage |
6V*4 / 225AH |
Charger voltage & frequency |
190~250V 50Hz |
Charger output |
30A auto-timing |
Weight |
2488kg |
Send Inquiry to This Supplier
