Specifications
Gurranted Quality;High Working Function;
Hydraulic .

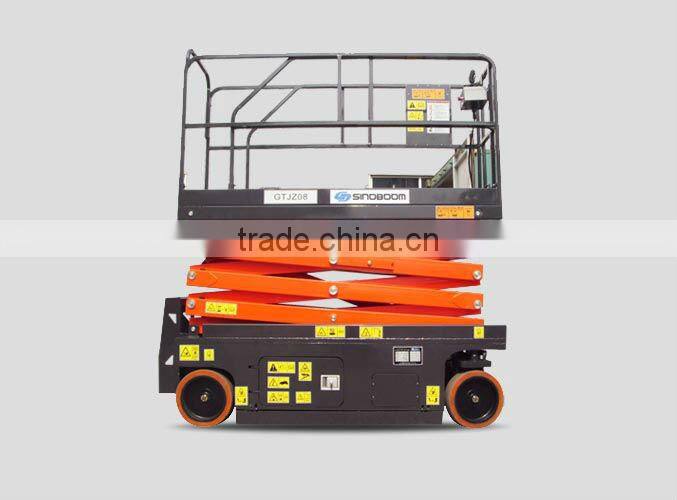

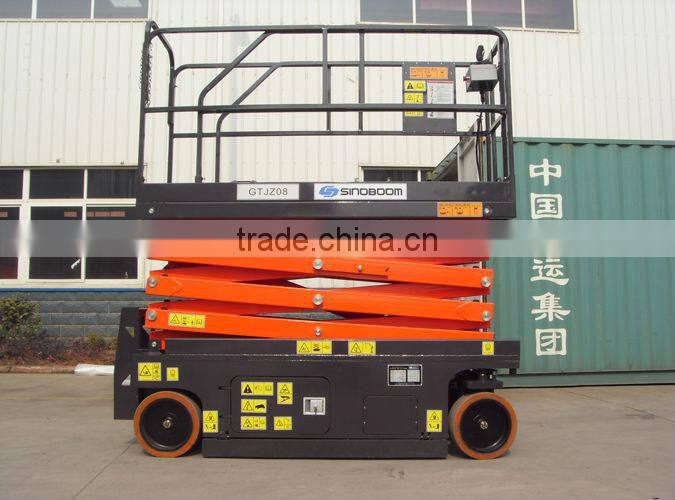

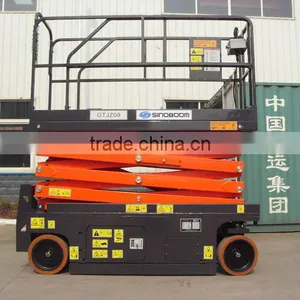

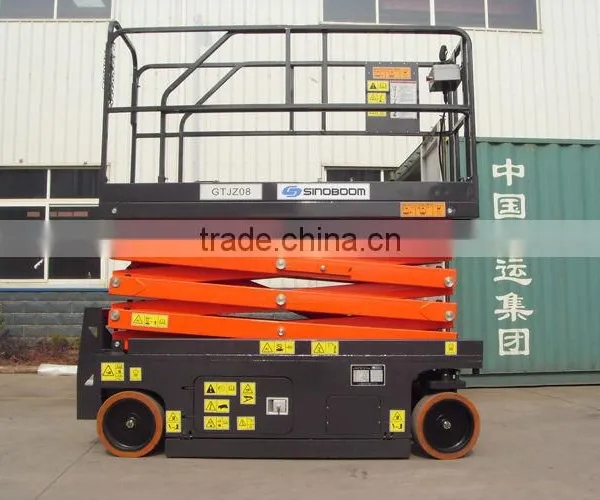

Major specification | GTJZ08 |
Measurement |
|
Platform height | 7.9m(26ft) |
Working height | 9.9m(32ft) |
Overall width | 0.77m(2.5ft) |
Stowed height | 2.38m(7.8ft) |
Overall length | 2.48m(8.1ft) |
Platform size (L*W*H) | 2.3mx0.77mx1.1m |
Extension outreach | 0.9m(3ft) |
Performance |
|
Platform capacity | 250 kg |
Wheelbase | 1.88m |
Ground clearance | 0.09m |
Travel speed--stowed | 0~3.2km/h |
Travel speed--raised | 0~0.8km/h |
Lift/Down speed (no load) | 38/45s |
Control | 24V DC |
Platform | Steel |
Drive | 2wd, front wheel |
Disc brake | 2 rear wheel |
Max. wind speed | 12.5m/s |
Gradeability--stowed | 25% |
Turning radius-inside | 0 |
Turning radius-outside | 1.98m |
Tire | Solid non marking |
Tire dimension | 406*125mm |
Hydraulic tank | 13L |
Hydraulic System Volume | 16L |
Hydraulic system pressure | 21 Mpa |
Battery voltage | 6V*4 / 225AH |
Charger voltage & frequency | 190~250V 50Hz |
Charger output | 30A auto-timing |
Weight | 2180kg |
