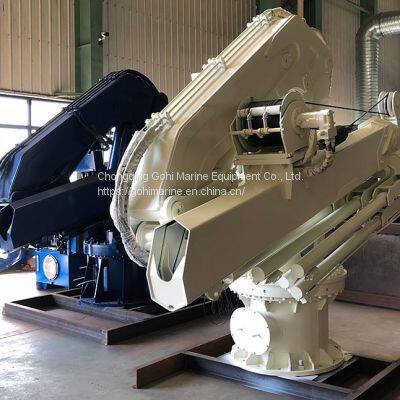

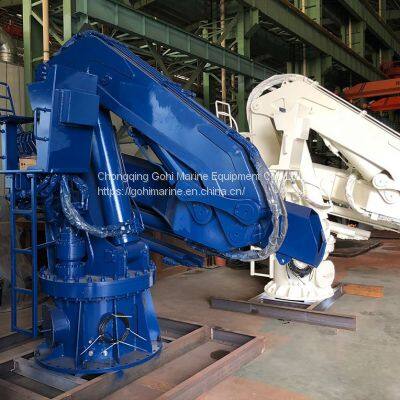

CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
There are various forms of hydraulic folding telescopic cranes for marine use, such as folding arms, telescoping, and folding. It is used for lifting various daily necessities and seafood which are not very heavy, and widely used in commercial ships, academic research, maritime and many other fields. The ship crane adopts anti-corrosion design, with rotating gears and a relatively light weight, compact structure, it solves the problem of tight space for small ships. However, the crane can meet the lifting requirements of 34000N/M. It is a widely used marine crane.
Features:
* Flexible and reliable action
* High loading efficiency of ship crane
* Easy to operate
* Higher quality hydraulic system
* Deck arrangement is relatively simple, and requires a small deck area
* Suitable for hoisting of important pieces
Advantage:
1. Adopt advanced R & D and technical methods to ensure the reliability of the product.
2. Integral lifting winch mechanism, higher working efficiency, longer life of hydraulic system.
3.Dual pump system with separate hydraulic circuit for hoist and luffing/slewing to ensure efficient cargo handling.
4.Fail-safe brakes on all movements.
5. Equipped with hydraulic oil cooler, it can operate in high temperature environment.
6. Base on many year's experience of crane and harbor equipment.
Structure:
The folding boom telescopic marine crane is a lifting equipment designed specifically for ships, with strong lifting capacity and efficient work efficiency. This crane is fixed to the ship deck through flanges or welding, mainly used for lifting and moving heavy goods, such as ordinary goods, equipment, personnel, etc.
The folding arm telescopic crane adopts advanced hydraulic system, which can achieve accurate control and intelligent operation. It has strong stability and safety, and can operate safely and reliably in harsh working environments.
The crane is made of high-strength steel plates and coated with epoxy zinc rich Jotun paint, which has good durability and corrosion resistance. At the same time, the crane also has a compact structure, which is convenient for maintenance, installation, and repair, and can effectively save time and cost of ship maintenance.
| Nodel | Working Radius (m) | Loading(kg) | Lifting Torque | Slewing Torque(kNm) | Base Size (mm) | Slewing Dgree | Hydraulic Pressure (bar) | Weight(kg) |
| (kNm) | ||||||||
| GCF20 | 0.6-3.0 | 500-300 | 9-15 | 15 | 260 | 400 | 250 | 300-380 |
| GCF45 | 0.8-4.0 | 1000-500 | 20-40 | 45 | 500 | 400 | 250 | 560-860 |
| GCF80 | 1.5-6.0 | 1200-500 | 30-72 | 80 | 500 | 400 | 250 | 650-950 |
| GCF100 | 4.6-10.8 | 2200-750 | 81-95.6 | 100 | 620 | 360 | 250 | 1730-2030 |
| GCF120 | 4.6-10.8 | 2600-900 | 97.2-115.5 | 120 | 620 | 360 | 250 | 1750-2100 |
| GCF150 | 4.55-12.85 | 3280-830 | 106.6-147.3 | 150 | 800 | 360 | 250 | 2120-2500 |
| GCF180 | 4.55-12.85 | 3900-1020 | 131-173.5 | 180 | 800 | 360 | 250 | 2270-2750 |
| GCF220 | 4.4-15 | 4900-850 | 128-211 | 220 | 900 | 360 | 250 | 3050-3900 |
| GCF270 | 4.4-15 | 6100-1100 | 165-256 | 270 | 900 | 360 | 250 | 3600-4340 |
| GCF320 | 5.35-17.85 | 5900-1080 | 192.8-308.7 | 320 | 1050 | 360 | 250 | 4950-6200 |
| GCF370 | 5.35-17.85 | 6900-1250 | 223.1-363.8 | 370 | 1250 | 360 | 250 | 5300-6800 |
| GCF450 | 5.5-21.5 | 8150-1300 | 279.5-446.6 | 450 | 1550 | 360 | 250 | 7800-10500 |
| GCF550 | 5.5-21.5 | 9900-1650 | 354.8-539 | 550 | 1550 | 360 | 205 | 8500-11250 |
