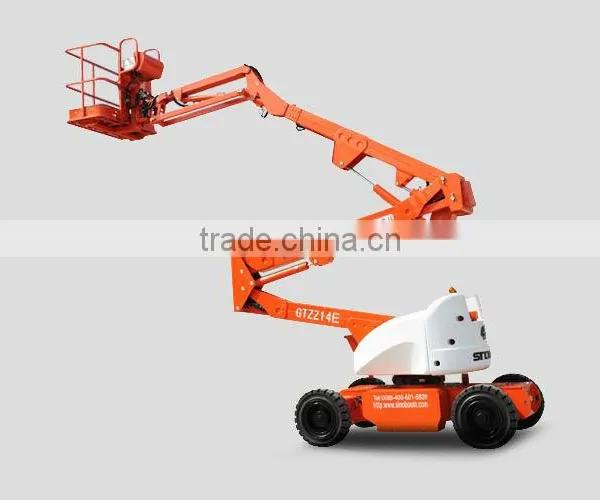

CANMAX Articulated Boom Lifts

Name: CANMAX Articulated Boom Lifts
Brand: CANMAX
SKU: 141323806
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Max. Lifting Load:

0.23t

Max. Lifting Height:

15.7m

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 0.23t

Max. Lifting Height 15.7m

Place of Origin Hunan, China

Brand Name CANMAX

Model Number GTZZ14E

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Mobile type working platform;
Hydraulic lifting system.

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	5.54M	Platform height max.	13.7M
Overall width(stowed)	1.75M	Working height max.	15.7M
Overall height(stowed)	1.995M	Horizontal reach max.	7.4M
Ground clearance	0.2M	Turntable rotation	355°
Wheelbase	2M	Platform rotation	160°
Overall weight	6400Kg	Platform Load capacity	227Kg
Platform Size (LWH)	1.520.771.22M	Grade ability	30%
Platform levelling	auto	Turning radius(outside)	3.23M
Tire specification	250-15	Turning radius(inside)	0.7M
Tire type	Solid	Turntable tailswing	0
Power
Hydraulic tank vol.	35 L	Driving Speed (stowed)	5.2km/h
Hydraulic system vol. (inc. the tank)	60L	Driving Speed (extended)	0.8km/h
Control voltage	48 V	Max allowable wind force	12.5m/s
Motive Power	Driving motor	Max allowable slope	3.5°
Drive & steer model	2WD, 2WS	Max allowable side force	400N
