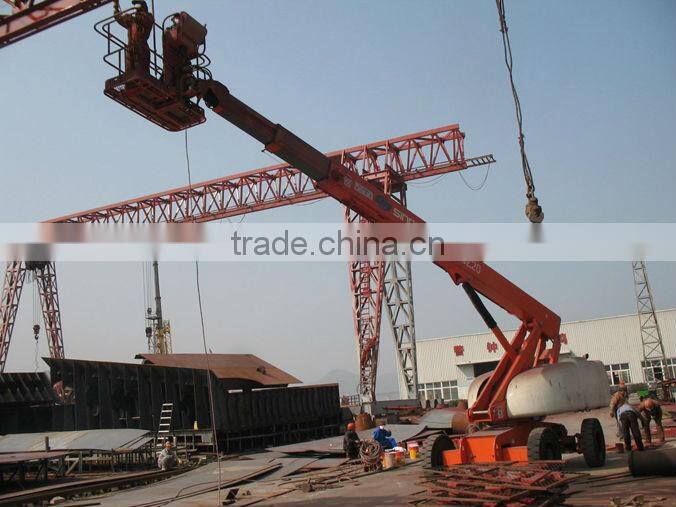

CANMAX TELESCOPIC BOOM LIFTS

Name: CANMAX TELESCOPIC BOOM LIFTS
Brand: CANMAX
SKU: 141323812
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Max. Lifting Load:

250kg-340kg

Max. Lifting Height:

22.6M

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 250kg-340kg

Max. Lifting Height 22.6M

Place of Origin Hunan, China

Brand Name CANMAX

Model Number GTBZ20

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Gurranted Quality;
High Working Function;
Hydraulic Lifting Boom.

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	9.18M (30ft)	Platform height max.	20.6M (68ft)
Overall width(stowed)	2.49M (8ft)	Working height max.	22.6M (74ft)
Overall height(stowed)	2.8M (9ft)	Horizontal reach max.	17.3M (57ft)
Ground clearance	0.31M (1ft)	Turntable rotation	360°continuous
Wheelbase	2.49M (8.2ft)	Platform rotation	160°
Overall weight	11015kg (2WD)	Platform Load capacity	250kg (non-restricted)
Overall weight	11085kg (4WD)	Platform Load capacity	340kg (restricted)
Platform Size (LWH)	1.830.761.1M (6ft 2.5ft 3.6ft)	Grade ability	40% (2WD)
Platform Size (LWH)	1.830.761.1M (6ft 2.5ft 3.6ft)	Grade ability	45% (4WD)
Platform levelling	Automatic	Turning radius(outside)	4.97M (16.3ft)
Tire specification	9.00-20	Turning radius(inside)	1.66 M (5.5ft)
Tire type	Solid	Turntable tailswing	1.32M (4.3ft)
Power		Max. Driving Speed	6.3km/h
Hydraulic tank vol.	170L	Driving Speed (stowed)	0~6.3km/h
Hydraulic system vol. (inc. the tank)	270L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	125L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Original Cummins B3.3 60hp	Max noise on normal use	82dB(A)
Drive & steer model	2WD*2WS	Max allowable side force	400N
