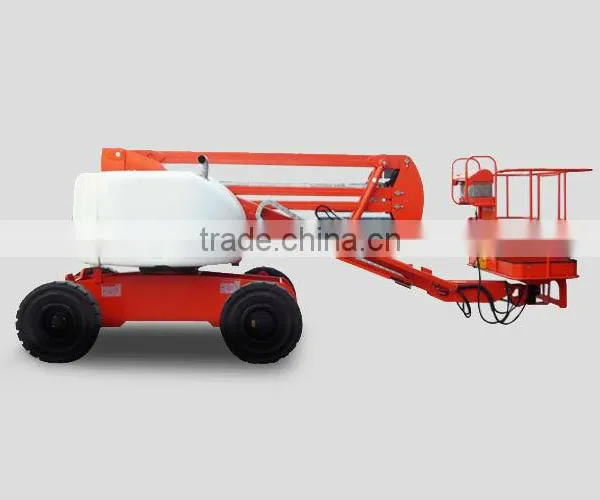

CANMAX ARTICULATED BOOM LIFTS

Name: CANMAX ARTICULATED BOOM LIFTS
Brand: CANMAX
SKU: 141323808
Availability: InStock

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Max. Lifting Load:

250kg

Max. Lifting Height:

16.8m

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 250kg

Max. Lifting Height 16.8m

Place of Origin Hunan, China

Brand Name CANMAX

Model Number GTZZ15

Certification CE

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Gurranted Quality;
High Working Function;
Hydraulic Lifting Boom.

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	5.56M (18ft)	Platform height max.	14.8M (49ft)
Overall width(stowed)	2.1M (6ft)	Working height max.	16.8M (55ft)
Overall height(stowed)	2.18M (7ft)	Horizontal reach max.	7.62M (25ft)
Ground clearance	0.23M (0.8ft)	Turntable rotation	355°
Wheelbase	2.2M (7.2ft)	Platform rotation	160°
Overall weight	6500kg (2WD)	Platform Load capacity	250kg
Overall weight	7700kg (4WD)	Platform Load capacity	250kg
*Platform Size (LWH)*	*1.830.761.1M* *(6ft 2.5ft 3.6ft)*	Grade ability	40% (2WD)
*Platform Size (LWH)*	*1.830.761.1M* *(6ft 2.5ft 3.6ft)*	Grade ability	40% (4WD)
Platform levelling	Automatic	Turning radius(outside)	4.5M (15ft)
Tire specification	300-15	Turning radius(inside)	1.8 M (6ft)
Tire type	Solid	Turntable tailswing	0M (0ft)
Power		Max. Driving Speed	7km/h
Hydraulic tank vol.	70L	Driving Speed (stowed)	0~7km/h
Hydraulic system vol. (inc. the tank)	110L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	135L	Max allowable wind force	12.5m/s
Control voltage	12V	Max allowable slope	3°
Engine	Perkins 404D-22T	Max noise on normal use	82dB(A)
Drive & steer model	*2WD2WS**	Max allowable side force	400N
