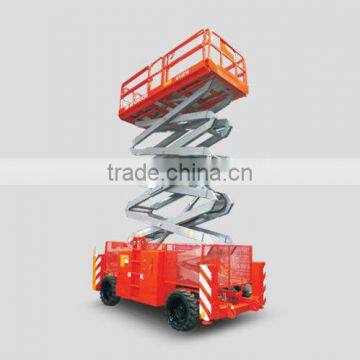

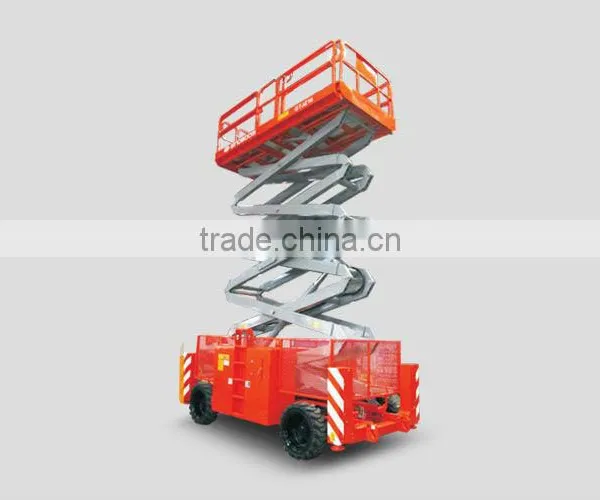

Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > 16m Scissor Lift
US$ 8,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
CANMAX
Model Number:
GTJZ16
Payment & Shipping
Payment Methods:
Port of Shipment:
main ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hunan, China
Brand Name
CANMAX
Model Number
GTJZ16
Specifications
As a professinal manufacturer of aerial work platforms, we are able to give you the best quality and service.More details about this Aerial Work Platform:
| The property of the product | |
| Max. Platform height | 16.1m |
| Max. Working height | 18.1m |
| Extension outreach(front) | 1.35m |
| Extension outreach (back) | 1.35m |
| Turning radius - outside | 5.8m |
| Turning radius - inside | 3.7m |
| Gradeability | 40%(4WD) |
| Load capacity | 680kg |
| Extension deck capacity | 227kg |
| No. of occupants | 4 persons |
| Driving speed - stowed | 0~6km/h |
| Driving speed - raised | 0~1.1km/h |
| Maximum outrigger leveling (front/back) | 7° |
| Maximum outrigger leveling (side/side) | 12° |
| Maximum allowable wind speed | 12.5m/s |
| Maximum allowable slope | 3° |
| Maximum working noise | 82dB(A) |
| Max allowable side force | 400N |
| Measurements | |
| Overall Length - stowed | 4.86m |
| Overall Width - stowed | 2.3m |
| Overall Height - stowed | 3.24m |
| Overall Height - rails lowered | 2.47m |
| Ground clearance | 0.36m |
| Wheelbase | 2.84m |
| Platform size(L*W*H) | 3.75*1.86*1.1m |
| Platform size(L*W*H)oneway-extened | 5.10*1.86*1.1m |
| Platform size(L*W*H)bothway-extened | 6.45*1.86*1.1m |
| Overall Weight | 8250Kg(4WD) |
| Tires specification | 33*12-20/solid |
| Hydraulic tank capacity | 110L |
| Hydraulic system capacity | 150L |
| Fuel tank capacity | 110L |
| Control voltage | 12VDC |
| Engine | Perkins 404D-22,37kw /2800rpm |
| Driving mode | 4WD*2WS |
