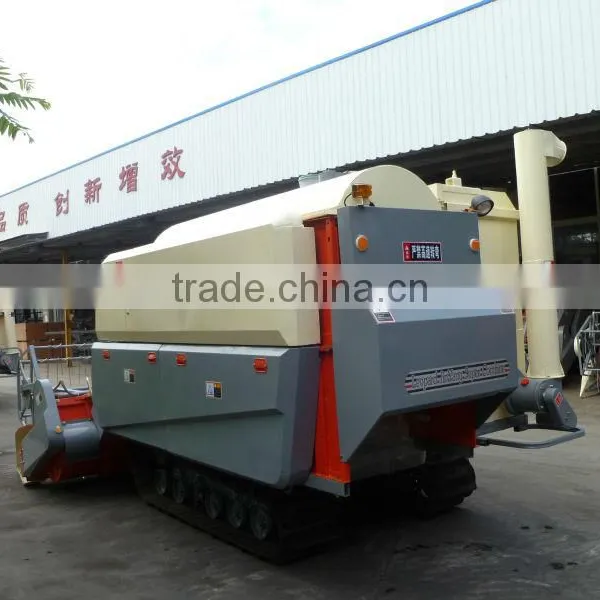

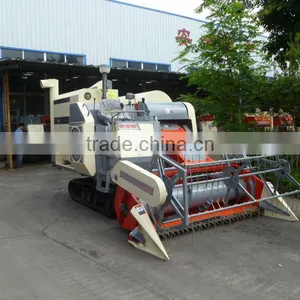

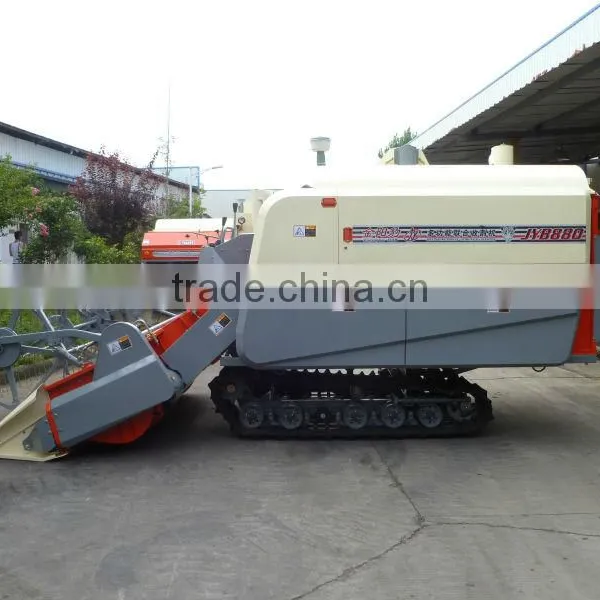

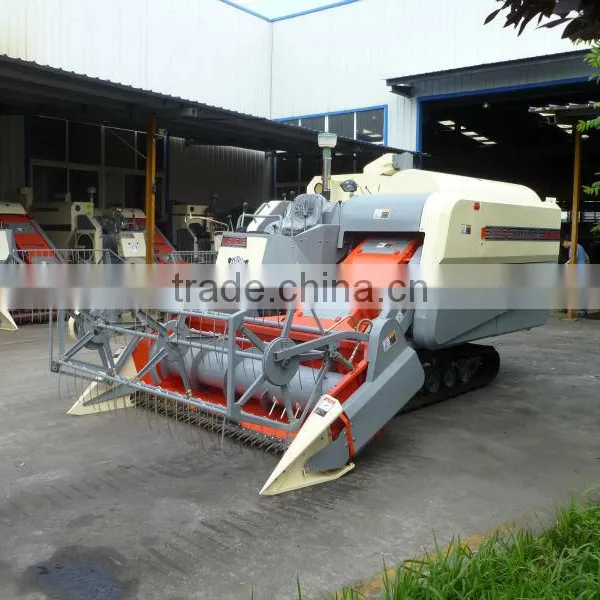

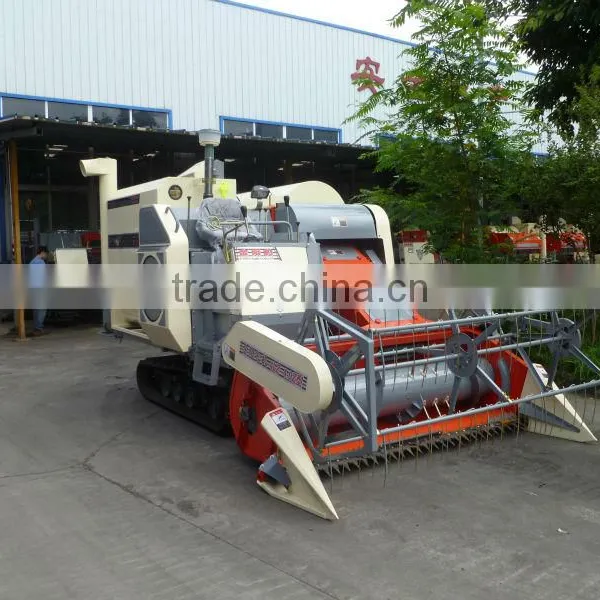

Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > 4LZ-4.0Z COMBINE HARVESTER
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Combine Harvester
Drive Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4LZ-1.2 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 1 -
4LZ-1.4 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 3 Sets
-
4LZ-1.6 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 3 Sets
-
4LZ-2.0 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 3 Sets
-
4LZ-4.0Z Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 3 Sets
Condition
New
Type
Combine Harvester
Drive Type
Other
Usage
Other, rice, wheat, rape seed
Place of Origin
Sichuan, China
Brand Name
JYB
Model Number
4LZ-4.0Z
Dimension(L*W*H)
5100x2600x2450
Weight
3000kg
Certificate
Other
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Easy for operation and maintenance.It is a safety and energy-saving machine.
Threshing loss less than 3%, high purity 98%.
| Model: | 4LZ-4.0Z Combine Harvester | Application: | Grain, Wheat, Rape Seed. | |
| Type: | Full-feed, Track Combine | Safety & Handling: | See Operation Manual | |
| Make: | JinYang Bao | Occupation: | Manufacturer | |
| Description: | 4LZ-4.0Z combine with excellent performance in different crops and different field conditions, | |||
| the machine is easy for operation and maintenance, it is a safety and energy-saving machine. | ||||
| Featured with 37cc HST, 60 gearbox, wider rubber track, and bigger storing tank 1200L, bigger | ||||
| feeding capacity, and higher output. | ||||
| Quality System: | Production Plant Accredited to GB/T 19001-2008 / ISO9001 :2008. | |||
| Packing: | Strong standard export package suitable for long distance transportation. | |||
| Specification: | ||||
| Overall Dimension | Length×Width×Heights ( mm ): 5100×2600×2450 | |||
| Weight (kg) | 3000 | |||
| Feeding Capacity( kg/s ) | 4 | |||
| Harvesting Capacity(hm²/h): | 0.4-0.75 | |||
| Engine | Engine Model: 498BT/BZT/L; 4C6-88M22 | |||
| Rated Power ( kw/hp ): 65/88, 55/75 (Alternative) | ||||
| Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. | ||||
| Rated Rotation Speed (r/min) : 2400 | ||||
| Fuel Tank Capacity ( l ): 70 | ||||
| Driving System | Crawlers(mm): 90×51×450 | |||
| Crawler Steering Radius ( mm ): left turn 2850; right turn 2850 | ||||
| Minimum Ground Clearance (mm): 280 | ||||
| Type of Gearbox: Hydraulic type + HST(3F, 3R) | ||||
| Theoretical Operating Speed ( km/h ): 2~4 | ||||
| Type of Brake: By Foot. | ||||
| Steering: Clutch and Brake. | ||||
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 | |||
| Height Adjustment: Hydaulics. | ||||
| Cutting Bar Length ( mm ): 2228 | ||||
| Type of Cutting Bar Auger: Screw Conveying. | ||||
| Type of Blade: V Type / Left and Right. | ||||
| Rape Seed Extension: Optional | ||||
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow | |||
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 620×1700 | |||
| Reshresher: Blade Rotation. | ||||
| Vibrating Sieve: Adjustable Sieve+ Meshing Sieve | ||||
| Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4 | ||||
| Grain Storing | Option 1: Grain Tank with Unloading Auger, Capacity ( l ): 1200 | |||
| Option 2: Manual Operation. | ||||
