Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > 4LZ-1.6 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture Machinery

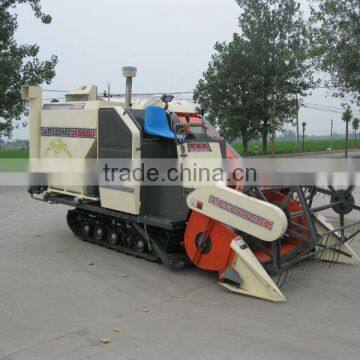

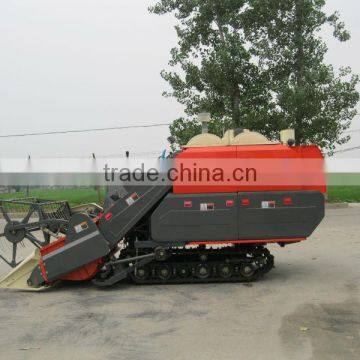

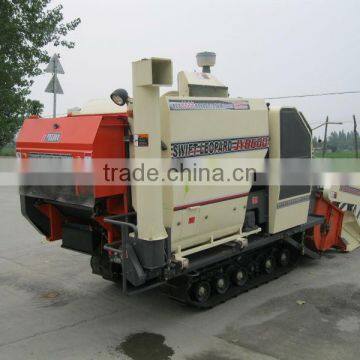

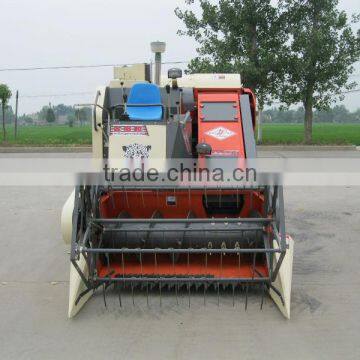

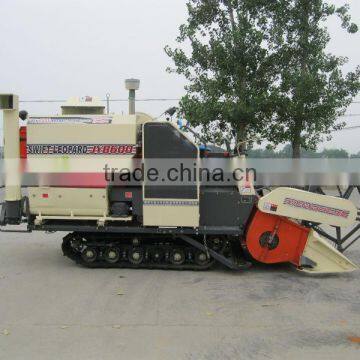

4LZ-1.6 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture Machinery
Negotiable
MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Combine Harvester
Drive Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4LZ-2.0 Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 3 Sets -
4LZ-4.0Z Combine Harvester 2014 Hot Sell With Good Quality China Supplier Agriculture MachineryNegotiableMOQ: 3 Sets
-
5TG-81 Thrasher, Agricultural Machinery Manufacturing, the ThrasherNegotiableMOQ: 5 Units
-
Combine HarvestNegotiableMOQ: 1 Set
-
K-BOS Combine HarvesterNegotiableMOQ: 3 Units
Condition
New
Type
Combine Harvester
Drive Type
Other
Usage
Grain Harvester
Place of Origin
Sichuan, China
Brand Name
JYB
Model Number
4LZ-1.6
Dimension(L*W*H)
4450x1810x2480
Weight
2200kg
Certificate
Other
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Easy for operation and maintenance.It is a safety and energy-saving machine.
Threshing loss less than 3%, high purity 98%.
| Model: | 4LYZ-1.6 Combine Harvester | Application: | Grain, Wheat, Rape Seed. | |
| Type: | Full-feed, Track Combine | Safety & Handling: | See Product Brochures. | |
| Make: | JinYang Bao | Occupation: | Manufacturer | |
| Product Description: | 4LYZ-1.6 combine with excellent performance in different crops and different field conditions, | |||
| the machine is easy for operation and maintenance, it is a safety and energy-saving machine. | ||||
| Quality System: | Production Plant Accredited to GB/T 19001-2008 / ISO9001 :2008. | |||
| Packing: | Strong standard export package suitable for long distance transportation. | |||
| Specification: | ||||
| Overall Dimension | Length×Width×Heights ( mm ): 4450×1810×2480 | |||
| Weight (kg) | 2200 | |||
| Feeding Capacity( kg/s ) | 1.6 | |||
| Harvesting Capacity(hm²/h): | 0.1-0.4 | |||
| Engine | Engine Model: SL3105ABN; | |||
| Rated Power ( kw/hp ): 42.2/57.4 | ||||
| Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. | ||||
| Rated Rotation Speed (r/min) : 2600 | ||||
| Fuel Tank Capacity ( l ): 47 | ||||
| Driving System | Crawlers: Track Gauge( mm ): 850; Width×ground contact length ( mm ): 350×1480 | |||
| Crawler Steering Radius ( mm ): left turn 2750; right turn 2750 | ||||
| Minimum Ground Clearance (mm): 210 | ||||
| Type of Gearbox: Mechanism + HST(3F, 3R) | ||||
| Theoretical Operating Speed ( km/h ): 0~4 | ||||
| Type of Brake: By Foot. | ||||
| Steering: Clutch and Brake. | ||||
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 | |||
| Height Adjustment: Hydaulics. | ||||
| Cutting Bar Length ( mm ): 1600 | ||||
| Type of Cutting Bar Auger: Screw Conveying. | ||||
| Type of Blade: V Type / Left and Right. | ||||
| Rape Seed Extension: Optional | ||||
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow | |||
| & Cleaning System | Main Threshing Cylinder Size Diameter × Length ( mm ): 443×958 | |||
| Assistant Threshing Cylinder Size Diameter × Length ( mm ): 443×408 | ||||
| Reshresher: Blade Rotation. | ||||
| Concave Sieve: Grid × 2 | ||||
| Blower Fan: Type: Swirl; Diameter( mm ): 300; Nos: 2 | ||||
| Grain Storing | Option 1: Grain Tank with Unloading Auger, Capacity ( l ): 778 | |||
| Option 2: Manual Operation. | ||||
