Drum type high quality screw sand washing machine
1.Feature
a.The quality of washing sand is high.
b.No easy to damage.
c.Easy to operation ,one person can control it.
d.Design according to your situation and requests.
2.Basic parameters
| Basic Parameters of Sand Washer | ||||
| Type | KDSSJ12-26 | KDSSJ15-28 | KDSSJ18-30 | KDSSJ20-30 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 | 3800x3100x3100 | 3800x3400x3100 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double | φ3000x1800triplex | φ3000x2000triplex |
| Material | 8mm | 8mm | 10mm | 10mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 | 3800x1900 | 3800x2100 |
| Material | 4mm | 4mm | 5mm | 5mm |
| Working capacity m³/h | 50-60 | 80-100 | 120-150 | 150-180 |
| Max.approval grain size(mm) | ≤12 | ≤12 | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 | 15kw-4 | 18.5kw-4 |
| Submersible pump | ||||
| Power | 5.5kw | 7.5kw | 7.5kw | 5.5kw x2 |
| Clean Water Flow m³/h | 60 | 65 | 65 | 60 |
| Conveyor | ||||
| Length mm | 10000 | 10000 | 10000 | 10000 |
| Belt width mm | 600 | 800 | 1000 | 1000 |
| Frame material | 12#channel steel | 12#channel steel | 12#channel steel | 14#channel steel |
| Electromotor kw | 5.5 | 7.5 | 11 | 15 |
3.Sand washer

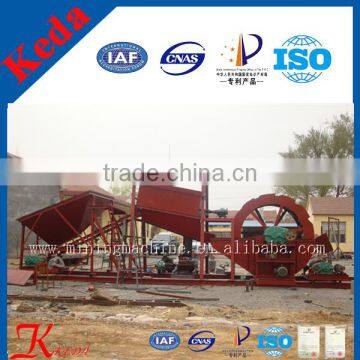

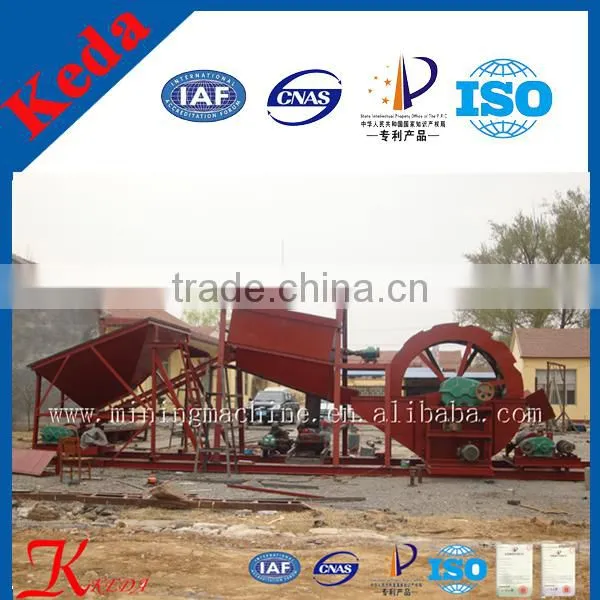

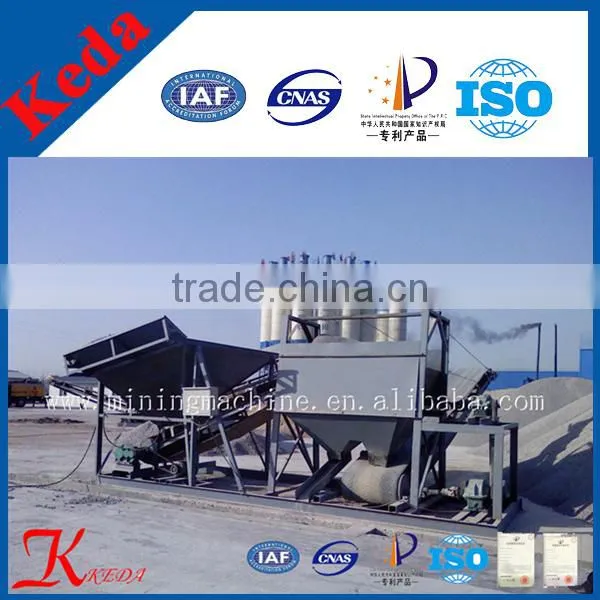

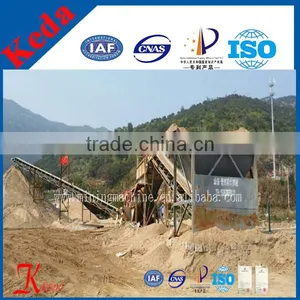

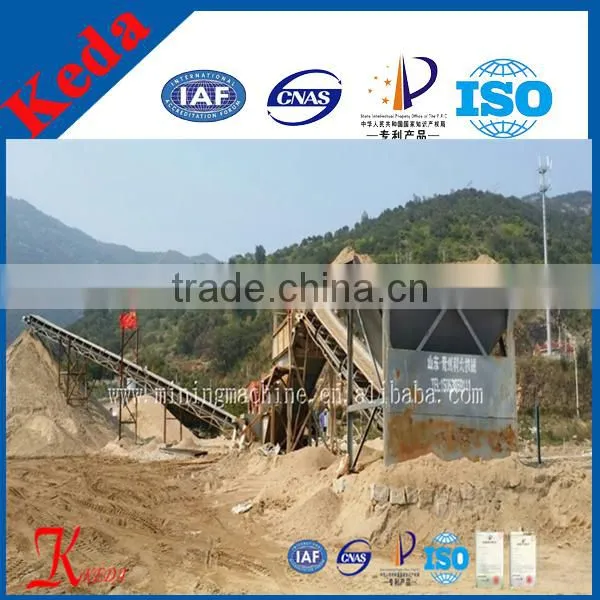

The whole process
We can add and reduce the amount of sand washer according to your situation and requests.
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
The main products of our company :
1 Gold wash plants series: the working capacity ranges from 5tons/h to 500tons/h, including wet gold wash plant used in place with water and dry gold washer used in place without water like in the desert. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
2 Dredgers series: dredgers for mining, sand production, reclamation construction, desilting, land reclamation and so on, including cutter suction dredger, jet suction dredger, bucket type dredger, aquatic weed harvester dredger, all kinds of gold dredgers.
3 Crusher series: including hammer crusher, impact crusher, Jaw crusher
4.Why choose us
1.The best quality
We are a manufacture that have a import-export operation right.Our product have passed the Internation Quality System of 9001.
2.New and rational design
We have our own engineer and special design team, which can design the suitable machine according to customer’s situation and requests.
3.Good after-sale service
Our engineers available to service machinery overseas. Meanwhile, we can train your staff for free, until they can operate the machine by themselves.The warranty time is 1 year.
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1)Working capacity(t/h)
2)What is th clay content(%)?
If you have any quuestion about our company or products, please feel free to contact with me, and i will try my best to make you satisfied.
Fergie Wu
Qingzhou Keda Mining Machine Co,.Ltd.
E-mail:sales08(at)
Skype:kedamachinery08
Tel/Fax:0086-536-2105419
Mob:0086-18353690657
Thanks for your browse!
If you want to know more,welcome to our company and contact to me,we will give you the best service.
