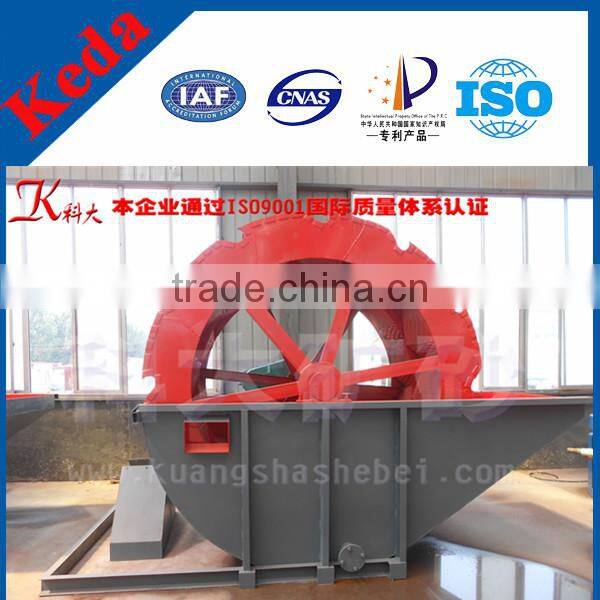

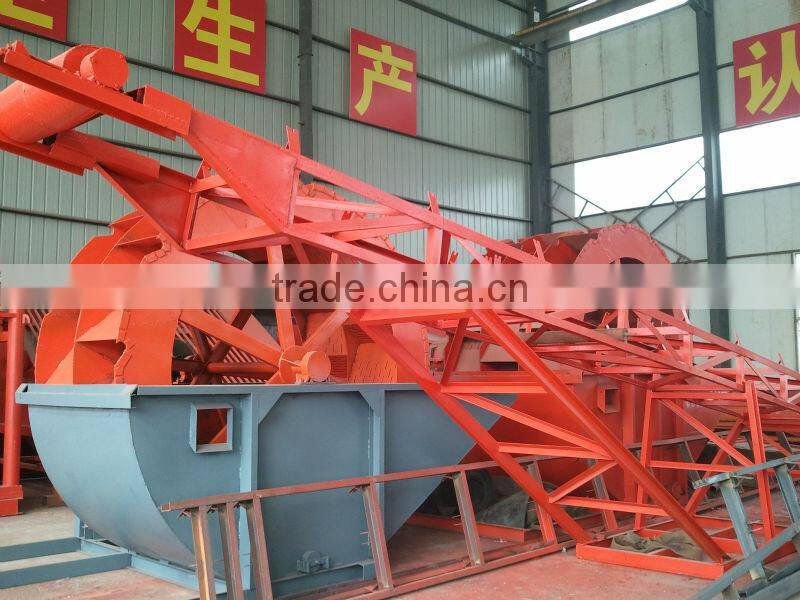

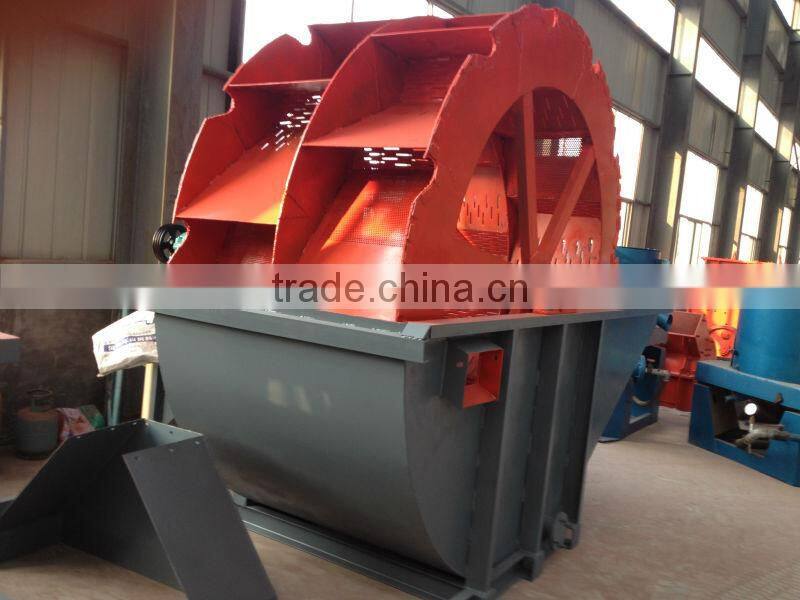

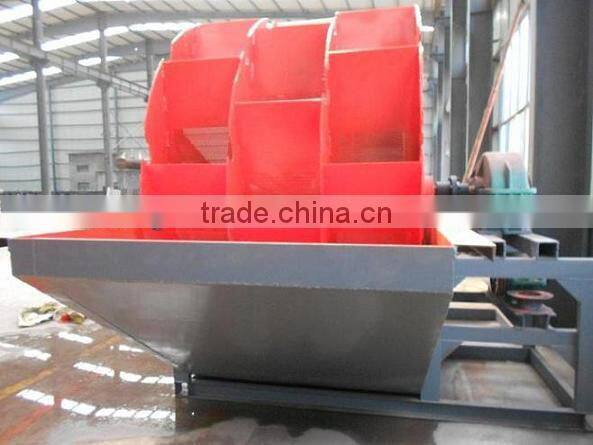

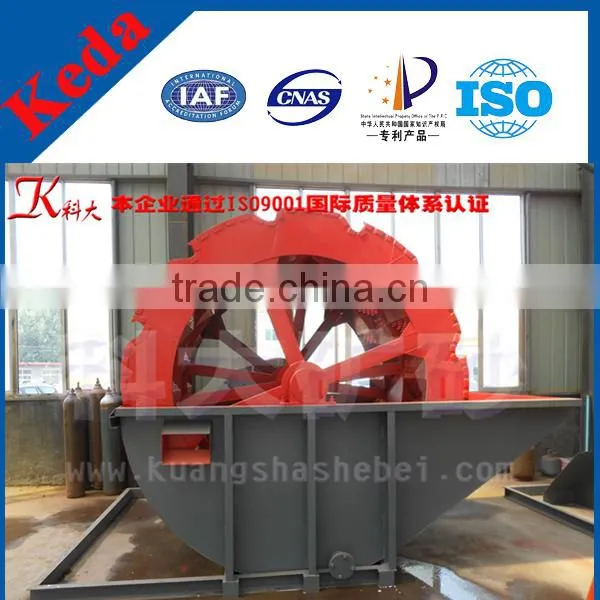

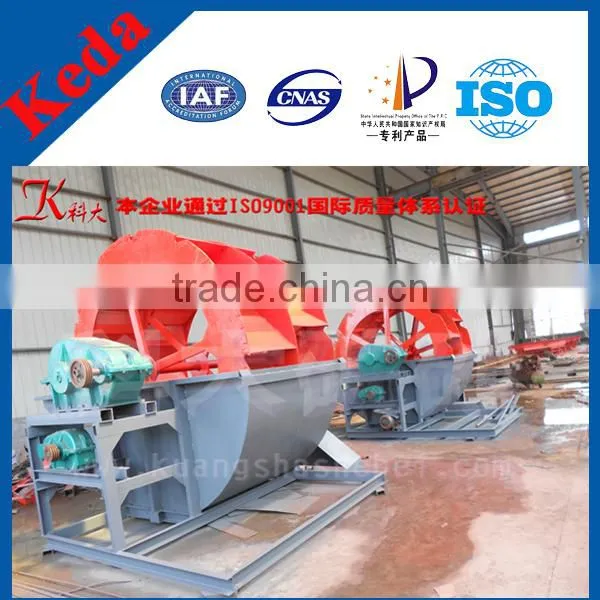

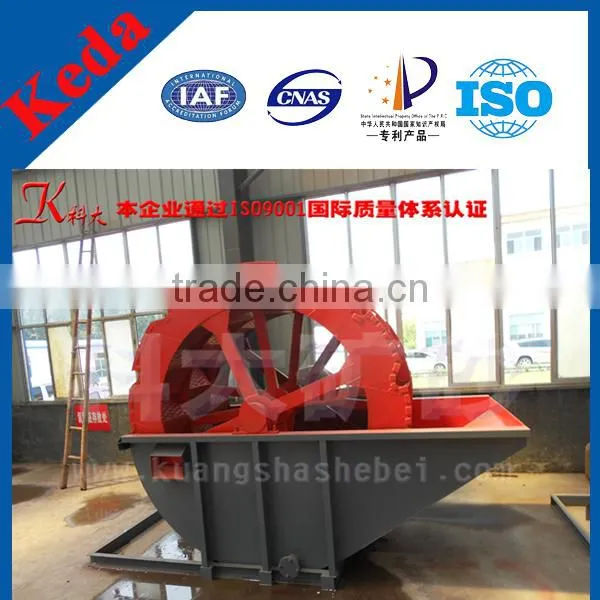

Sand washer with resonable price
1.Feature
a.The quality of washing sand is high.
b.No easy to damage.
c.Easy to operation ,one person can control it.
d.Design according to your situation and requests.
2.Basic parameters
| Basic Parameters of Sand Washer | ||||
| Type | KDSSJ12-26 | KDSSJ15-28 | KDSSJ18-30 | KDSSJ20-30 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 | 3800x3100x3100 | 3800x3400x3100 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double | φ3000x1800triplex | φ3000x2000triplex |
| Material | 8mm | 8mm | 10mm | 10mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 | 3800x1900 | 3800x2100 |
| Material | 4mm | 4mm | 5mm | 5mm |
| Working capacity m³/h | 50-60 | 80-100 | 120-150 | 150-180 |
| Max.approval grain size(mm) | ≤12 | ≤12 | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 | 15kw-4 | 18.5kw-4 |
| Submersible pump | ||||
| Power | 5.5kw | 7.5kw | 7.5kw | 5.5kw x2 |
| Clean Water Flow m³/h | 60 | 65 | 65 | 60 |
| Conveyor | ||||
| Length mm | 10000 | 10000 | 10000 | 10000 |
| Belt width mm | 600 | 800 | 1000 | 1000 |
| Frame material | 12#channel steel | 12#channel steel | 12#channel steel | 14#channel steel |
| Electromotor kw | 5.5 | 7.5 | 11 | 15 |
3.Sand washer

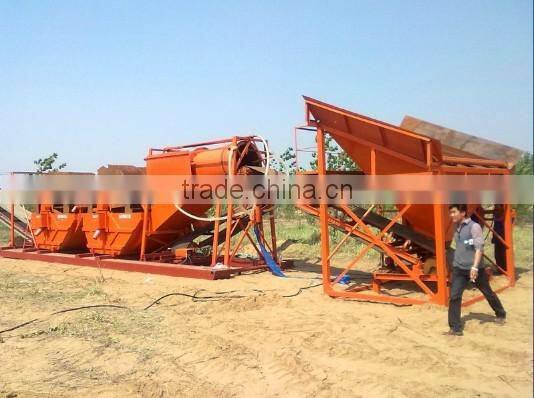

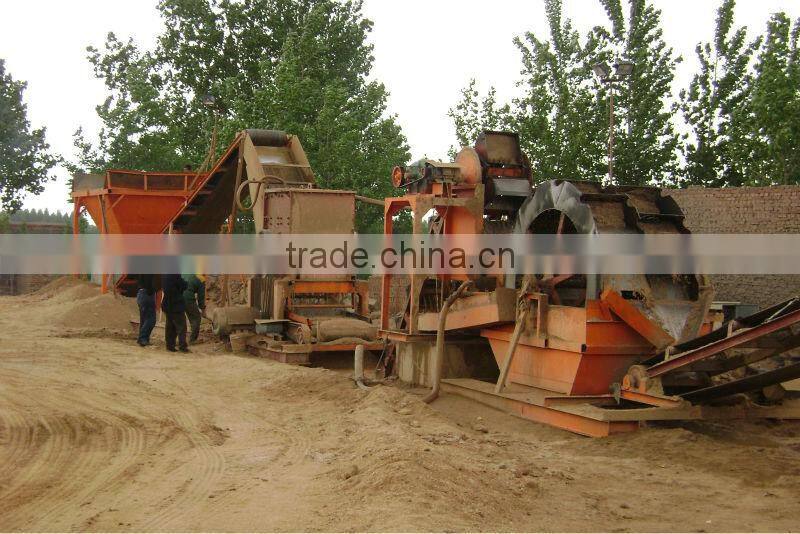

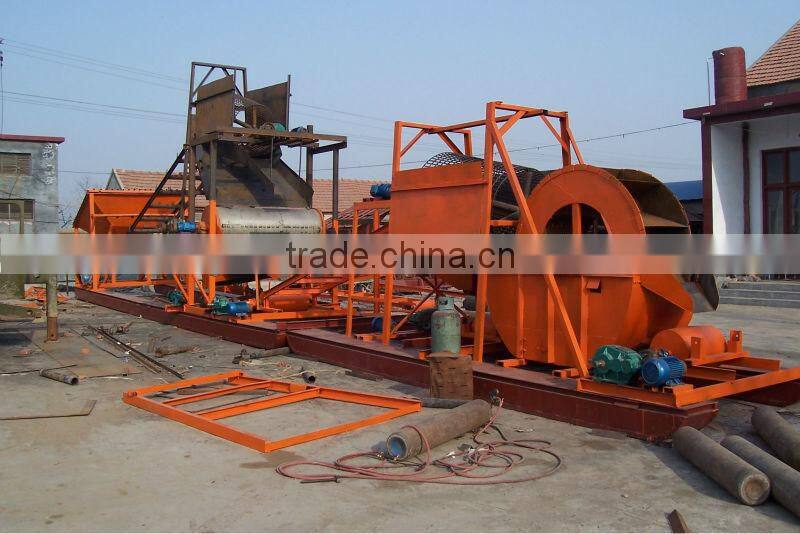

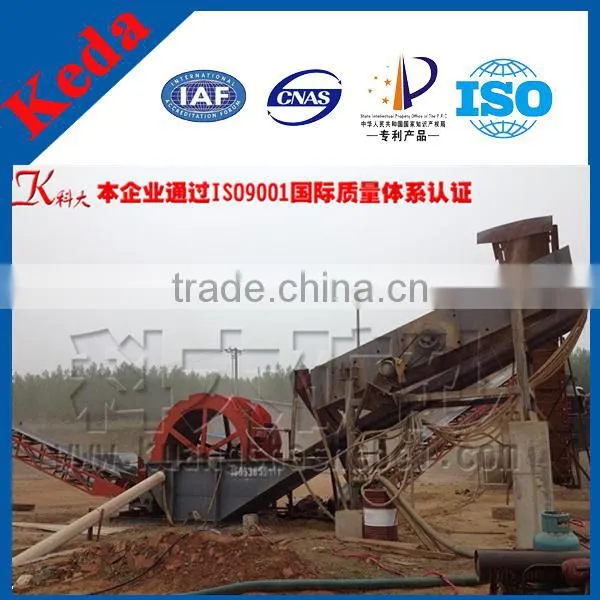

The whole process
We can add and reduce the amount of sand washer according to your situation and requests.
4.Why choose us
1.The best quality
We are a manufacture that have a import-export operation right.Our product have passed the Internation Quality System of 9001.
2.New and rational design
We have our own engineer and special design team, which can design the suitable machine according to customer’s situation and requests.
3.Good after-sale service
Our engineers available to service machinery overseas. Meanwhile, we can train your staff for free, until they can operate the machine by themselves.The warranty time is 1 year.
5.Contact to me
If you want to know more,welcome to our company and contact to me,we will give you the best service.
