Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Ore/qunying Mining Sand Washing Machine
US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, AC Motor
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Washing Machine Sand Washer for SaleUS$ 5,000 - 10,000MOQ: 1 Set -
Mining Sand Washing MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
Sand Washer With Resonable PriceUS$ 6,000 - 10,000MOQ: 1 Set
-
Silica Sand Processing Plant for SaleUS$ 6,000 - 10,000MOQ: 1 Set
-
New Sand Washer From Reliable China ManufactorUS$ 3,000 - 50,000MOQ: 1 Set
Condition
New
Type
Other, AC Motor
Place of Origin
Shandong, China
Brand Name
KD
Model Number
KDSSJ
Power(W)
11kw
Weight
1.5t
Certification
ISO9001
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Ore/qunying mining sand washing machine
1. Sand wash mining machine descriptions
1.Widely used in sand making and construction projects
2.We are a professional manufacturer specializing in dredger production and other related products including sand sieving machine
3.We can make a design according to your working condition and your other requirements
4.Don't hesitate to contact with us any time you like
2.Parameter
| Basic Parameters of Sand Washer | ||||
| Type | KDSSJ12-26 | KDSSJ15-28 | KDSSJ18-30 | KDSSJ20-30 |
| Dimension(L*W*H) | 3400x2300x2700 | 3600x2800x2900 | 3800x3100x3100 | 3800x3400x3100 |
| Water wheel dimension | φ2600x1200double row | φ2800x1500double | φ3000x1800triplex | φ3000x2000triplex |
| Material | 8mm | 8mm | 10mm | 10mm |
| Feeding hopper dimension | 3400x1300 | 3600x1600 | 3800x1900 | 3800x2100 |
| Material | 4mm | 4mm | 5mm | 5mm |
| Working capacity m³/h | 50-60 | 80-100 | 120-150 | 150-180 |
| Max.approval grain size(mm) | ≤12 | ≤12 | ≤12 | ≤12 |
| Main Power(kw) | 7.5kw-4 | 11kw-4 | 15kw-4 | 18.5kw-4 |
| Submersible pump | ||||
| Power | 5.5kw | 7.5kw | 7.5kw | 5.5kw x2 |
| Clean Water Flow m³/h | 60 | 65 | 65 | 60 |
| Conveyor | ||||
| Length mm | 10000 | 10000 | 10000 | 10000 |
| Belt width mm | 600 | 800 | 1000 | 1000 |
| Frame material | 12#channel steel | 12#channel steel | 12#channel steel | 14#channel steel |
| Electromotor kw | 5.5 | 7.5 | 11 | 15 |

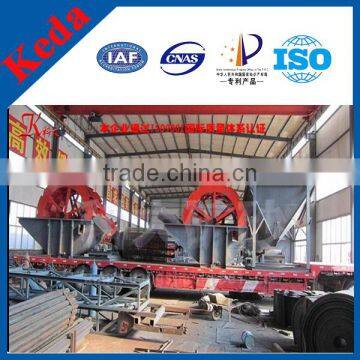

3. Sand wash mining machine
4.Fine sand recycling machine
This machine is avoid losing some fine sand when sand washing.Can recycling the tail sand.
5.Contact us
