Specifications
Small gold Washing Machine1.For small scale gold mining
2.With CE engine
3.ISO9001:2008 & patent
4.Low invest high profits

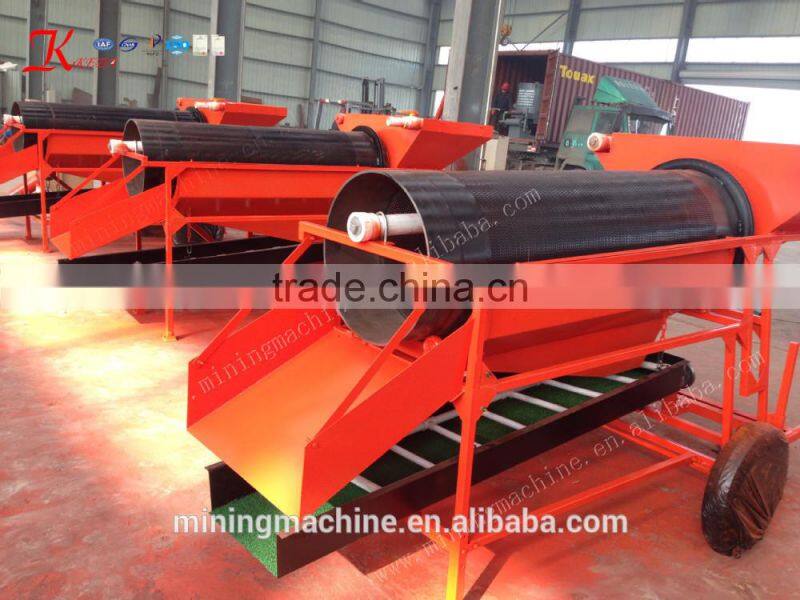

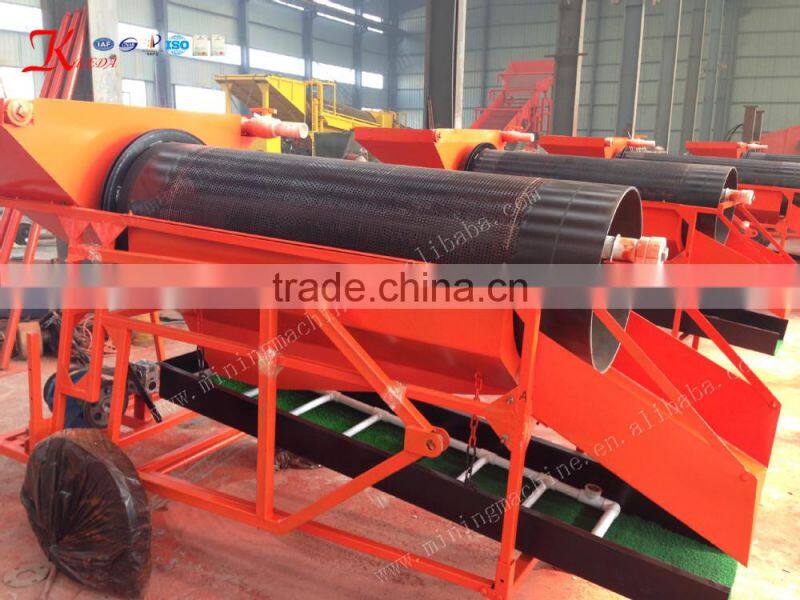

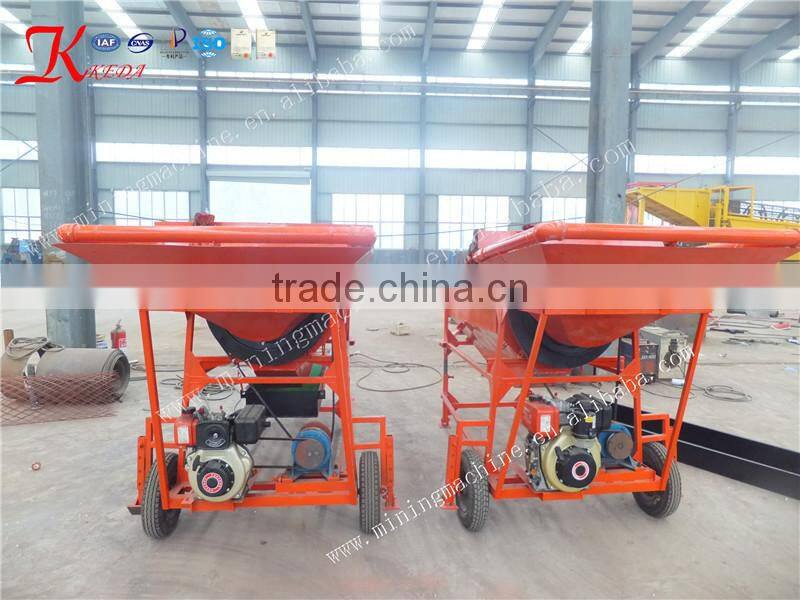

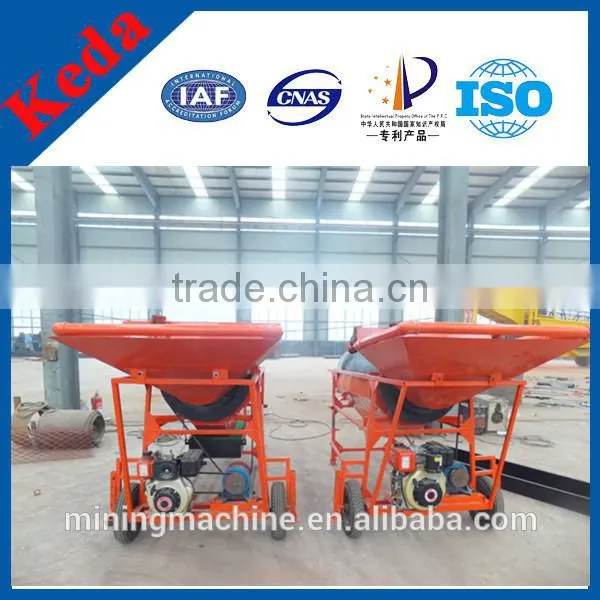

Small Gold Wash Plant With ISO Certificate and patent
1.Basic Parameter
KD-10T Gold Trommel | KD-5T Gold Trommel | |
Machine size(mm) | 2700*1200*1550 | 2280*1070*1200 |
Processing capacity | 8-10t/h | 2-5t/h |
Screen | ||
Screen size (mm) | 530*1800 | 400*1300 |
Mesh | 8mm | 8mm |
Driven type | by belt | by belt |
Diesel engine | Portable Diesel Engine | Portable Diesel Engine |
Oil Tank | 2.5L | |
Feeder hopper(mm) | 1200*810 | 1066*568 |
Gold Felt | ||
Rough gold felt | 1000*400(1pc) | 1000*400(1pc) |
Fine gold felt | 1000*400(1pc) | 1000*400(1pc) |
2.Detail Introduce
1.With patent in design and production.
2.Sluice box is stainless plate which is moreunti-wear than common material.
3.Suitable for placer gold mine or alluvial gold mine.
4.Small in size, easy to be carried by pickup

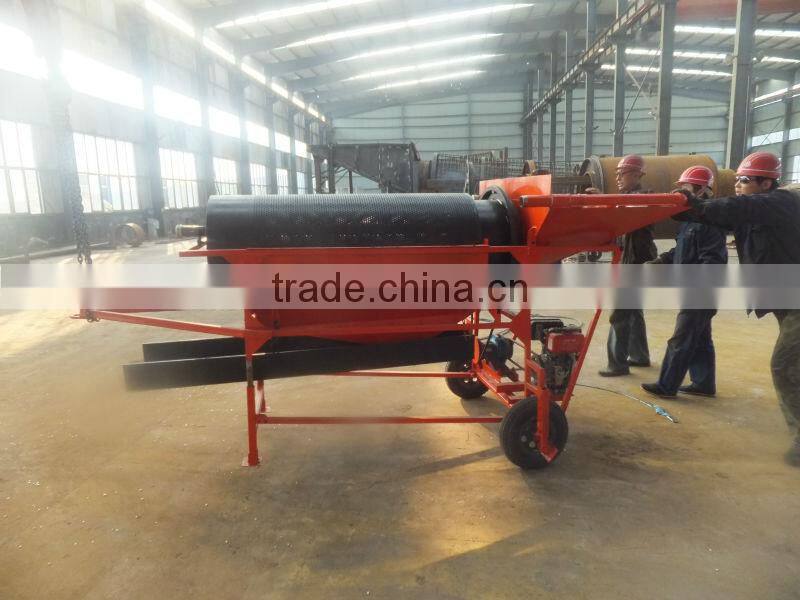

5.Move with wheel bu one person
6.Feeding by maunal,which is good to save cost.

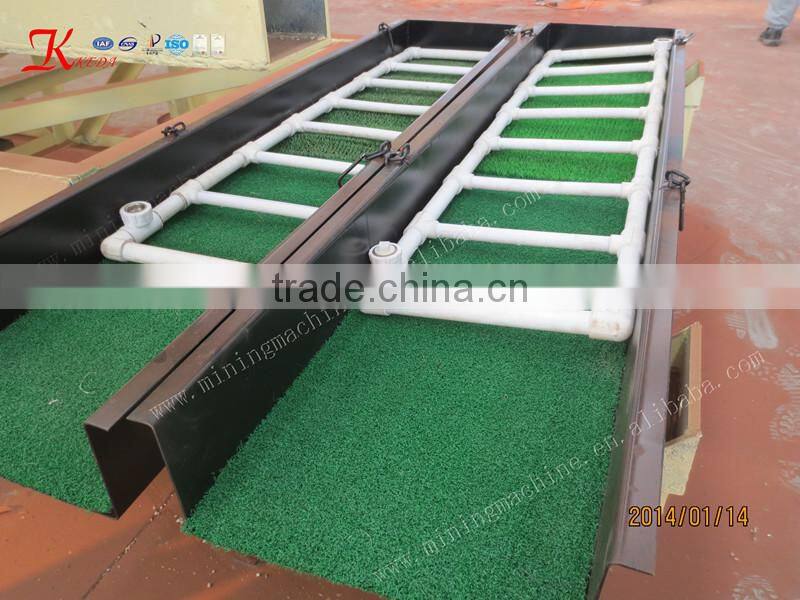

7.With gold felt, is good to improve recovery rate.
8.With famous CE engine.
9.With has rich exported experience, such as Ghana,Sudan, USA and so on.

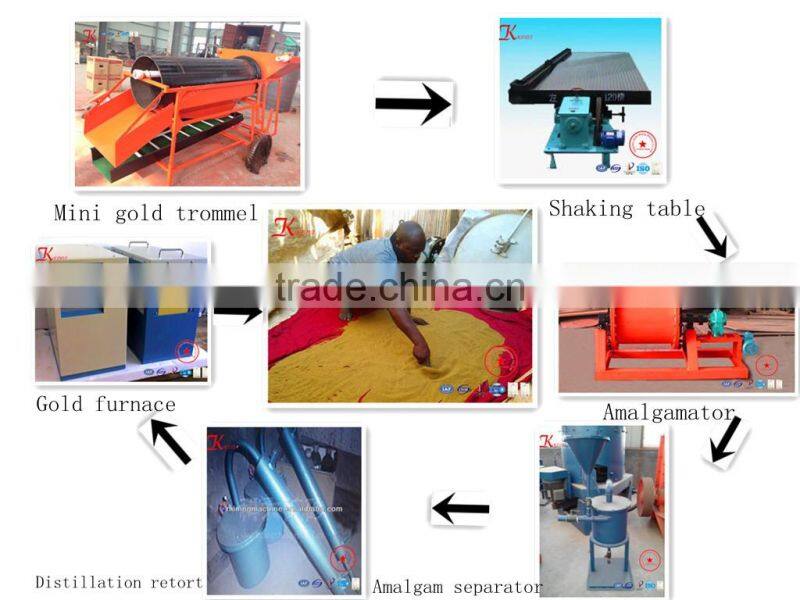

Gold choosing process: we can also provide the other equipment you need

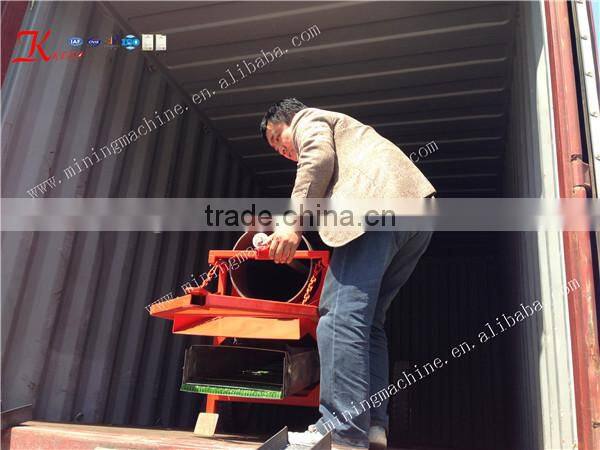

Can be shipped in container or as client's request.
Qingzhou Keda ore machinery Co.,LTD. is a professional ore machine manufacturer,which is professional to produce mining equipment with ISO9001:2008 and patent. Professional production equipment, sand-excavating pumping iron chosen sand equipment, bait-casting equipment, washing sand gold sand equipment, equipment manufacturing, magnetic separators, crushing machine, etc, and a hundres dozens of products.
1.Rational and practical design according to customers' request proved.
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support,phone calls or on-sit support 24 hours.
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1). The working capacity(tons/h)
2). The content of mud in your mine(%)
If you have any question about our products or company, please let us know, we will try our best to make you satisfied.
