Specifications
Placer Gold Washing Plant with PATENT1.ISO9001:2008&PATENT
2.Diesel power
3.With Wheel
4.Easy operation,labor saving
New Condition Placer Gold Mine Machine With Patent
1.Placer Gold Wahing Plant With Patent,Feature

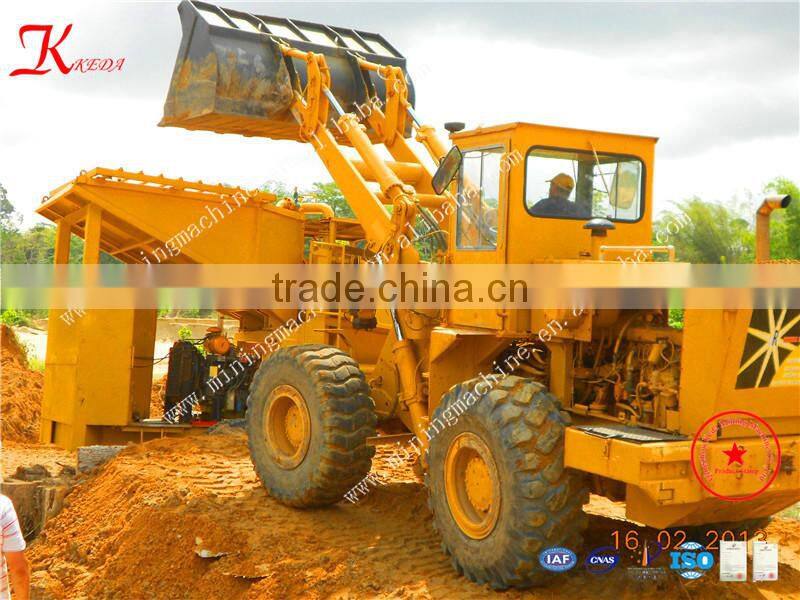

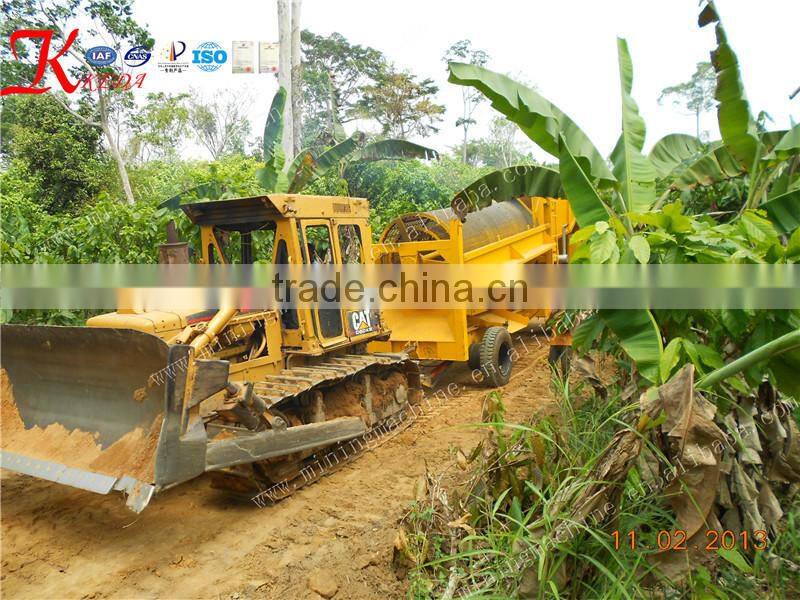

a.Easy to move ,can be dragged by wheel loader or excavators.
b. Unique screen design, result in higher capacities, longer screen life and no material clogging
c. Gold Recovery rate can be more than 90%
d. We will design the placer gold washing plant according to your situation and requires.
2.Placer Gold Washing Plant With Patent, Basic Parameter
Model |
YDTL-50 |
HATJ-100 |
HATJ-200 |
Performance |
|
|
|
Dimension(L*W*H)(mm) |
7000*2000*3000 |
8300*2400*4700 |
9800*3000*5175 |
Processing capacity (t/h) |
50-100 |
100-150 |
200-300 |
Main Power |
|
|
|
Power(kw) |
24 |
50 |
75 |
Feeder hopper |
|
|
|
Size (L*W*H) |
2000*2200mm |
3000*2200mm |
3800*3000mm |
Gold chutes with carpet |
|
|
|
Size (W*L) |
1000*2000mm |
1000*6000mm |
1000*6000mm |
Quantity |
2 |
2 |
3 |
Water system |
|
|
|
Pump power(kw) |
7.5 |
30 |
45 |
Optional equipment | |||
Wheel, Grizzly, conveyor, shaking chute , centrifugal machine etc. | |||
3.Placer Gold Washing Plant With Patent, Detail Introduce

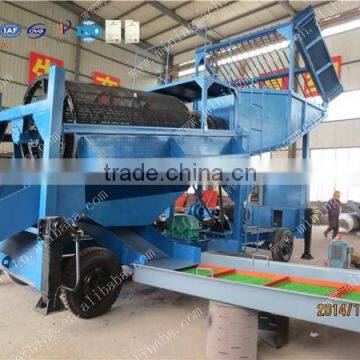

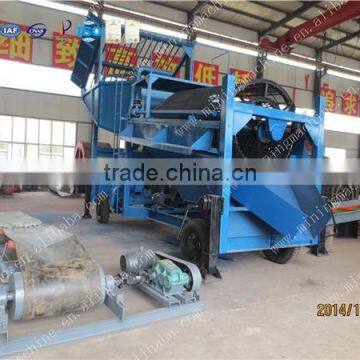

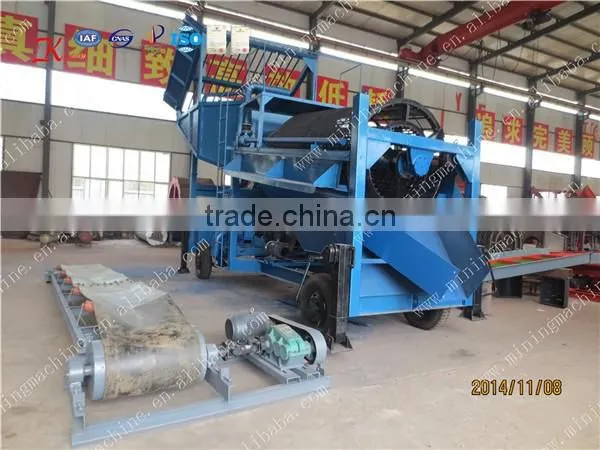

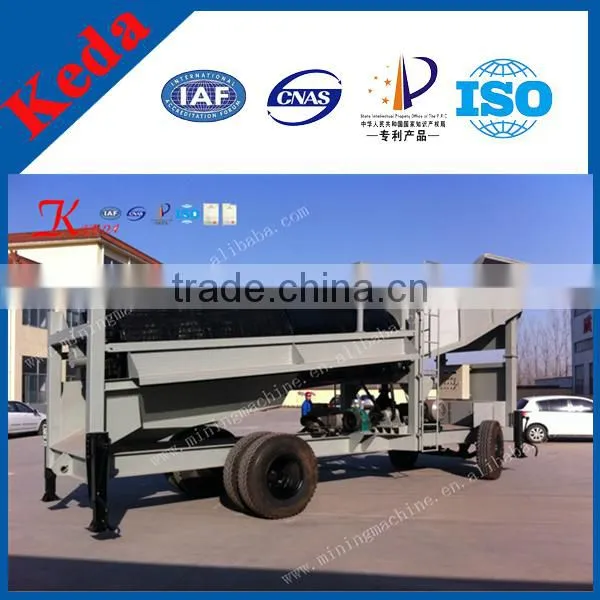

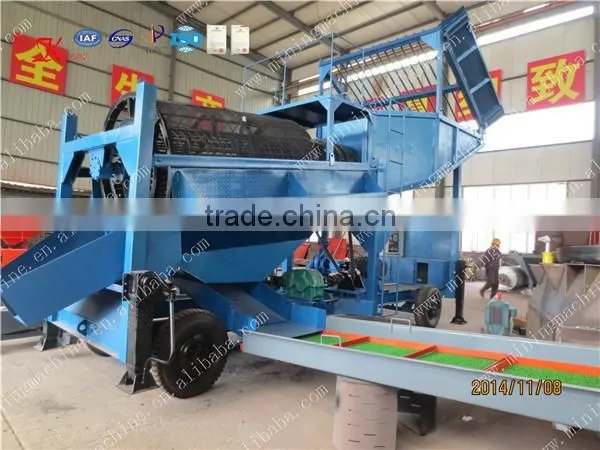

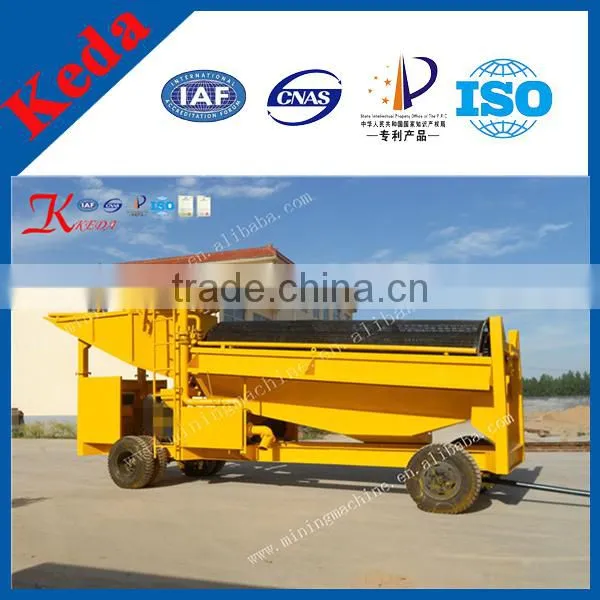

Placer Gold Washing Plant is a kind of combined gold mining machine , designed especially for placer gold mine which is contained in the raw material, includes sieving, separating through trammel, sluice and extraction gold progress. It is with wheel type chassis, can be driven by vehicles and move easily.
Choose placer gold washing equipment can also according to the situation of ore body with fixed chute, shaking chute or centrifugal concentrator, shaking table,Amalgamator,gold furnace and so on.

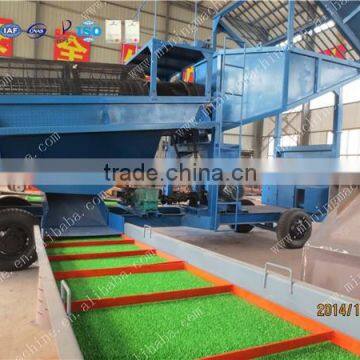

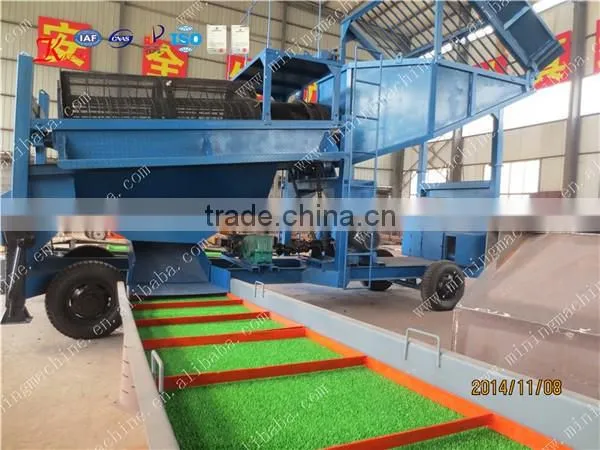

Fixed chute with gold felt
Centrifugal concentrator
KDTJ type centrifugal concentrator is a kind of centrifugal separation equipment, it is gold, sand monomer gold in the mine and a variety of other metal recycling.

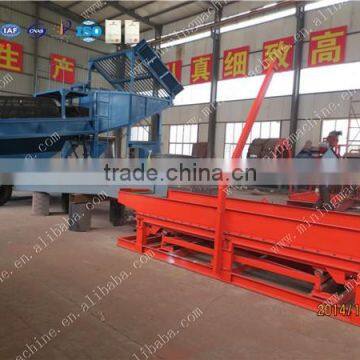

Shaking chute
1). Equipment maximum capacity of 50-60 tons per hour.
2). The equipment has simple structure, low maintenance.
Shaking table
Amalgamator
Gold Furnace
4.Placer Gold Washing Plant With Patent,Shipping
5.Placer Gold Washing Plant With Patent,Guarantee and after-sale service
1).1 year warranty for import parts.
2).Profession technology provide installation,commissioning services.
3).24 hours technical support by e-mail or telephone
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufaurer has this patent in China.
The company covers an area of more about 10,000 square meters. Nice product comes from excellent teamwork. Currently there are 120 stafves, including 6 senior engineers, 10 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
All the products in our company has passed ISO9001:2008,and the gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufaurer has this patent in China.
5.Other information
Could you kindly tell me the following questions in your enquiry:
1.The working capacity that you want to get(tons/h)
2.The content of mud in your mine(%)
3.Any big stone in the mine? Max.size(mm)
It is appreciate that i can assist you to get a suitable machine.
6.Contact to me
Fergie Wu
Qingzhou Keda Mining Machine Co,.Ltd.
E-mail:sales08(at)
Skype:kedamachinery08
Tel/Fax:0086-536-2105419
Mob:0086-18353690657
