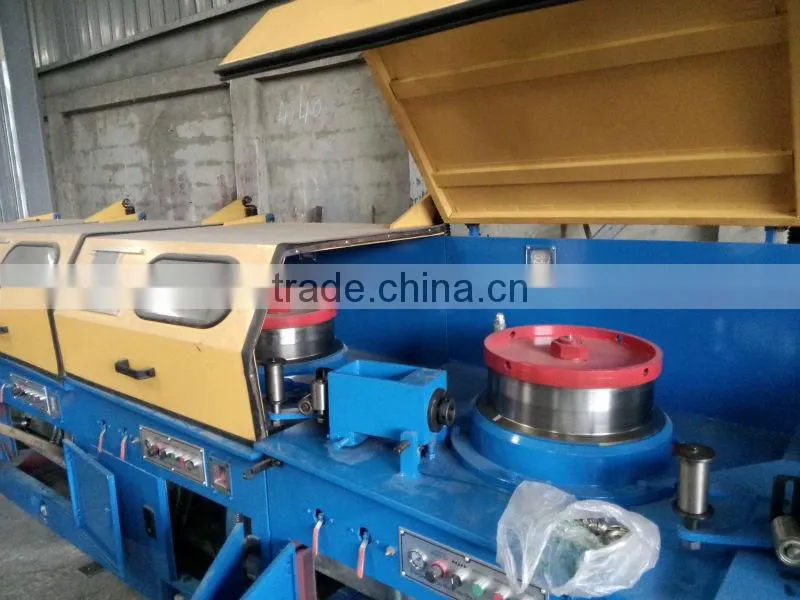

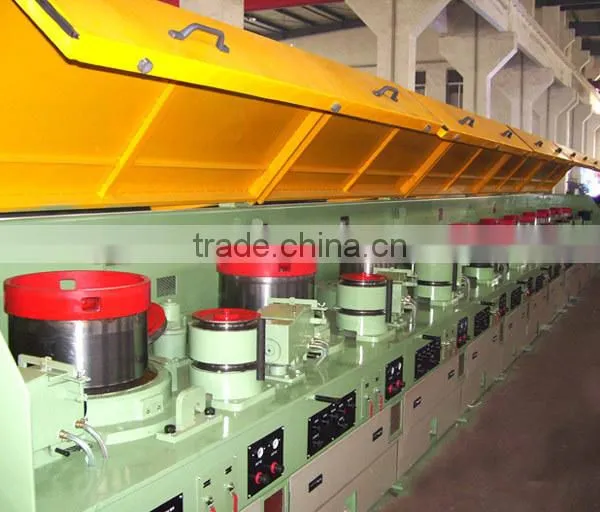

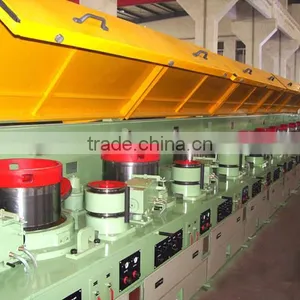

Alloy Steel Wire Drawing Machine
US$ 40,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
2.0-10MM
Outlet Diameter:
0.05~6.5MM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire Straightening and Cutting MachineUS$ 1,500 - 5,500MOQ: 1 Set -
High Speed Good Quality Continous Wire Drawing MachineUS$ 60,000 - 60,000MOQ: 1 Set
-
Accumulation Type Wire Drawing MachineUS$ 45,000 - 45,000MOQ: 1 Set
-
Alloy Wire Drawing MachineUS$ 50,000 - 100,000MOQ: 1 Set
-
Big Block Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
Inlet Diameter
2.0-10MM
Outlet Diameter
0.05~6.5MM
Place of Origin
Jiangsu, China
Brand Name
WANYI
Model Number
LZ
Voltage
380V
Power(W)
22X8KW
Dimension(L*W*H)
7.5X1.45X1.45M
Weight
9000KG
Certification
CE and ISO9001:2008
Warranty
one year freely since shipment date
After-sales Service Provided
Engineers available to service machinery overseas
technical parameter for LZ series wire drawing machine
|
Specs (mm) |
No. Of Drafts |
Max. Inlet wire (mm) |
Min. Outlet wire (mm) |
Motor Power (KW) |
Max. Speed (m/s) |
Noise dB(A) |
Φ250 |
9-12 |
1.8 |
0.35 |
2.2-4 |
12 |
80-82 |
Φ350 |
6-12 |
3.5 |
0.6 |
7.5-11 |
20 |
80-82 |
Φ400 |
6-12 |
4.2 |
0.75 |
11-15 |
20 |
80-82 |
Φ450 |
6-12 |
4.6 |
0.85 |
15-22 |
18 |
80-82 |
Φ500 |
6-12 |
5.5 |
1.0 |
22-37 |
18 |
80-82 |
Φ560 |
6-12 |
6.5 |
1.3 |
22-45 |
18 |
80-82 |
Φ600 |
5-10 |
7.0 |
1.8 |
37-55 |
16 |
80-82 |
Φ700 |
4-9 |
8.0 |
2.4 |
45-75 |
12 |
80-82 |
Φ800 |
4-9 |
10 |
2.8 |
55-90 |
10 |
80-82 |
Φ900 |
4-9 |
14 |
3.5 |
75-132 |
8 |
80-82 |
