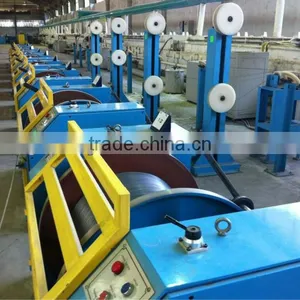

Product Name: Straight line wire drawing machine
Business Type: Manufacturer
Number Of Employees: 100-200 people
Place Of Origin: Jiangsu China
Port: Shanghai OR your needs
Delivery Time: 90 days
Package: according to your requests
Feature: Applicable for continuous drawing and PLC control of frequency transformer drive of high/medium/low carbon steel/alloy steel/stainless steel.
Main technical parameter:
specification | LZ200,LZ 350,LZ 400,LZ450,LZ500,LZ560,LZ600,LZ700 |
Capstan diameter | 200, 350, 400, 450, 500, 560, 600 , 700 |
Drafts | 2-12 |
Max. inlet diameter(mm) | 10 |
Min. outlet diameter(mm) | 0.2 |
speed | According to customers’ requirements |
power | 7.5-90 KW |
capstan | Material is cast steel, coated with tungsten carbide. Surface hardness reaches 60-62HRC. Abrasive resistance is very good. |
Drive system | Adopt 1st or 2nd grade strong narrow V belt; 1st grade strong narrow V belt+ 1st grade hard tooth surface wheel gear with little noise; 1st grade strong narrow V belt+ 1st grade hard tooth surface wheel gear |
Dies case | Water cooling, reasonable installation, can be adjusted up and down, equipped with special device press the button. |
