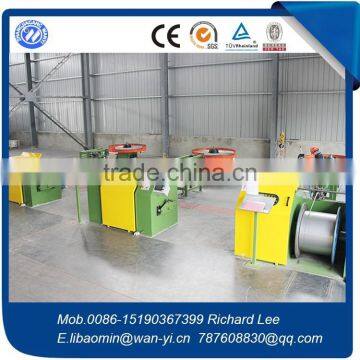

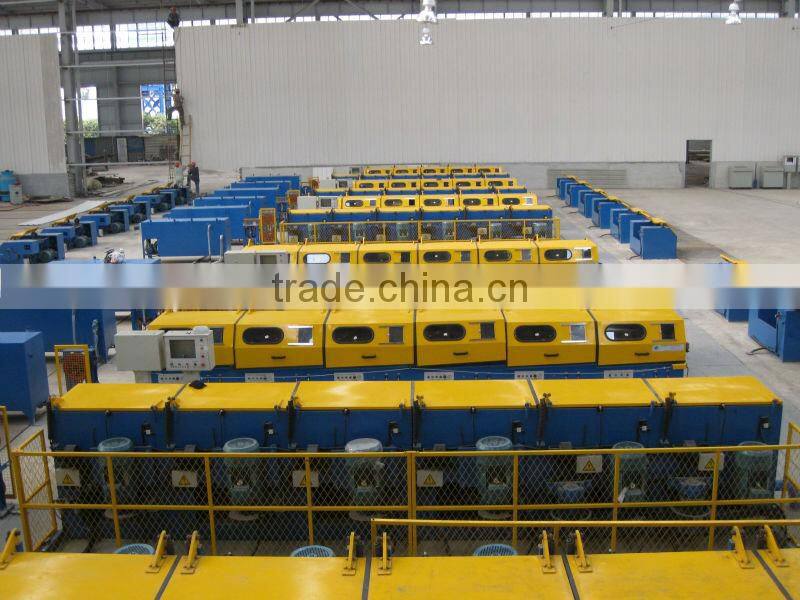

Help CenterLow Carbon High Carbon Straight Line Wire Drawing Machine
Related Products
-
Tyre Bead Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set -
Chinese Wire Drawing Machine ManufacturerUS$ 20,000 - 70,000MOQ: 1 Set
-
Customized Cost Performance Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
-
Wire Drawing Machine Manufacturing ExpertUS$ 20,000 - 60,000MOQ: 1 Set
-
Straight Line Continous Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
1. We have gotten ISO9001:2008 standard and certificate
2. Company established year: 2000Y
3. Company location:Zhangjiagang City, 125km away from Shanghai
4. FOB port: Shanghai
5. Business type: Manufacturer
6. Number of employees: 100-200
7. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi
Features Applicable for continuous drawing;
Material: High/medium/low carbon steel wire, alloy steel wire, stainless steel wire
PLC control, automatic
Could provide pay-off & take-up machine
Could provide pre-treatment machines(Mechanical descaler, pickling, boron coating)
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
(7) Large space occupation.
The straight line drawing machine applies advanced international technology, with digestion and absorption, the drawing machine is applicable for high intensity and performance demand. It mainly applied for the production of steel curtain wire, tyre steel wire, steel wire for rope, spring steel wire, stainless steel wire, gas welding wire, arc welding wire, etc. The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm
-------------------------------------------------------------
Main Technical Parameters
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
