Low Carbon Wire Drawing Machine

Low Carbon Wire Drawing Machine thumbnail-1
Low Carbon Wire Drawing Machine thumbnail-2
Low Carbon Wire Drawing Machine thumbnail-3
Low Carbon Wire Drawing Machine photo-1
Low Carbon Wire Drawing Machine photo-2
Low Carbon Wire Drawing Machine photo-3
US$ 50,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
wanyi
Model Number:
LZ600 straight line drawing machine
Contact Supplier Request Quote Chat Now
Zhangjiagang City Wanyi Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or your needs
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number LZ600 straight line drawing machine
Usage Drawing

low carbon wire drawing machinelow carbon wire drawing machinelow carbon wire drawing machinelow carbon wire drawing machinelow carbon wire drawing machinelow carbon wire drawing machinefully automatically,low noise.good allocation.it can draw carbon wire,flux-cored wire,CO2 wire,s.s wire and so on.

.Equipment constituter(1) up-draft pay-off rack

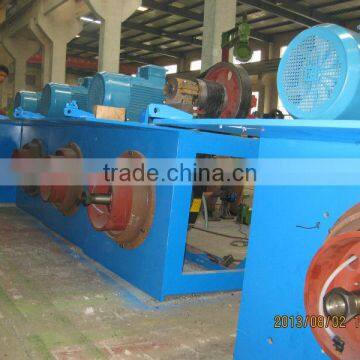

                    (2)LZ7/600 straight line drawing machine

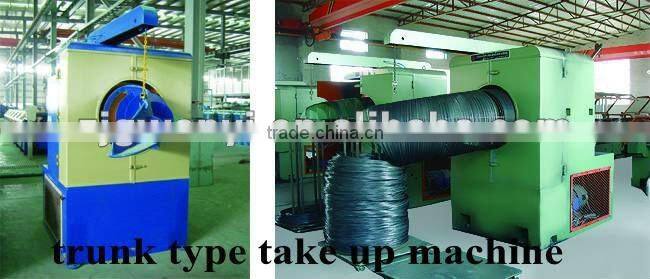

                    (3)600 trunk type take up machine

                     (4 ) human machine interface display screen

                     (5) Whole set of electrical appliance control cabinet

2. Work areas (1) input diameter 6.0 or 5.5 mm

              (2)input strength 500Mpa or less

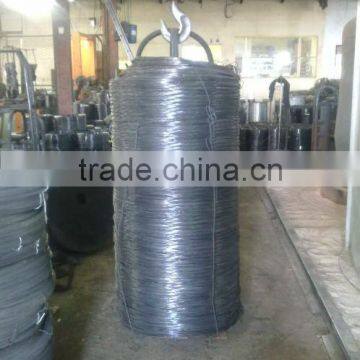

              (3) input material black anneal wire

              (4) output diameter 2.0--2.4mm

3. Drawing speed: (1) max10m/s   (2) average: 8m/s with output 8.5t/d (10h per day)

4. Water- air pressure (1) hydraulic pressure 0.2Mpa (2) barometric pressure>0.5Mpa

5. Electric motor standard (1)drawing machine 22KW  AC motor

                    (2) wire coiling machine 15KW  AC motor

6. Reel form(1) diameter 600mm

           (2) Material ZG45 steel, surface spray finishing with carbonized tungsten alloy powder, hardness more than HRC60, surface roughness concentration less than 1.6Ra

           (3) Service life 10000h

7. Reel cooling(1) inside small clearance space water cooling

             (2) outside forced air cooling, quickly cool the wire surface

8. Stander form (1) main stander with steel structure welding

           (2) Water, electric and gas operation board and meter to trig urgently

           (3) Painted in blue or up to client

           (4) With safety shield, can prevent the powder from smelling out.

low carbon wire drawing machinelow carbon wire drawing machinelow carbon wire drawing machinelow carbon wire drawing machine
