.Equipment constituter: (1) up-draft pay-off rack

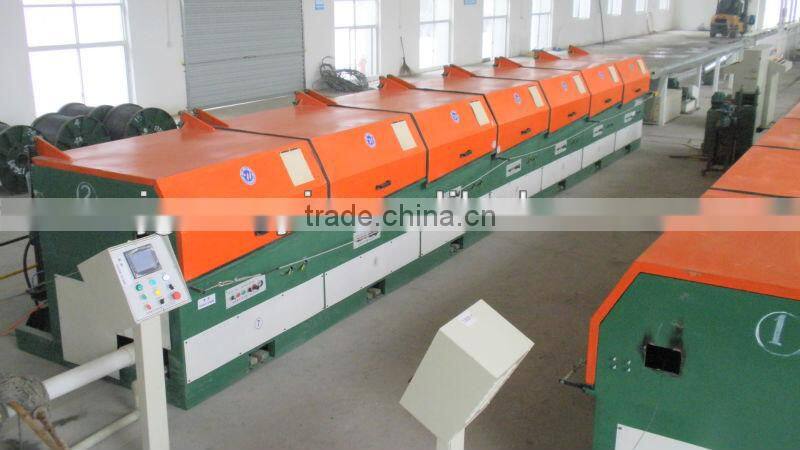

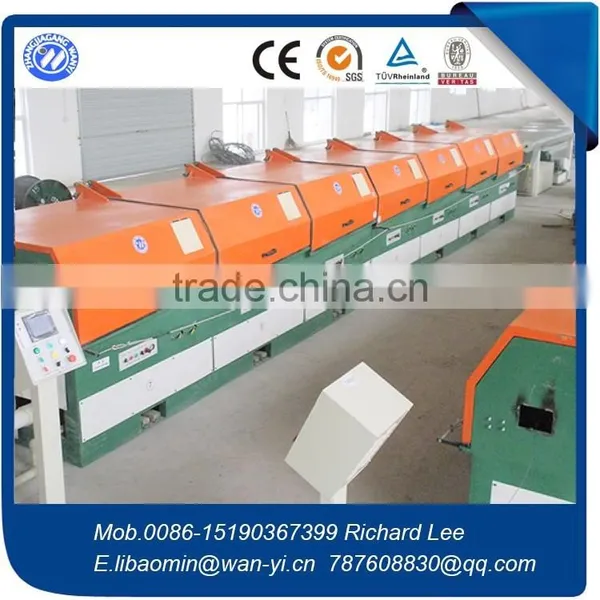

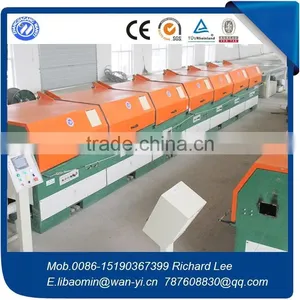

(2)LZ7/600 straight line drawing machine
(3)600 trunk type take up machine
(4 ) human machine interface display screen
(5) Whole set of electrical appliance control cabinet
2. Work areas: (1) input diameter 6.0 or 5.5 mm
(2)input strength 500Mpa or less
(3) input material black anneal wire,high carbon wire
(4) output diameter 2.0--2.4mm
3. Drawing speed: (1) max10m/s (2) average: 8m/s with output 8.5t/d (10h per day)
4. Water- air pressure: (1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa
5. Electric motor standard: (1)drawing machine: 22KW AC motor
(2) wire coiling machine: 15KW AC motor
6. Reel form: (1) diameter: 600mm
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can design the wire drawing machine according to customers' requirement..
