Spring Steel Wire Drawing Machine

Name: Spring Steel Wire Drawing Machine
Brand: wanyi
SKU: 141299956
Availability: InStock

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Jiangsu, China

Zhangjiagang City Wanyi Machine Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or as u need

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Jiangsu, China

Brand Name wanyi

Model Number straight line

Voltage 220/380V

Power(W) 3-37kw

Dimension(L*W*H) 8000X1560X1500MM

Weight 10T

Certification THIRD PARTS

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

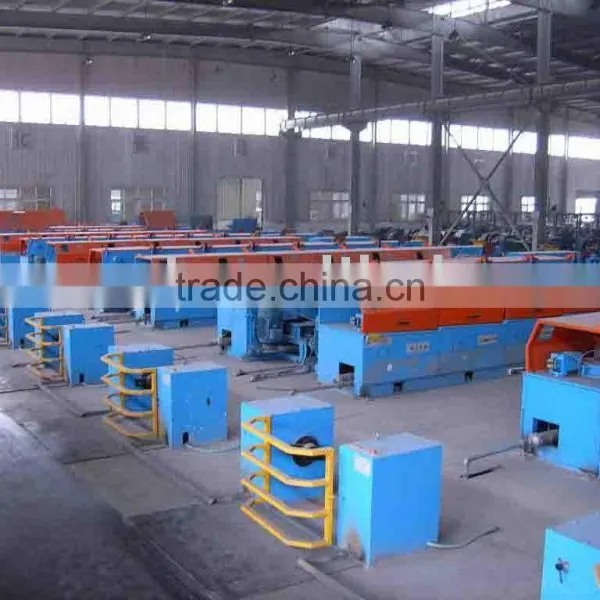

high carbon wire drawing machine line 6.5-1.0mm

Sr.	Name	Unit	Data
1	Drawing machine name		LZ7/600 LZ10/400
2	Drawing machine and pull mode		Straight line tuning type
3	Draft number		17
4	Coil diameter	mm	Φ600 φ400
5	Speed adjustable mode		AC freq. Con. Speed Adjustable
6	Motor power	KW	7×30 10×15
7	Wire-in diameter	mm	Maxφ6.5
8	End product diameter	mm	min Φ1.0
9	Average compression	%	≤21%
10	Design drawing speed	m/s	max18(light load high speed, heavy load low speed)
11	Control mode		Fully digital
12	Logical control		PLC
13	Wire-in strength	MPa	≤1250
14	Carbon content in material		Carbon spring wire steel, high or low carbon steel
15	Drum cooling		Self contaminant release narrow seam type water cooling + outer ring type fan cooling.
16	Die box		Direct water cooling
17	Cooling water pressure		0.2~0.3Mpa
18	Pneumatic system		Air pressure≥0.5Mpa
19	Stop time	S	Normal stop≤50s,EMG stop≤5s
20	Pay-off mode		In-line turning pay-off machine
21	Take-in mode		Trunk pay-off machine (with small compression rate drawing)or I-type take-in coil
22	Total length of production line	M	60.8(as per in-line turning payoff machine)
