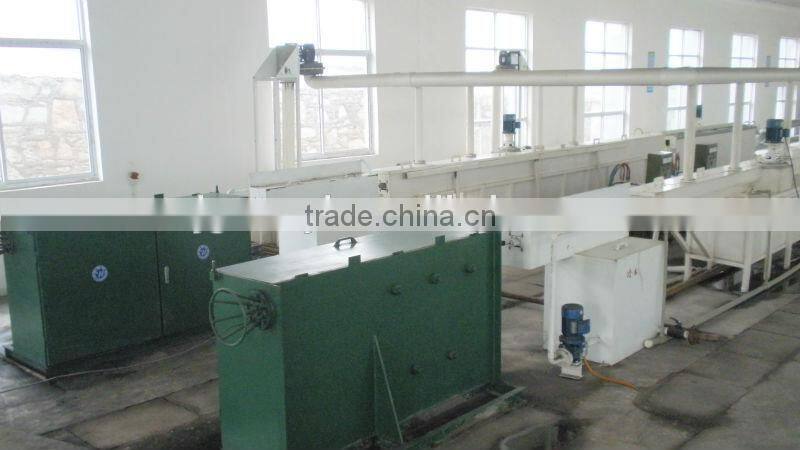

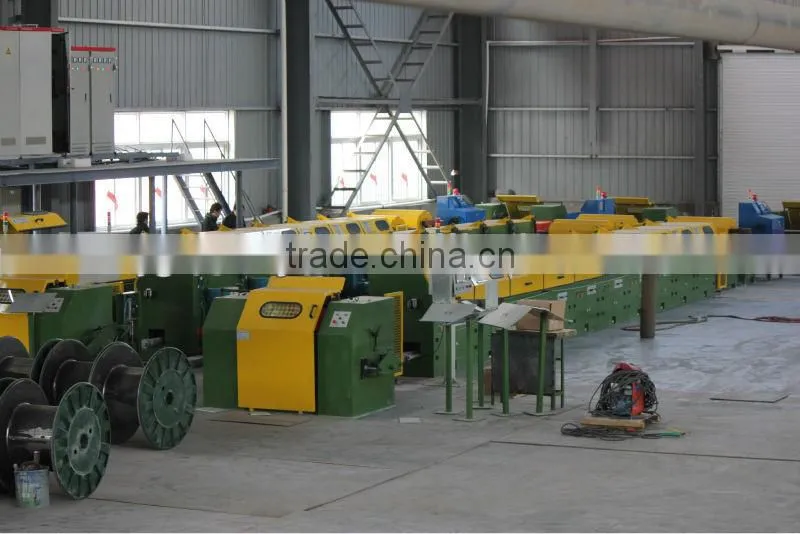

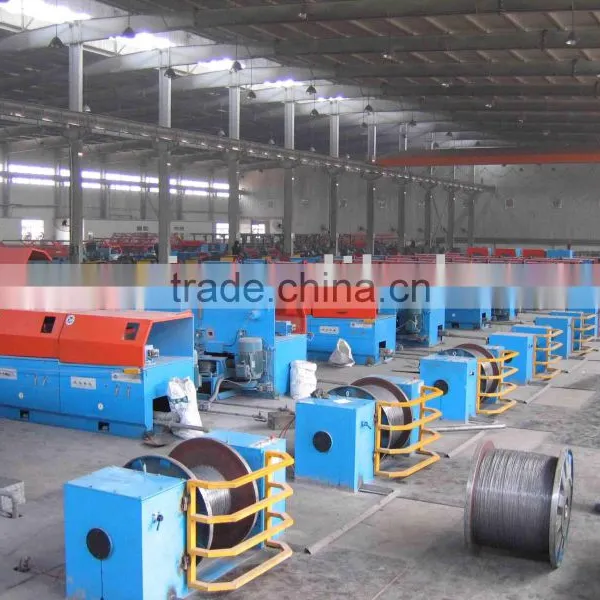

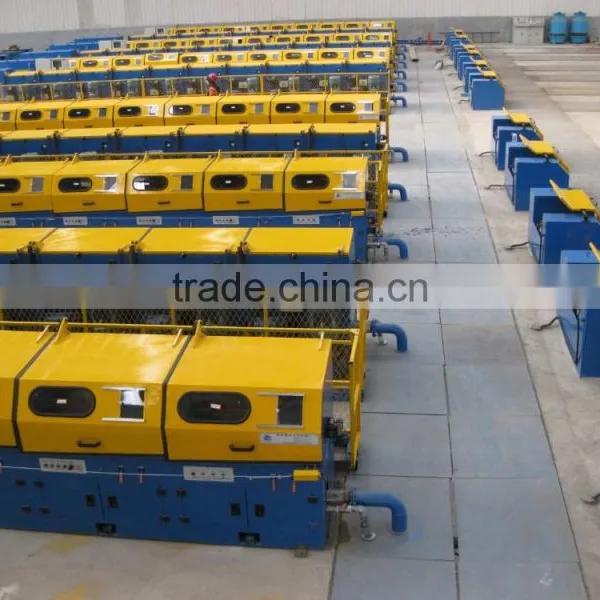

high carbon steel wire production line
1, the equipment components:
(1) LZ9/560 Straight wire drawing machine
(2) rack installation tension
(3) Take-machine trunk type (or SG800 spool take-up machine)
(4) human-machine interface with touch screen control console
(5) set of electrical control cabinet
2, the main technical parameters and key points:
(1) into the line of maximum intensity: ≤ 450MPa
(2) Max diameter: diameter 6.5mm
(3) into the line of minimum diameter: 2mm
(4) The maximum compression ratio: 92.5%
(5) The maximum drawing speed: 16m / s
Normal drawing speed: 10m / s (used the word wheel close-ray machine can make the speed of 16 m / s)
(6) water and pressure: 8m3 / h Pressure ≥ 0.25MPa
(7) gas consumption and pressure: 2.0m3 / h Pressure ≥ 0.6MPa
(8) Motor:
Host: The first head rest 22KW 30KW AC variable frequency motor.
Take-up machine: 15KW AC inverter motor
