Vertical Type Wire Drawing Machine

Zhangjiagang City Wanyi Machine Factory
Vertical Type Wire Drawing Machine thumbnail-1
Vertical Type Wire Drawing Machine thumbnail-2
Vertical Type Wire Drawing Machine thumbnail-3
Vertical Type Wire Drawing Machine thumbnail-4
Vertical Type Wire Drawing Machine thumbnail-5
Vertical Type Wire Drawing Machine thumbnail-6
Vertical Type Wire Drawing Machine photo-1
Vertical Type Wire Drawing Machine photo-2
Vertical Type Wire Drawing Machine photo-3
Vertical Type Wire Drawing Machine photo-4
Vertical Type Wire Drawing Machine photo-5
Vertical Type Wire Drawing Machine photo-6
US$ 20,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number LZ8/600
Voltage 380v
Power(W) 7.5-120KW
Dimension(L*W*H) 8000X1560X1560mm
Weight 7000kg
Certification third parts
Warranty one year freely
After-sales Service Provided Overseas service center available

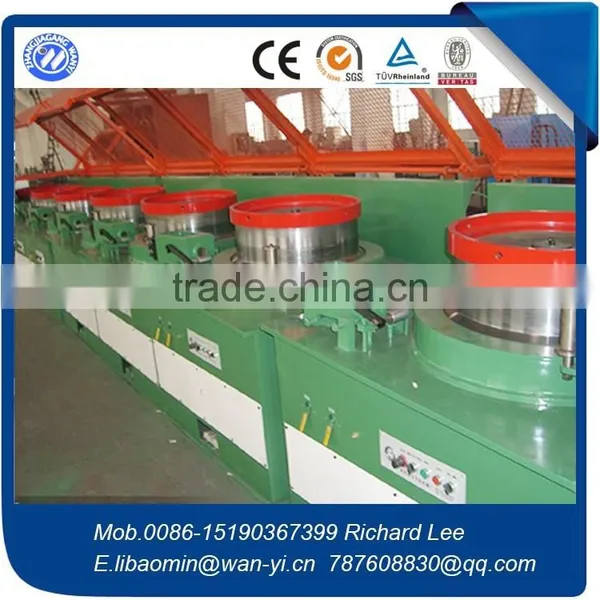

vertical type wire drawing machinevertical type wire drawing machine

vertical type wire drawing machinevertical type wire drawing machineStraight wire drawing machine



1.       The material  of the inlet wire:high carbon steel wire

2.       The max  strength of the inlet wire: 600Mpa

3.       Max diameter of the inlet wire:Ø7.5mm

4.       The outlet wire diameter: Ø1.8mm

5.       Max speed:400m/min

6.       The amount of water-use and  water pressure:3m³/h       pressure:≥0.3Mpa

7.       The amount of  air-use and air- pressure :0.6 m³/h        pressure: :≥0.5Mpa

8.       The Motor of the drawing machine: 37KW adjustable frequency motor.
