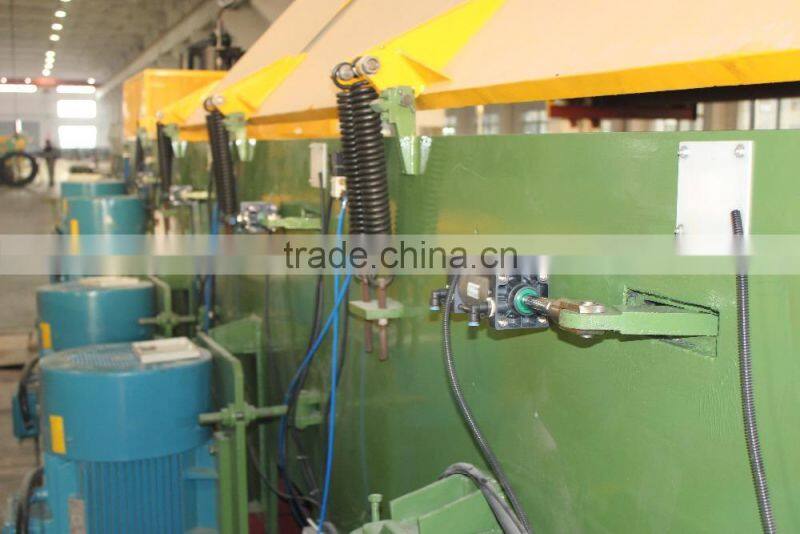

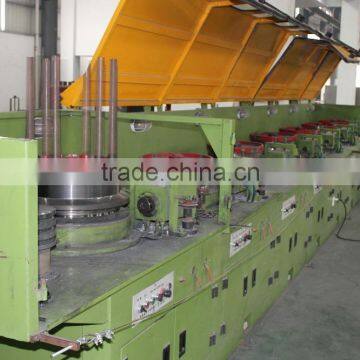

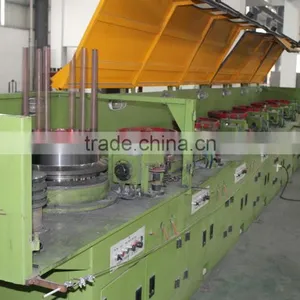

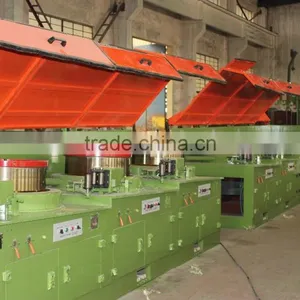

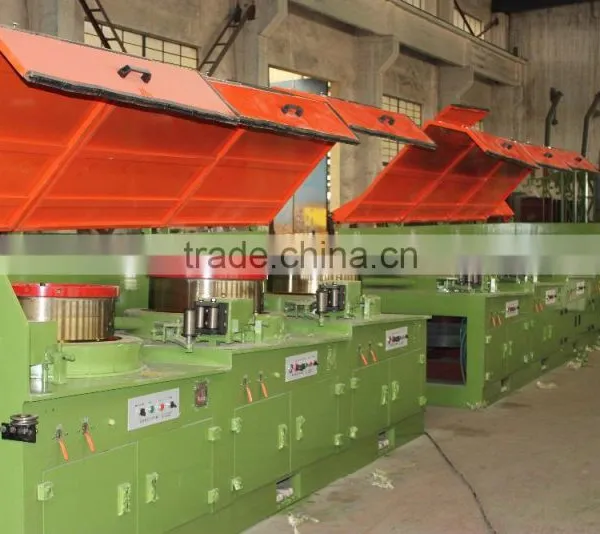

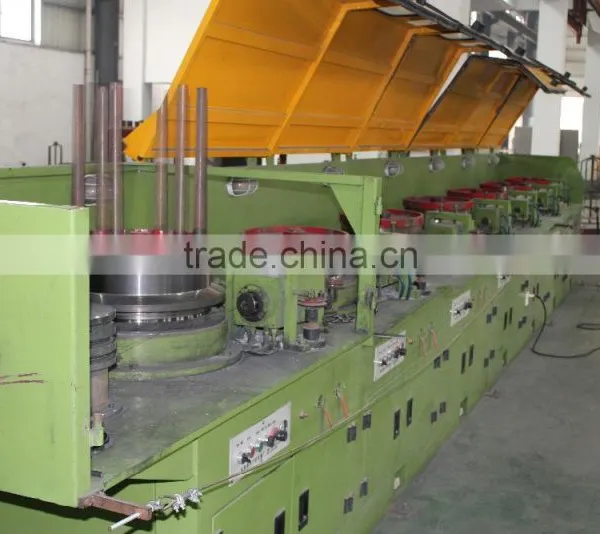

Prestressing Wire Drawing Machine
US$ 30,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
0.8~16mmmm
Outlet Diameter:
0.8-5.5mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or your needs
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mild Drawing Wire MachineUS$ 30,000 - 60,000MOQ: 1 Set -
Vertical Wire Drawing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
High Carbon Wire Drawing Machine LZ8/400US$ 10,000 - 50,000MOQ: 1 Set
-
High Strength Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Many Block Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
Inlet Diameter
0.8~16mmmm
Outlet Diameter
0.8-5.5mm
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
Inverted Vertical
Voltage
380V/220V
Power(W)
7.5~160KW
Dimension(L*W*H)
13000*1500*1500
Weight
1.5~40Ton
Certification
CE/CB//CQC/ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
technical parameter for LZ series wire drawing machine
Specs (mm) | No. Of Drafts | Max. Inlet wire (mm) | Min. Outlet wire (mm) | Motor Power (KW) | Max. Speed (m/s) | Noise dB(A) |
Φ250 | 9-12 | 1.8 | 0.35 | 2.2-4 | 12 | 80-82 |
Φ350 | 6-12 | 3.5 | 0.6 | 7.5-11 | 20 | 80-82 |
Φ400 | 6-12 | 4.2 | 0.75 | 11-15 | 20 | 80-82 |
Φ450 | 6-12 | 4.6 | 0.85 | 15-22 | 18 | 80-82 |
Φ500 | 6-12 | 5.5 | 1.0 | 22-37 | 18 | 80-82 |
Φ560 | 6-12 | 6.5 | 1.3 | 22-45 | 18 | 80-82 |
Φ600 | 5-10 | 7.0 | 1.8 | 37-55 | 16 | 80-82 |
Φ700 | 4-9 | 8.0 | 2.4 | 45-75 | 12 | 80-82 |
Φ800 | 4-9 | 10 | 2.8 | 55-90 | 10 | 80-82 |
Φ900 | 4-9 | 14 | 3.5 | 75-132 | 8 | 80-82 |
