Vertical Wire Drawing Machine
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
6.5--8MM
Outlet Diameter:
2.4--3.2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or your ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Carbon Wire Drawing Machine LZ8/400US$ 10,000 - 50,000MOQ: 1 Set -
High Strength Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Many Block Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
LZ Straight Line Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Hard Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
Condition
New
Inlet Diameter
6.5--8MM
Outlet Diameter
2.4--3.2
Place of Origin
Jiangsu, China
Brand Name
Wanyi
Model Number
LZ600 straight line
Voltage
380/220v
Power(W)
90KW
Dimension(L*W*H)
9000X1600X1550MM
Weight
8500KG
Certification
CE or SGS or other
Warranty
ONE YEAR FREELY
After-sales Service Provided
Overseas service center available
Specifications
Dry Drawing Machine for steel wire & rope industry
1.Dia. of Block: 200-1200mm
2.Block number: 2-12Nos
3.Inlet wire: 4~14mm
Dry Drawing Machine for steel wire & rope industry
1. Dia. of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm
1. Dia. of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm

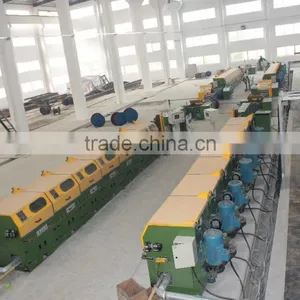

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm, with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire and so on
spring, steel rope wire, steel cord & Bead wire for tyre, etc.
Specification:
Item | LZ200 | LZ300 | LZ400 | LZ500 | LZ560 | LZ600 | LZ700 | LZ750 | LZ900 | LZ1200 |
Dia. of Block | 200mm | 300mm | 400mm | 500mm | 560mm | 600mm | 700mm | 750mm | 900mm | 1200mm |
Capstan Nos. | 2~12 | 2~12 | 2~12 | 2~12 | 2~12 | 2~9 | 2~9 | 2~9 | 2~9 | 2~9 |
Inlet wire size | 2.5mm | 2.8mm | 4.2mm | 5.5mm | 6.5mm | 8mm | 10mm | 10mm | 14mm | 16mm |
Finished wire | 0.3mm | 0.6mm | 0.7mm | 1.2mm | 1.3mm | 1.6mm | 2.2mm | 2.2mm | 3mm | 3mm |
Max. Speed | 20m/s | 20m/s | 20m/s | 18m/s | 15m/s | 12m/s | 10m/s | 10m/s | 8m/s | 6m/s |
Power (Kw) | 5.5~7 | 7.5~11 | 7.5~22 | 22~45 | 22~55 | 45~75 | 45~90 | 55~90 | 90~132 | 90~160 |
