Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Drawing Machinery > PC Wire Drawing Machine

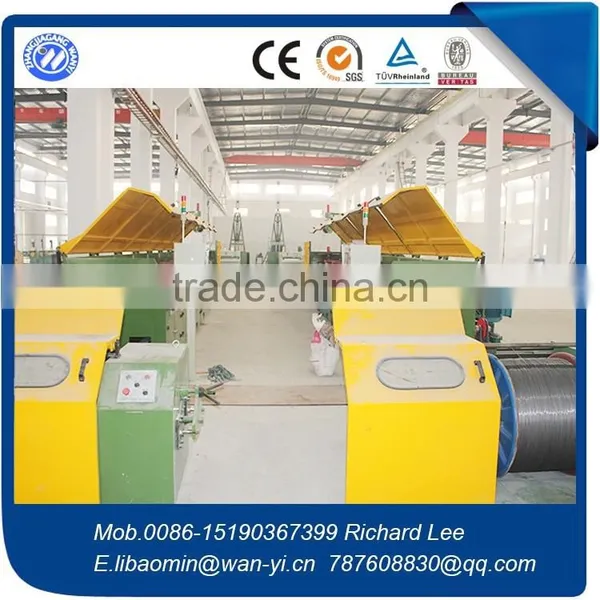

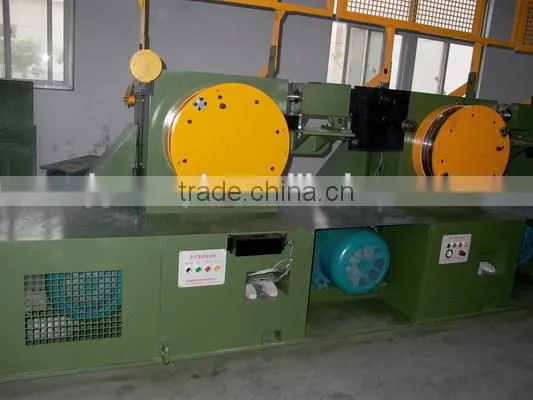

PC Wire Drawing Machine
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
6.5--8MM
Outlet Diameter:
2.4--3.2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or your ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Inlet Diameter
6.5--8MM
Outlet Diameter
2.4--3.2
Place of Origin
Jiangsu, China
Brand Name
Wanyi
Model Number
LZ600 straight line
Voltage
380/220v
Power(W)
90KW
Dimension(L*W*H)
9000X1600X1550MM
Weight
8500KG
Certification
CE or SGS or other
Warranty
ONE YEAR FREELY
After-sales Service Provided
Overseas service center available
SpecificationsDry Drawing Machine for steel wire & rope industry
1.Dia. of Block: 200-1200mm
2.Block number: 2-12Nos
3.Inlet wire: 4~14mm
Dry Drawing Machine for steel wire & rope industry
1. Dia. of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm
1. Dia. of Block: 200-1200mm
2. Block number: 2-12Nos
3. Inlet wire: 4~14mm

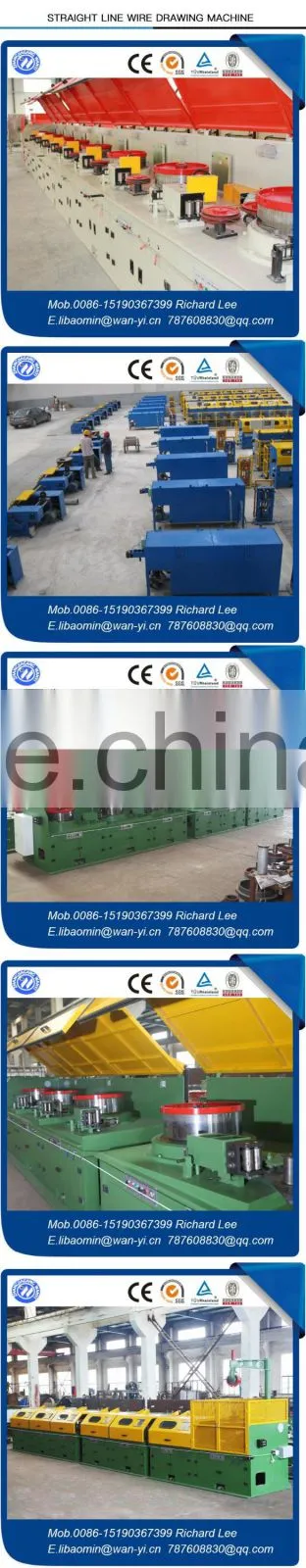

Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm, with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire and so on spring, steel rope wire, steel cord & Bead wire for tyre, etc.
Specification:
Item |
LZ200 |
LZ300 |
LZ400 |
LZ500 |
LZ560 |
LZ600 |
LZ700 |
LZ750 |
LZ900 |
LZ1200 |
Dia. of Block |
200mm |
300mm |
400mm |
500mm |
560mm |
600mm |
700mm |
750mm |
900mm |
1200mm |
Capstan Nos. |
2~12 |
2~12 |
2~12 |
2~12 |
2~12 |
2~9 |
2~9 |
2~9 |
2~9 |
2~9 |
Inlet wire size |
2.5mm |
2.8mm |
4.2mm |
5.5mm |
6.5mm |
8mm |
10mm |
10mm |
14mm |
16mm |
Finished wire |
0.3mm |
0.6mm |
0.7mm |
1.2mm |
1.3mm |
1.6mm |
2.2mm |
2.2mm |
3mm |
3mm |
Max. Speed |
20m/s |
20m/s |
20m/s |
18m/s |
15m/s |
12m/s |
10m/s |
10m/s |
8m/s |
6m/s |
Power (Kw) |
5.5~7 |
7.5~11 |
7.5~22 |
22~45 |
22~55 |
45~75 |
45~90 |
55~90 |
90~132 |
90~160 |
