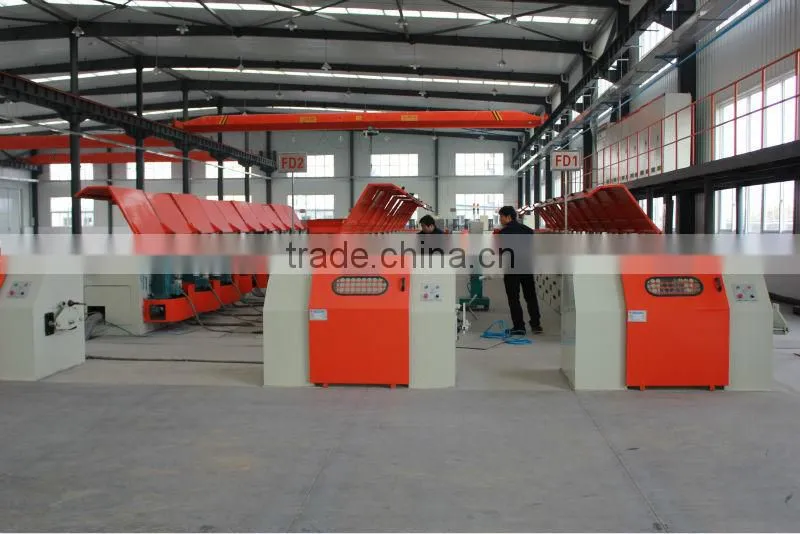

Low Carbon Wire Drawing Machine
US$ 40,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
8mm
Outlet Diameter:
1mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi Wire Drawing Machine LZ9-600US$ 30,000 - 80,000MOQ: 1 Set -
Low Carbon Wire Drawing MachineUS$ 60,000 - 160,000MOQ: 1 Set
-
SAE1006 Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Dies for Wire Drawing MachineUS$ 1 - 60MOQ: 1 Piece
-
Flux Cored Welding Wire Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
Condition
New
Inlet Diameter
8mm
Outlet Diameter
1mm
Place of Origin
Jiangsu, China
Brand Name
WANYI
Model Number
straight line
Voltage
380/220V
Power(W)
7X30+6X22KW
Dimension(L*W*H)
9000X1350X1400MM
Weight
6000KG
Certification
CE or your needs
Warranty
one year freely
After-sales Service Provided
Overseas service center available
low carbon drawing machine
Spec. |
No. of Drafts |
Max. Inlet Dia.(mm) |
Min. Outlet Dia(mm) |
Motor Power
(KW)
|
Speed(m/s) |
300 |
8-12 |
2.5 |
0.4 |
3-4.5 |
25 |
350 |
8-12 |
3.5 |
0.6 |
5.5-11 |
25 |
400 |
8-12 |
4.2 |
0.75 |
7.5-15 |
25 |
450 |
8-12 |
4.5 |
0.96 |
15-22 |
18 |
600 |
6-10 |
6.5 |
1.4 |
22-37 |
16 |
700 |
6-9 |
9.0 |
3.0 |
37-55 |
8 |
