SAE1006 Wire Drawing Machine

SAE1006 Wire Drawing Machine thumbnail-1
SAE1006 Wire Drawing Machine thumbnail-2
SAE1006 Wire Drawing Machine thumbnail-3
SAE1006 Wire Drawing Machine photo-1
SAE1006 Wire Drawing Machine photo-2
SAE1006 Wire Drawing Machine photo-3
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
wanyi
Model Number:
LZ600 drawing machine
Contact Supplier Request Quote Chat Now
Zhangjiagang City Wanyi Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number LZ600 drawing machine
After-sales Service Provided Overseas service center available

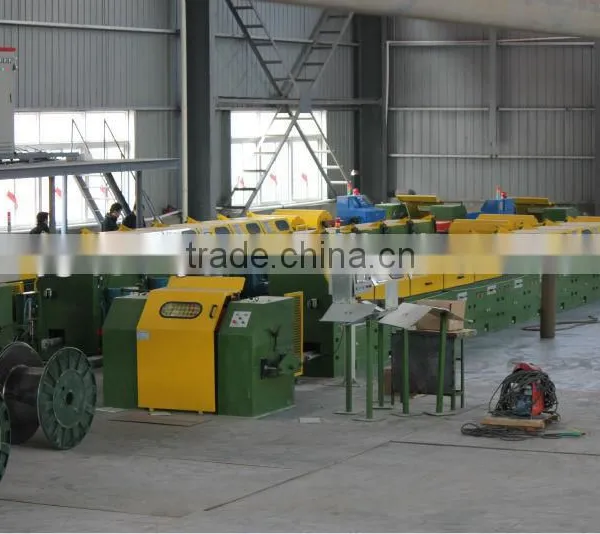

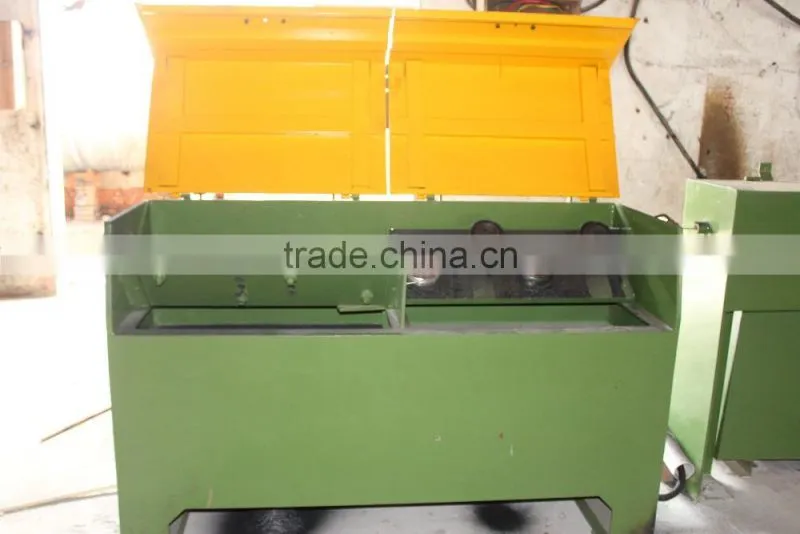

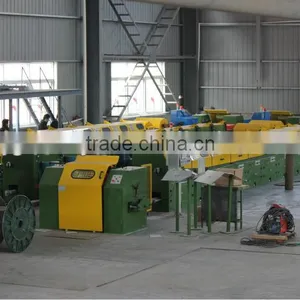

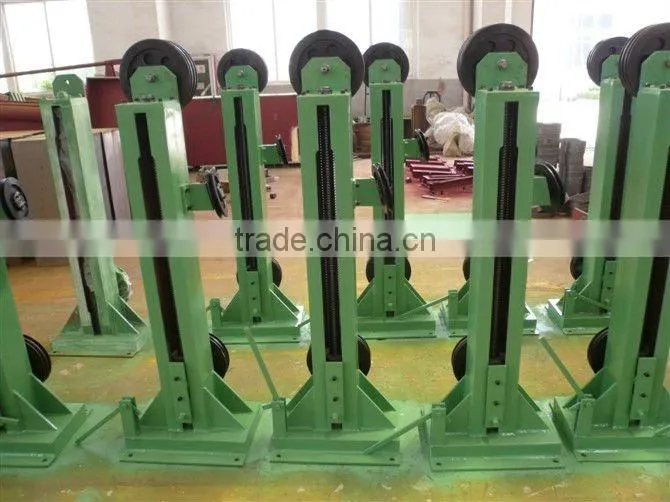

SAE1006 wire drawing machineSAE1006 wire drawing machineSAE1006 wire drawing machineSAE1006 wire drawing machineSAE1006 wire drawing machineSAE1006 wire drawing machineSAE1006 wire drawing machineSAE1006 wire drawing machiner: (1) pretreatment work line: up-draft pay-off rack + Shucking-brush derusting machine+boron coating+ tube type dryer

  speed of treating line  2.5M/S

                    (2)LZ7/600 straight line drawing machine

                    (3)600 trunk type take up machine

                     (4 ) human machine interface display screen

                     (5) Whole set of electrical appliance control cabinet

2. Work areas:   (1) input diameter: 6.0

              (2)input strength: 500Mpa or less

              (3) input material: low-carbon wire(for nail)

              (4) output diameter: 2.2-

3. Drawing speed: (1) max: 10m/s   (2) average: 8m/s with output 8.5t/d (10h per day)

4. Water- air pressure: (1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa

5. Electric motor standard: (1)drawing machine: 22KW  AC motor

                    (2) wire coiling machine: 15KW  AC motor

6. Reel form: (1) diameter: 600mm

           (2) Material: ZG45 steel, surface spray finishing with carbonized tungsten alloy powder, hardness more than HRC60, surface roughness concentration less than 1.6Ra

           (3) Service life: 10000h

7. Reel cooling: (1) inside small clearance space water cooling

             (2) outside forced air cooling, quickly cool the wire surface

8. Stander form (1) main stander with steel structure welding

           (2) Water, electric and gas operation board and meter to trig urgently

           (3) Painted in blue or up to client

           (4) With safety shield, can prevent the powder from smelling out.
