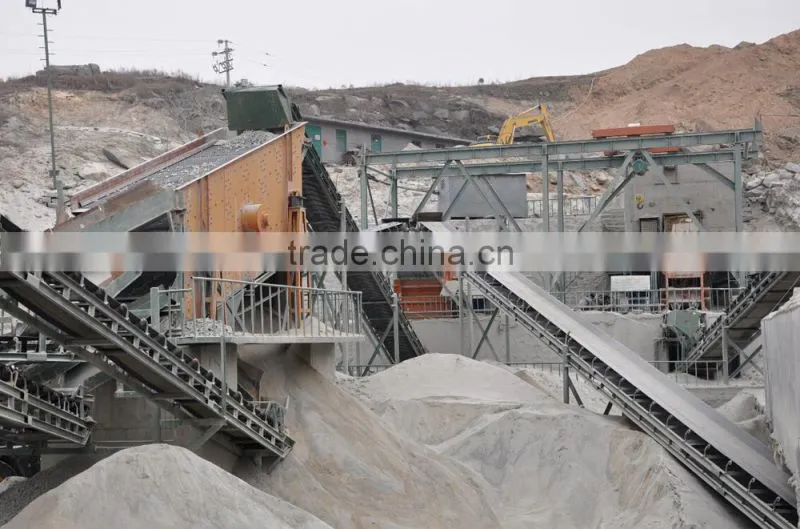

Construction Waste/Building Waste Crushing Plant

Construction waste/Building waste crushing plant:

1. Long service life;

2. High crushing effiency;

3. Low working noise;

Main Components of 100~120T/H Building Waste Crushing Plant

Vibrating Feeder ZSW 380 X95

Max Feeding Size: ≤500mm

Power: 11 kw

Jaw Crusher PE-600 X 900

Max Feeding Size: ≤500mm

Power: 75kw

Impact Crusher PF-1214

Max Feeding Size: ≤350mm

Power: 132kw

Vibrating Screen 3YK1848

Sep1=40mm Sep2=20mm Sep3=5mm

Power: 18.5kw

Auxiliary Components of Building Waste Crushing Plant

Belt Conveyor

B650 X 16M

B650 X 19M

B650 X 21M

B650 X 16M

B650 X 16M

B650 X 16M

Introduction of 100~120T/H Building Waste Crushing Plant

1. 100-120TPH limestone crushing plant adopts PE600X900 Jaw crusher model for primary crushing, easy-changeable wearing parts of the crushing equipments are of high quality with abrasive characteristics, which decreasing the production cost, but increasing output greatly.

2. By replacing different screen mesh sizes, various final products are getable, or alternatively, VSI crusher is expected to work together for making sand as final products.

3. Tailor-made dust catcher or dust cover can also serve to this plant.

This crushing plant is very popular in Africa, Middle East, India, South Africa, Sudan, they are applied in granite, basalt, limestone, iron mines.
