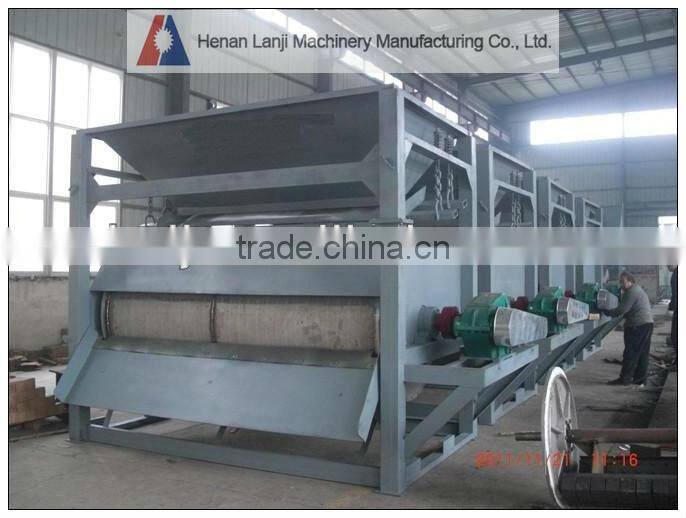

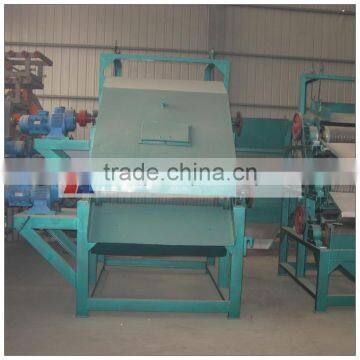

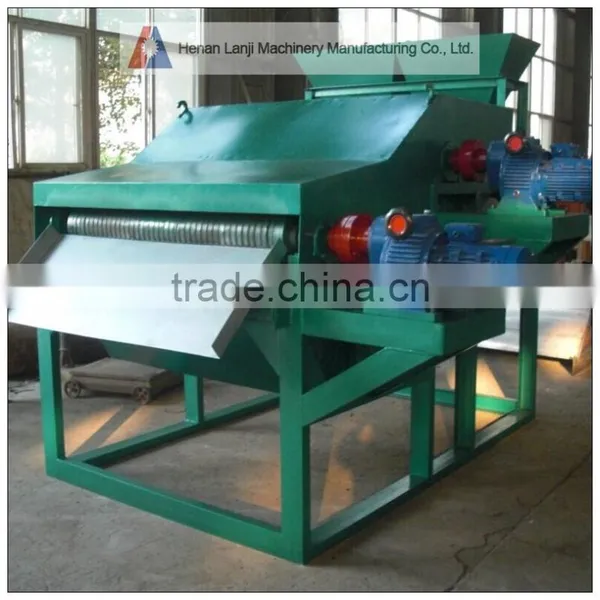

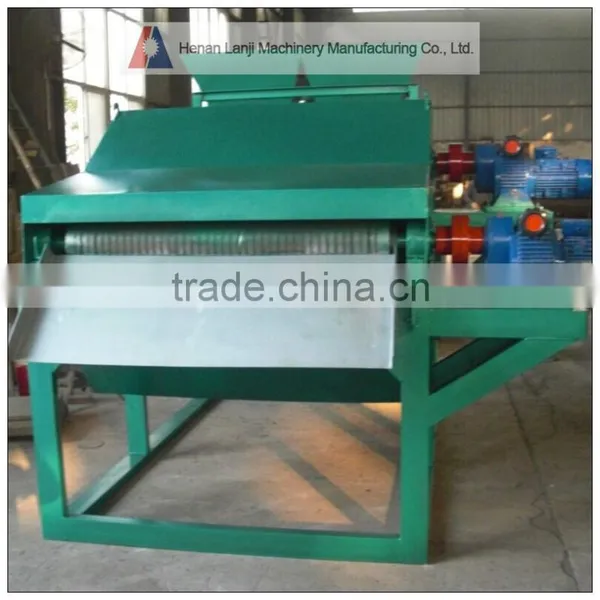

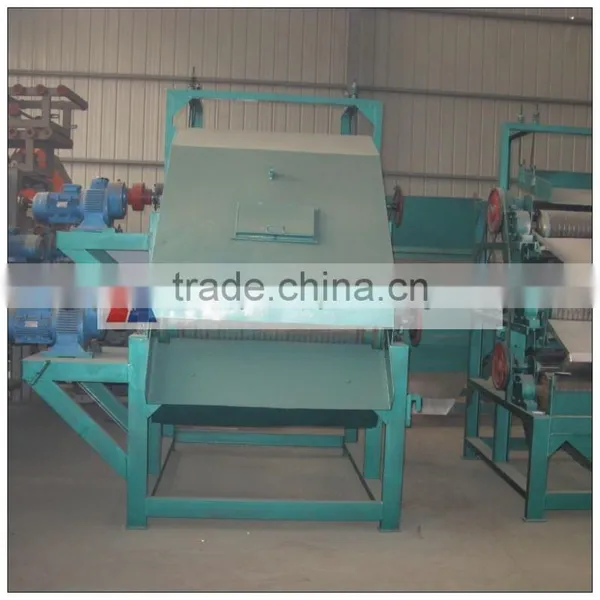

Competitive price high gradient magnetic separator with reliable quality:
Application:
1. The magnetic separator is used for deironing materials like non-metal ores, coal and building materials. Average magnetic induction of barrel surface is 100-600mT.
2. According to customers demands, it can provide magnetic separation with different magnetic induction like forward flow, semi counter flow and counter
Magnetic Separator Features:
The magnetic system is a ring-shaped chain closed magnetic circuit with energizing coils made of copper tubing and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as a magnetic matrix. This separator features a short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, a simple structure and easy maintenance.
Techncial specifications:
Model No. | Specifications of magnetic drum (mm) | Rotary speed of drum (r/min) | Magnetic Filed intensity | Feeding size (≤mm) | Processing capacity (t/h) | Motor power (kW) | Weight (kg) | |
Diameter | Length | |||||||
CTG-609 | 600 | 900 | 0~63 | Determined according to mineral properties
| 7 | 5~10 | 5.5 | 1800 |
CTG-612 | 600 | 1200 | 0~63 | 7 | 10~15 | 5.5 | 2000 | |
CTG-618 | 600 | 1800 | 0~63 | 7 | 15~20 | 7.5 | 2500 | |
CTG-812 | 800 | 1200 | 0~63 | 7 | 20~25 | 7.5 | 3000 | |
CTG-815 | 800 | 1500 | 0~63 | 7 | 30~35 | 11 | 3600 | |
CTG-818 | 800 | 1800 | 0~63 | 7 | 40~45 | 11 | 4200 | |
CTG-821 | 800 | 2100 | 0~63 | 10 | 60~65 | 11 | 4500 | |
CTG-824 | 800 | 2400 | 0~63 | 10 | 80~85 | 11 | 4800 | |
CTG-918 | 900 | 1800 | 0~50 | 10 | 90~110 | 11 | 4600 | |
CTG-1030 | 1050 | 3000 | 0~50 | 12 | 115~150 | 11 | 6500 | |
Thanks so much for you taking time to browse our double roller magnetic separator . Any further questions, please feel free to contact us and we are ready to so service for you!
