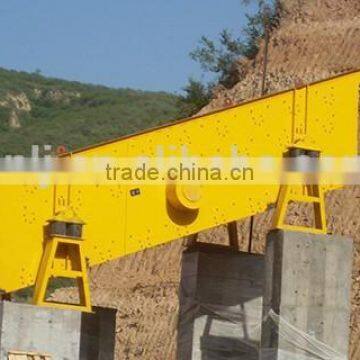

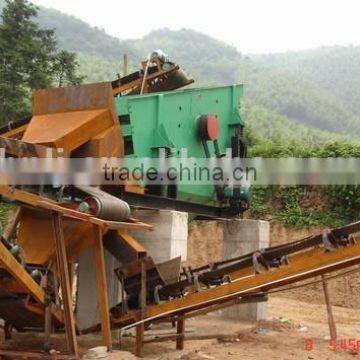

Rock screening plant with circular vibrating screen
- 100 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A
Product Details
Condition: | New | Type: | Circular | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | Lanji | Model Number: | 2YK2460 |
Voltage: | 380v | Power(W): | 37kw | Dimension(L*W*H): | 7450*3230*1500 |
Weight: | 15600kg | Certification: | ISO9001 | Warranty: | 1year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Rock screening plant with circular vibrating screen:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
2. The beam and case of the screen are connected with high strength bolts without welding.
3. Simple structure, easy to repair.
4. Adopt tire coupling and soft connection makes operation smooth.
5. High efficiency, easy maintenance, sturdy and durable.
1. Brief introduction of circular vibrating screen
LanJi Circular Vibrating Screen is widely applied in coal dressing, ore dressing, building material, electricity and chemical industries. It is doing circular movement while at work, and it is of a highly-effective, newly-developed and multilayer machine. With the introduction of eccentric shaft vibration exciter and particular block, the amplitude can be adjustable. Meanwhile, such screen has features of reliable structure, strong excited force, perfect separating efficiency, low noise, long life span, large handling capacity, and durable usage.
2. Technical parameters of circular vibrating screen:
Model | Sieve lay-er | Sieve area (m2) | Mesh size (mm) | Max feedin-g size (mm) | Capacity (m3/h) | Vibrating frequency (r/min) | Motor power (kw) | Weight (kg) | Sieve spec. (mm) |
YK1236 | 1 | 4.2 | 3-100 | 300 | 30-160 | 970 | 5.5 | 3210 | 1180×3550 |
3YK1236 | 3 | 4.2 | 3-100 | 300 | 30-160 | 970 | 11 | 4110 | 1180×3550 |
2YK1245 | 2 | 5.3 | 3-100 | 300 | 35-180 | 970 | 11 | 4320 | 1180×4450 |
3YK1245 | 3 | 5.3 | 3-100 | 300 | 35-180 | 970 | 11 | 4460 | 1180×4450 |
YK1535 | 1 | 5.1 | 3-100 | 300 | 34-200 | 970 | 11 | 4680 | 1480×3450 |
3YK1535 | 3 | 5.1 | 3-100 | 400 | 34-200 | 970 | 15 | 5710 | 1480×3450 |
YK1545 | 1 | 6.6 | 3-100 | 400 | 44-200 | 970 | 11 | 4300 | 1480×4450 |
2YK1545 | 2 | 6.6 | 3-100 | 400 | 44-258 | 970 | 15 | 4830 | 1480×4450 |
3YK1545 | 3 | 6.6 | 3-100 | 400 | 44-258 | 970 | 15 | 5832 | 1480×4450 |
4YK1545 | 4 | 6.6 | 3-100 | 400 | 44-258 | 970 | 18.5 | 6070 | 1480×4450 |
3YK1548 | 3 | 7.03 | 3-100 | 400 | 47-275 | 970 | 15 | 6540 | 1480×4750 |
4YK1548 | 4 | 7.03 | 3-100 | 200 | 47-275 | 730 | 18.5 | 6850 | 1480×4750 |
YK1848 | 1 | 8.5 | 3-100 | 400 | 56-330 | 755 | 15 | 6189 | 1780×4750 |
2YK1848 | 2 | 8.5 | 3-100 | 400 | 56-330 | 750 | 18.5 | 6539 | 1780×4750 |
3YK1848 | 3 | 8.5 | 3-100 | 400 | 56-330 | 970 | 22 | 6935 | 1780×4750 |
2YK1854 | 2 | 9.5 | 3-100 | 400 | 63-450 | 970 | 22 | 7220 | 1780×5350 |
3YK1854 | 3 | 9.5 | 3-100 | 400 | 63-450 | 970 | 22 | 7640 | 1780×5350 |
YK1860 | 1 | 10.6 | 3-100 | 400 | 56-450 | 970 | 18.5 | 7200 | 1780×5950 |
2YK2160 | 2 | 12.4 | 3-100 | 400 | 80-720 | 970 | 30 | 8240 | 2080×5950 |
3YK2160 | 3 | 12.4 | 3-100 | 400 | 80-720 | 970 | 30 | 8800 | 2080×5950 |
2YK2460 | 2 | 14.2 | 3-100 | 400 | 80-800 | 970 | 30 | 9120 | 2380×5950 |
3YK2460 | 3 | 14.2 | 3-100 | 400 | 80-800 | 970 | 30 | 9600 | 2380×5950 |
1.Henan Lanji Machinery Manufacturing Co., Ltd is professional in producing large and medium-sized crushers, ball mills,mining equipments, brick/block making machine and so on.
2.Our clients spread all over the world. Products are sold to South Korea,, Indonesia, Vietnam,
Portugal, Africa and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.
1..Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.
2.After sale service: 1year guarantee.
