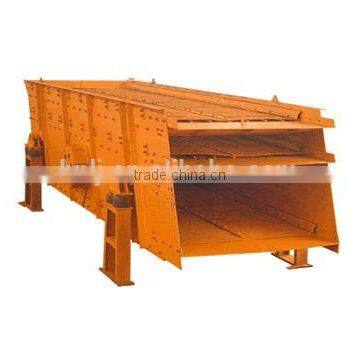

High efficiency mining circular vibrating screen :
Mining vibrating screen introduction:
The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad.
It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.
Mining vibrating screen working principle:
It adjusts the amplitude by tube-shaped violent vibration screen of eccentricshaft and eccentric blocks. The body moves like a circle, in order to make the materials screened.
Mining vibrating screen benefits:
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To deploy tire couplings, flexible connection, running smoothly.
3. To adopt a sieve and the sieve box beams using high strength bolts, simple structure, convenient maintenance.
4. Structure, advanced, using block eccentric as the excitation power, excitation and strong, with low power consumption, low noise.
Mining vibrating screen main technical parameters:
Type |
Screen Spec (mm) |
Layers |
Sieve Pore (mm) |
Max. Feed Size (mm) |
Capacity (t/h) |
Power (KW) |
Screen area (m2) |
Weight(excluding motor)(t) |
2YA1237 |
1200×3700 |
2 |
3-50 |
200 |
7.5-80 |
5.5 |
3.6 |
2.34 |
3YA1237 |
1200×3700 |
3 |
3-50 |
200 |
7.5-80 |
7.5 |
3.6 |
3.05 |
2YA1548 |
1500×4200 |
2 |
5-50 |
400 |
50-208 |
15 |
6.3 |
5.33 |
3YA1548 |
1500×4800 |
3 |
5-50 |
400 |
50-250 |
15 |
7.2 |
6.07 |
3YA1848 |
1800×4800 |
3 |
5-80 |
400 |
50-300 |
18.5 |
8.64 |
6.93 |
3YA1860 |
1800×6000 |
3 |
5-80 |
400 |
50-350 |
22 |
10.8 |
7.70 |
3YA2160 |
2100×6000 |
3 |
5-100 |
400 |
100-500 |
30 |
12.6 |
9.24 |
2YA2460 |
2400×6000 |
2 |
5-150 |
400 |
150-700 |
30 |
14.4 |
12.35 |
