YK1225 Circular Vibrating Screen Price

YK1225 Circular Vibrating Screen Price thumbnail-1
YK1225 Circular Vibrating Screen Price thumbnail-2
YK1225 Circular Vibrating Screen Price thumbnail-3
YK1225 Circular Vibrating Screen Price photo-1
YK1225 Circular Vibrating Screen Price photo-2
YK1225 Circular Vibrating Screen Price photo-3
US$ 6,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name Lanji
Model Number YK1235-YK3060
Voltage 220/380V
Power(W) refer to specification
Dimension(L*W*H) refer to specification
Weight 50-500
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

New high capacity YK series Circular Vibrating Screen for rock ore screening:

Circular vibrating screen application:



LanJi Circular Vibrating Screen is widely applied in coal dressing, ore dressing, building material, electricity and chemical industries. It is doing circular movement while at work, and it is of a highly-effective, newly-developed and multilayer machine. With the introduction of eccentric shaft vibration exciter and particular block, the amplitude can be adjustable. Meanwhile, such screen has features of reliable structure, strong excited force, perfect separating efficiency, low noise, long life span, large handling capacity, and durable usage.it is widely used for the aggregate crushing plant screening work.

Circular vibrating screen working principle:

It adjusts the amplitude by tube-shaped violent vibration screen of eccentricshaft and eccentric blocks. The body moves like a circle, in order to make the materials screened. the deck can be one layer,two layer ,three layer or four layers according to the output size.

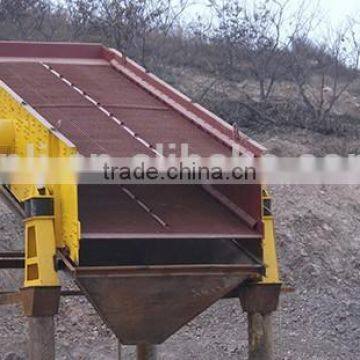

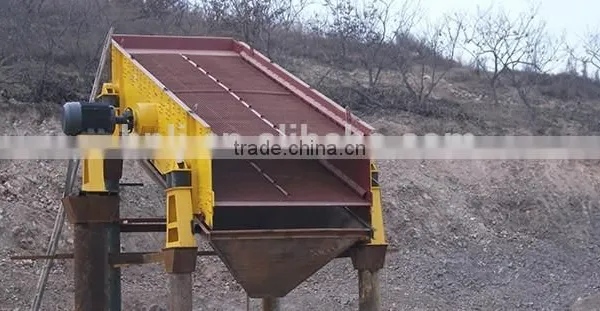

YK1225 circular vibrating screen price

Circular vibrating screen features:

1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.

2. The beam and case of the screen are connected with high strength bolts without welding.

3. Simple structure, easy to repair.

4. Adopt tire coupling and soft connection makes operation smooth.

5. High efficiency, easy maintenance, sturdy and durable.

Circular vibrating screen main technical parameters:



Model

Sieve lay-er

  Sieve area

(m2)

Mesh size

(mm)

Max feedin-g size

 (mm)

Capacity

(m3/h)

Vibrating frequency

(r/min)

Motor power

(kw)

Weight

(kg)

 Sieve spec.

(mm)

YK1236

1

4.2

3-100

300

30-160

970

5.5

3210

1180×3550

3YK1236

3

4.2

3-100

300

30-160

970

11

4110

1180×3550

2YK1245

2

5.3

3-100

300

35-180

970

11

4320

1180×4450

3YK1245

3

5.3

3-100

300

35-180

970

11

4460

1180×4450

YK1535

1

5.1

3-100

300

34-200

970

11

4680

1480×3450

3YK1535

3

5.1

3-100

400

34-200

970

15

5710

1480×3450

YK1545

1

6.6

3-100

400

44-200

970

11

4300

1480×4450

2YK1545

2

6.6

3-100

400

44-258

970

15

4830

1480×4450

3YK1545

3

6.6

3-100

400

44-258

970

15

5832

1480×4450

4YK1545

4

6.6

3-100

400

44-258

970

18.5

6070

1480×4450

3YK1548

3

7.03

3-100

400

47-275

970

15

6540

1480×4750

4YK1548

4

7.03

3-100

200

47-275

730

18.5

6850

1480×4750

YK1848

1

8.5

3-100

400

56-330

755

15

6189

1780×4750

2YK1848

2

8.5

3-100

400

56-330

750

18.5

6539

1780×4750

3YK1848

3

8.5

3-100

400

56-330

970

22

6935

1780×4750

2YK1854

2

9.5

3-100

400

63-450

970

22

7220

1780×5350

3YK1854

3

9.5

3-100

400

63-450

970

22

7640

1780×5350

YK1860

1

10.6

3-100

400

56-450

970

18.5

7200

1780×5950

2YK2160

2

12.4

3-100

400

80-720

970

30

8240

2080×5950

3YK2160

3

12.4

3-100

400

80-720

970

30

8800

2080×5950

2YK2460

2

14.2

3-100

400

80-800

970

30

9120

2380×5950

3YK2460

3

14.2

3-100

400

80-800

970

30

9600

2380×5950

 YK1225 circular vibrating screen price

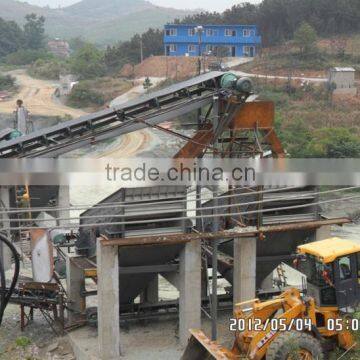

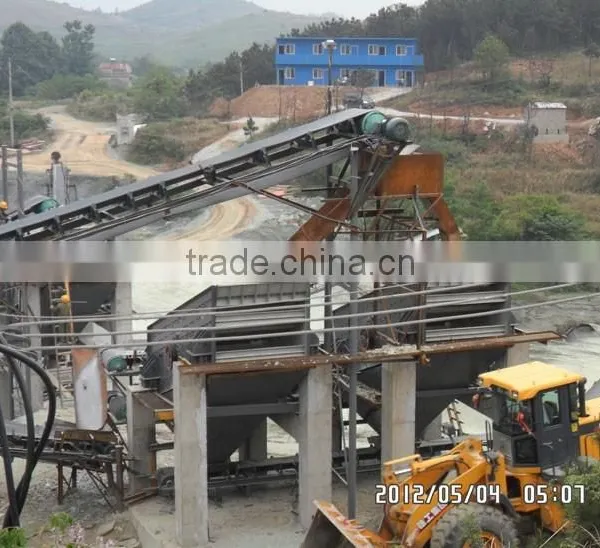

 Factory show :

YK1225 circular vibrating screen price
