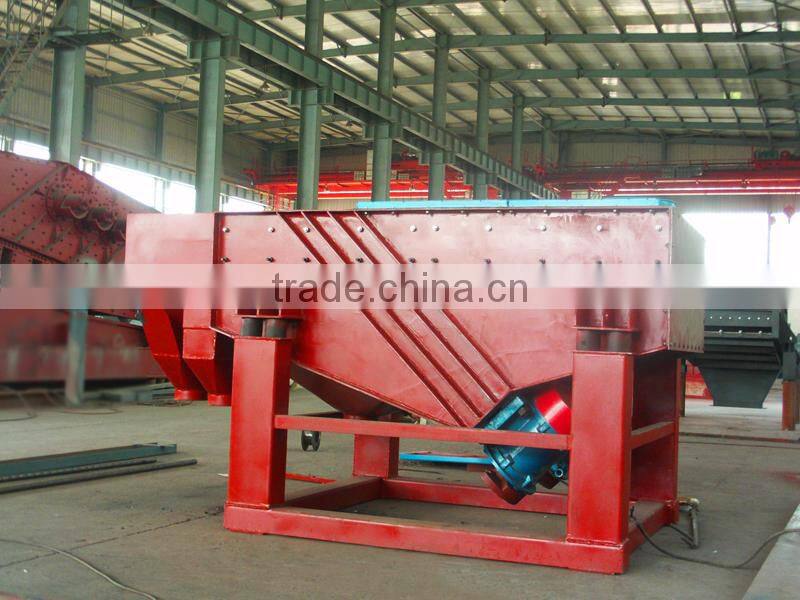

Linear Vibrating Screen for Rock Crushing Plant

Linear vibrating screen for rock crushing plant  :

Model:ZS1020

Screening area:1000mm*2000mm

Frequency:960rpm

Amplitude:3~5mm

Capacity: 8~20t/h

Power:2*1.1kw

Less energy consumption,lower noise,longer service life

-The beam and screen box are connected by high strength blot without welding

-High accuracy screening efficiency

-Simple and stable structure, convenient maintenance

Linear vibrating screen application:

Linear vibrating screen can be widely used in many industries such as mine, coal, metallurgy, building material, refractory, light industry and chemistry, and linear vibrating screen has many advantages such as stable and reliable working condition, low energy consumption, low noise, long service life, stable vibration and high screening efficiency. Linear vibrating screen is applied in dewatering, de-mud, de-liquid and de-heavy medium

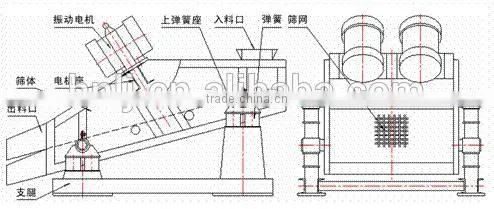

Linear vibrating screen working principle:

When ZSG series linear vibrating screen works, the two electrical machines run synchronously in opposite direction to make the exciter produce reverse exciting force which forces the screen to drive the screen net to move vertically, and the materials on the vibrating screen will be periodically thrown and cast forward, thus completing the material screening process.

 Linear vibrating screen features:

Linear vibrating screen has many advantages such as stable and reliable working condition, low energy consumption, low noise, long service life, stable vibration and high screening efficiency.

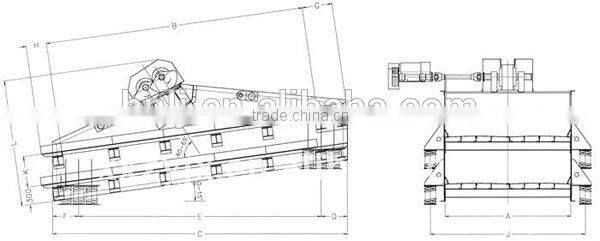

Linear vibrating screen main technical parameters:

1.Henan Lanji Machinery Manufacturing Co., Ltd is professional in producing large and medium-sized crushers, ball mills,mining equipments, brick/block making machine and so on.

2.Our clients spread all over the world. Products are sold to South Korea,, Indonesia, Vietnam,

Portugal, Africa and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.

1..Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.

2.After sale service: 1year guarantee.

Contact : Ms Sara  008613783471727  skype : sarapang 6
