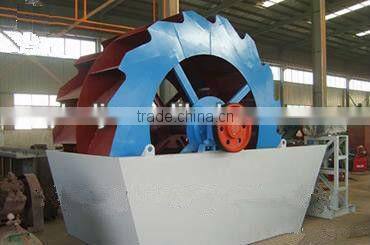

XSD Series wheel sand washing machine:
1. It is simple in structure, stable in performance, and has high wash degree, less loss in sand washing process, especially while transmission device is seperated from water,and sand, failure rate is greatly lower than recent sand washing machin, and it has long life span.
2 .It has reasonable structure, innovative seal structure, totally sealed oil bath gear, adjustable overflow weir plate, which can guarantee products with high efficiency, durability, good washing and dehydration effect, and fine grain products are stable;
Great capacity and low power consumption;
3. It can save water resource and has little pollution
4. It’s easy to maintain.
Wheel sand washing machine application:
Our company offers high cleaning performance sand washing machine used to clean and separate the dust and impurity from the sand and improves the sand quality. Sand washing machine is a necessary equipment matched with sand making machine. Sand washing machine is mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc.
Wheel sand washing machine working principle:
While working, the motor will drive impellers to rotate slowly through vee belt, speed reducer and gears, stones and sand will enter into the sand washing tank through the feeding tank and rotate diviven by impellers, and grind with each other to eliminate impurities on surface of sand and stone and break vapor layer surrounding sand and stones, thus it’s helpful for dehydration and can form strong water flow, by which impurities and small things will be taken away and discharged from overflow opening of the washing tank to complete the washing function. Clean sand and stones will be taken away by impellers. Finally, sands and stones are discharged from rotating impellers to outlet tank and complete the shole sand washing process.
Wheel sand washing machine main technical parameters:
Model | XSD2600 | XSD2800 | XSD3000 | XSD3200 | XSD3600 |
Wheel bucket diameter(mm) | 2600 | 2800 | 3000 | 3200 | 3600 |
Rotation speed(r/min) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 |
Processing capacity(t/h) | 20-50 | 30-70 | 50-100 | 80-120 | 120-180 |
Motor power(kw) | 5.5 | 5.5 | 7.5 | 11 | 15 |
Total weight(kg) | 3500 | 4600 | 5300 | 5800 | 6600 |
