Sand making production line 30-800t/h:
sand making production line application:
Our sand production line mainly consists of vibrating feeder, jaw crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor, electric control panel, etc, and capacity is 50-500T/H. Our sand production line is taking the leading role in the sand making industry. Sand production line can crush hard limestone, granite, basalt, river stone, etc, and widely used in hydropower, building material, highway, city construction, etc
sand making production line brife introduction:

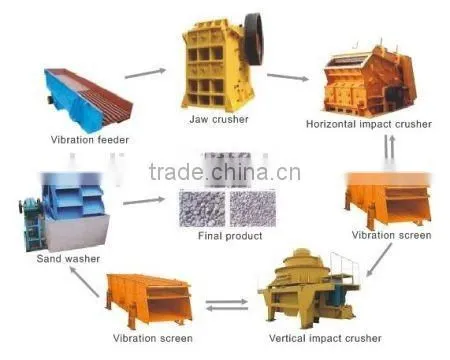

Large stone is transported to jaw crusher via vibrating feeder for primary crushing. Then crushed material is transported to sand making machine. Then the stones are screened out into several different types with a vibrating screen. Stone with satisfied size is transported to sand washing machine, then it will be final product, while overlarge stone is returned back to sand making machine for recrushing.
sand making production line process:
Aggregate with size of 0-40mm will be conveyed by electromagnetic feeder and belt conveyor to vertical shaft impact crusher for crushing, the crushed material will be conveyed to vibrating screen for screening, the material with size larger than 5mm will be conveyed back to impact crusher for crushing to achieve a closed circuit. The material with size less than 5mm will be conveyed to sand washer for cleaning, the cleaned material will be conveyed by belt conveyor to final product pile. In order to ensure the fineness module and sand grading, the sand washing water will be recycled by fine sand collection system to collect the fine sand with size less than 0.16mm.
Characteristics of sand making production line :
It is highly automatic. The efficiency is high, operation cost is low, crushing ratio is high, capacity is high, and pollution is very low. Size of final product is even, and with good shape, which complies with requirement for highway.
In order to minimum occupation area, we try to make full use of space. Advanced electric control system makes the full line very smooth, reliable, and easy to maintenance.
