Sand washer/sand washing machine:
1. High cleaning;
2. Reasonable structure;
3. High capacity and low power consumption;
4. With the three functions of sand washing, grading and dehydration;
5.The spiral is driven by motor and decelerator to continuously rotate, and the sand or small ores can be stirred and washed.

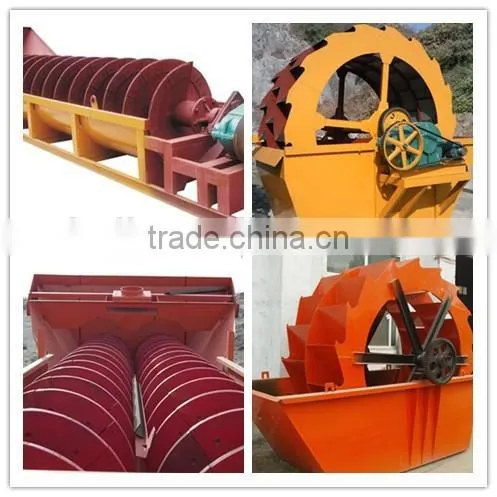

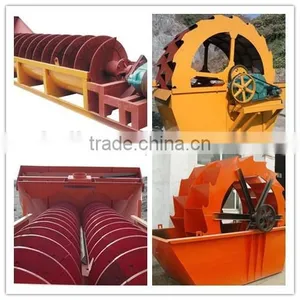

High efficiency sand washer machine spiral type and bucket wheel type with nice price:

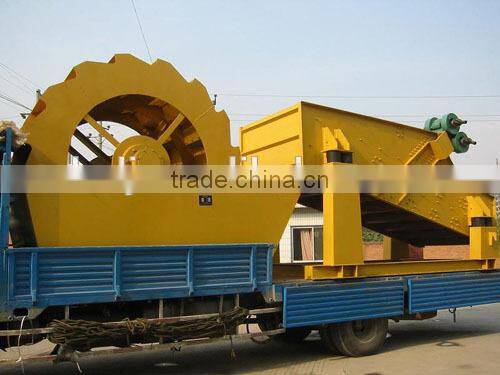

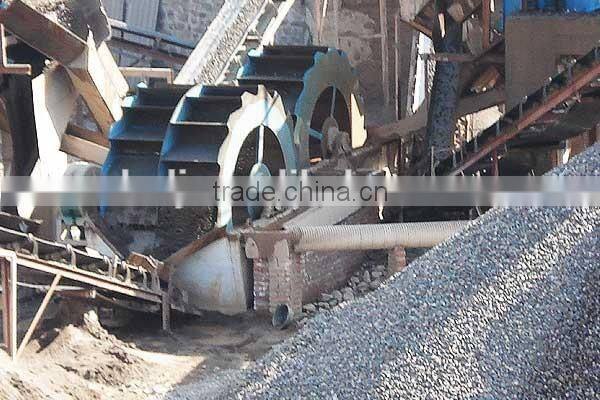

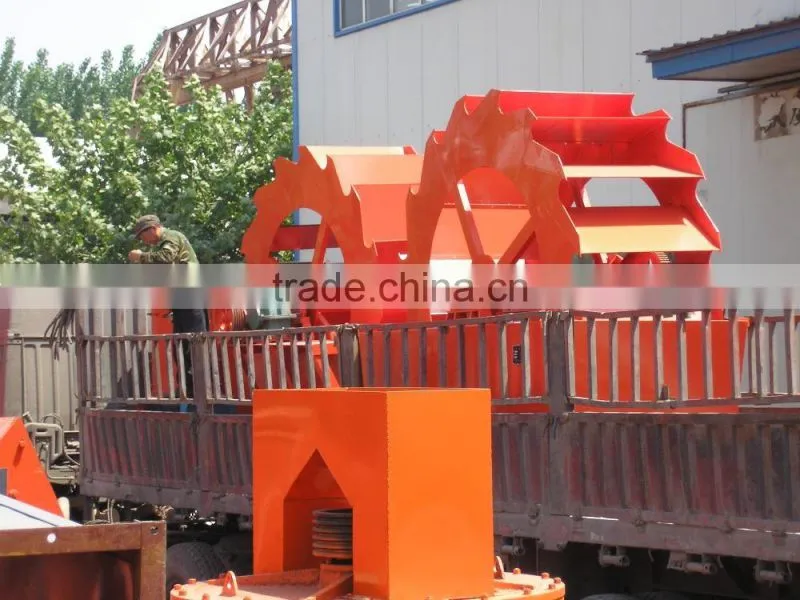

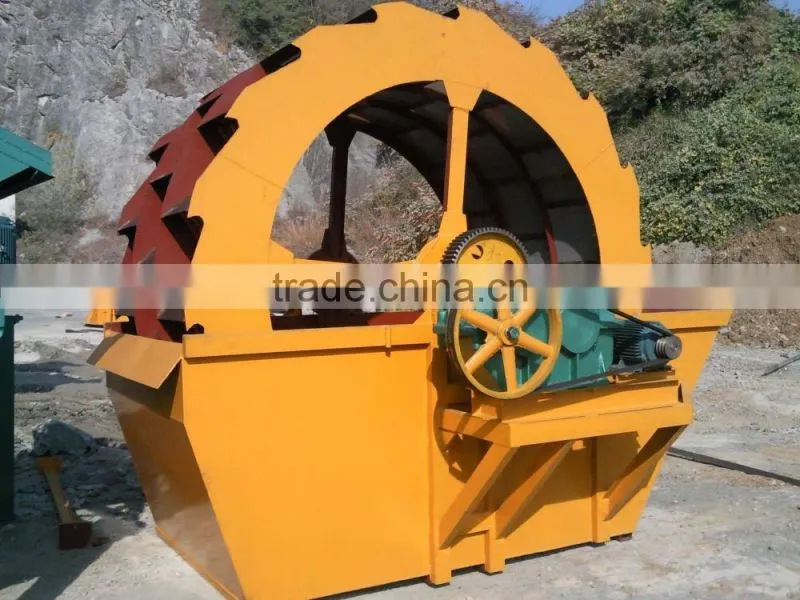

The bucket wheel sand washer cleans and separates stone powder and dust. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects.

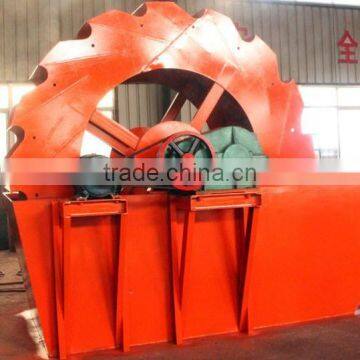

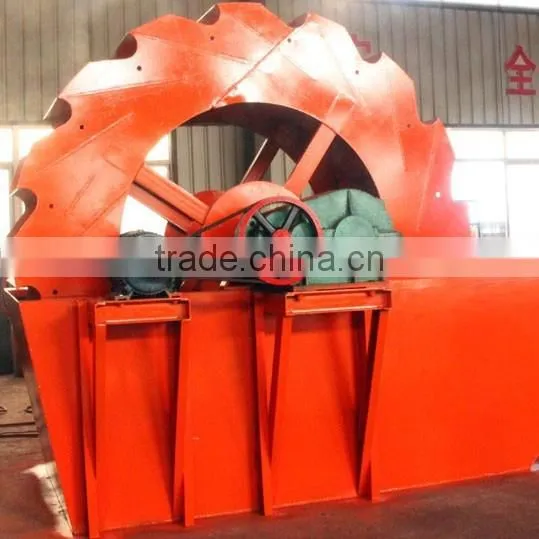

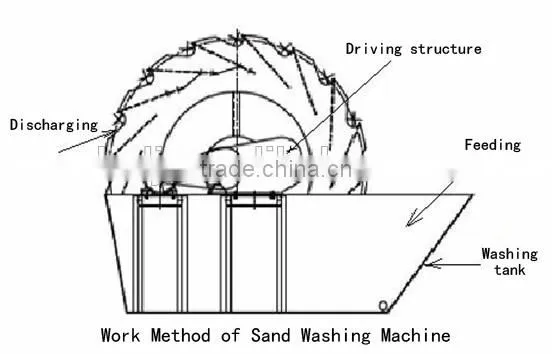

Bucket wheel sand wahser structure:
Specifications of Bucket Sand Washer Machine:
Models |
XSD2610 |
XSD2816 |
XSD3016 |
Impeller Specification (mm) (D×W) |
Φ2600×1000 |
Φ2800×1600 |
Φ3000×1600 |
Impeller Speed (mm) |
1.178 |
1.177 |
1.179 |
Capacity (t/h) |
20~50 |
30~60 |
50~120 |
Feed Size (mm) |
≤10 |
≤10 |
≤10 |
Water Consumption (mm) |
20~60 |
50~100 |
70~120 |
Electric Motor Power (KW) |
5.5 |
11 |
15 |
Decelerator Models |
ZQ50-50-I-Z |
ZQ60-50-I-Z |
ZQ65-50-I-Z |
Overall Dimensions (L×W×H) |
3255×1982×2690 |
3540×3000×2880 |
3845×3000 ×3080 |

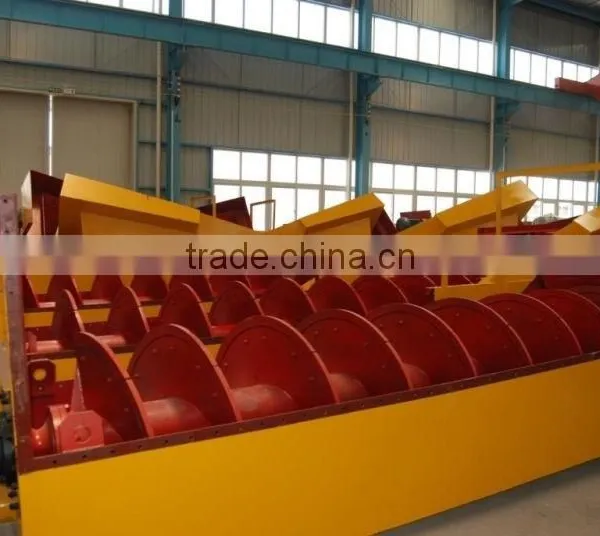

XL Series Spiral Sand Washer can wash and separate the soil and foreign material in the sand. Its novel structure, adjustable overflow dam baffle and reliable arrangement can make sure the result of wash.

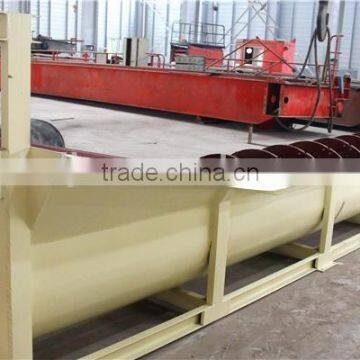

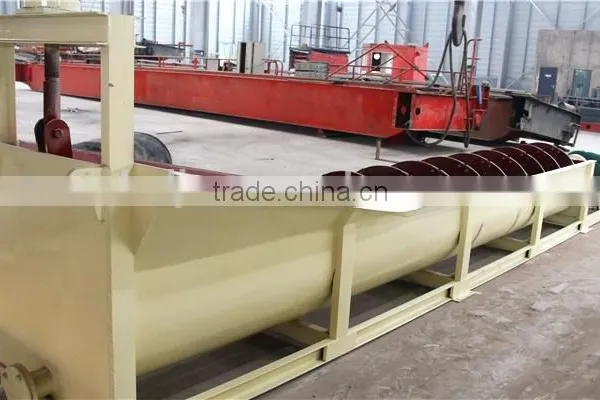

Spiral sand washing machine structure:
Spiral sand washing machine/sand washer technical specifications:
| Model | XL508 | XL610 | XL762 | XL915 | 2XL915 | XL1115 | 2XL1115 |
| Screw Diameter (mm) | 508 | 610 | 762 | 915 | 915 | 1115 | 1115 |
| Length of Tub (mm) | 6705 | 7225 | 7620 | 7585 | 7585 | 9782 | 9782 |
| Max Feed Size (mm) |
≤ 10 |
≤ 10 |
≤ 10 |
≤ 10 |
≤ 10 |
≤ 10 |
≤ 10 |
| Capacity (t/h) | 20 | 40-50 | 50-75 | 100 | 200 | 175 | 350 |
| Speed of Screw (r/min) | 38 | 32 | 26 | 21 | 21 | 17 | 17 |
| Motor Power (kw) | 5.5 | 7.5 | 11 | 11 | 2*11 | 15 | 2*15 |
| Water Consumption(t/h) | 6~60 | 6~63 | 9~63 | 10~80 | 20~160 | 20~150 | 40~300 |
| Overall Dimensions(mm) | 8000* 2343* 1430 | 8000* 2050* 1400 | 8545* 2650* 3862 | 8500* 2810* 3600 | 8420* 3765* 3960 | 10970* 3945* 4720 | 10970* 5250* 4720 |
| Weight (t) | 2.67 | 3.80 | 5.23 | 6.27 | 11.11 | 10.18 | 17.94 |
1. Henan Lanji Machinery Manufacturing Co., Ltd is professional in producing large and medium-sized crushers, ball mills,mining equipments, brick/block making machine and so on.
2. Our clients spread all over the world. Products are sold to South Korea,, Indonesia, Vietnam,
Portugal, Africa and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.
Contact: Ms Sara
Mobile phone : 008613783471727
Skype: sarapang6
website;
