Rolling Drum Trommel Screen With Reasonable Price for Sand and Mineral Ore

Rolling Drum Trommel Screen With Reasonable Price for Sand and Mineral Ore thumbnail-1
Rolling Drum Trommel Screen With Reasonable Price for Sand and Mineral Ore thumbnail-2
Rolling Drum Trommel Screen With Reasonable Price for Sand and Mineral Ore photo-1

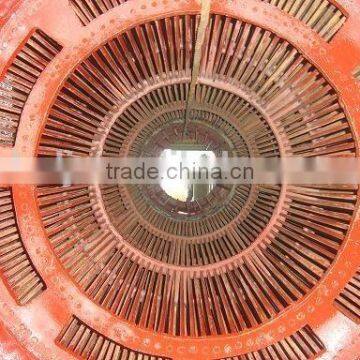

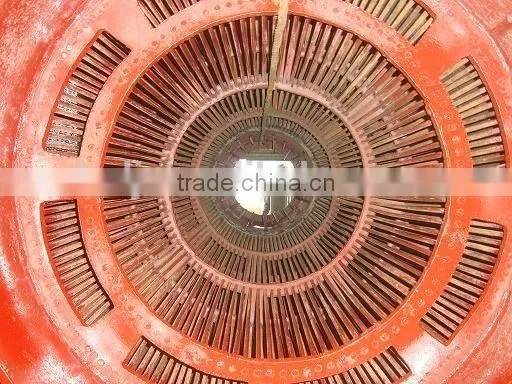

Rolling Drum Trommel Screen With Reasonable Price for Sand and Mineral Ore photo-2
US$ 5,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Ore
Place of Origin Henan, China
Brand Name Lanji
Model Number GTS830
Voltage 380v
Power(W) depend on the model
Dimension(L*W*H) Depends on the model
Weight Depends on the model
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

   Rolling drum trommel screen with reasonable price:



Rotary drum screen Application:


Rolling screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened sizeis 100mm,middle size is 10-50mm,  fine size is below 3mm



Rotary drum  screen working principle:

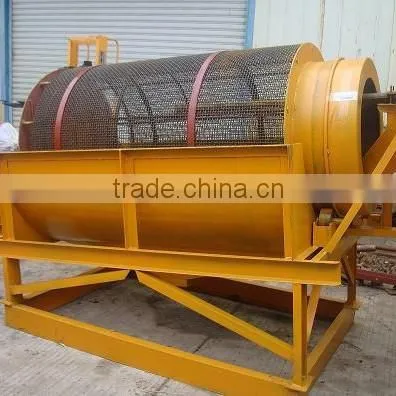

Rolling screen is composed by the rolling drum,funnel,gear box,motor .The materials enter the rolling drum,one hand, the materials are screened by the drum rolling, another hand,the large size materials flow ahead with the rolling drum gradient,and then sorted out through differet screen net size.The screend size fall in the funnel accordingly.



Rotary drum  screen feature:


1. long bearing lifetime

2. high efficiency and low energy sumption

3. high credits and good quality

4. not easy to be blocked.



Technical data of the rotary drum screen:





Model

Specification

(m)

Slope

Rotary speed

Sieve pore(mm)

Max feeding size (mm)

Production capacity(m3/h)

Motor power

(kw)

Sieve pore(2mm)

Sieve pore(20mm)

GTS820

Φ0.8X2

6°

32

2-20

Mesh size X2.5

7

30

3

GTS830

Φ0.8X3

6°

32

2-20

Mesh size X2.5

8

50

3

GTS1030

Φ1X3

6°

25

2-20

Mesh size X2.5

10

60

4

GTS1040

Φ1X4

6°

25

2-20

Mesh size X2.5

11

80

4

GTS1230

Φ1.2X3

6°

20

2-20

Mesh size X2.5

12

100

5.5

GTS1240

Φ1.2X4

6°

20

2-20

Mesh size X2.5

14

120

5.5

GTS1250

Φ1.2X5

6°

20

2-20

Mesh size X2.5

15

140

5.5

GTS1530

Φ1.5X3

6°

17

2-20

Mesh size X2.5

16

120

5.5

GTS1540

Φ1.5X4

6°

17

2-20

Mesh size X2.5

18

150

7.5

GTS1550

Φ1.5X5

6°

17

2-20

Mesh size X2.5

20

180

11

GTS1560

Φ1.5X5

6°

17

2-20

Mesh size X2.5

22

200

11



Features of rotary rotary drum screen

(1) Fine making drum, sturdy and durable. The steel frame is welded by section steel, large volume of the funnel.

(2) Several funnels can be used same time to discharge different materials.

(3) Mouth of the funnel is connected with flange; it can discharge materials on one side or both sides, convenient to handling of discharging. Then increase the productivity, also avoid wearing of the screen in case of delaying producing.

(4) Especially used for hard materials with low moisture, high productivity and reasonable design.

(5) Simple and reliable structure, operation stable, good hermetic sealing, no contamination, low noise, rapid exchanging net, fine classification, high separation ratio, high productivity, accurate separation, low malfunction rate and convenient maintenance, especially used for stone classification of sand factory.
