High Efficiency Alluvial Gold Mining Trommel Screen Washing Plant

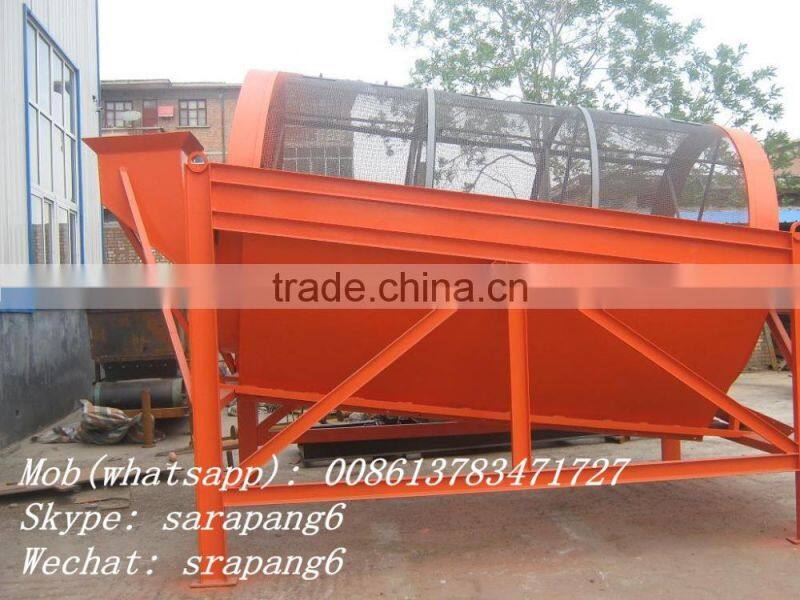

High Efficiency Alluvial Gold Mining Trommel Screen Washing Plant thumbnail-1
High Efficiency Alluvial Gold Mining Trommel Screen Washing Plant photo-1
US$ 5,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Circular, rolling screen
Application:
Ore
Contact Supplier Request Quote Chat Now
Henan Lanji Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Circular, rolling screen
Application Ore
Place of Origin Henan, China
Brand Name Lanji
Model Number GTS830
Voltage 380v
Power(W) 3 kw
Dimension(L*W*H) 3.5*1.2*1.8 m
Weight 2-50 T
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

    High efficiency alluvial gold mining trommel screen washing plant  :

gold trommel screen  application:



Trommel screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened sizeis 100mm,middle size is 10-50mm,  fine size is below 3mm



gold  trommel screen working principle:

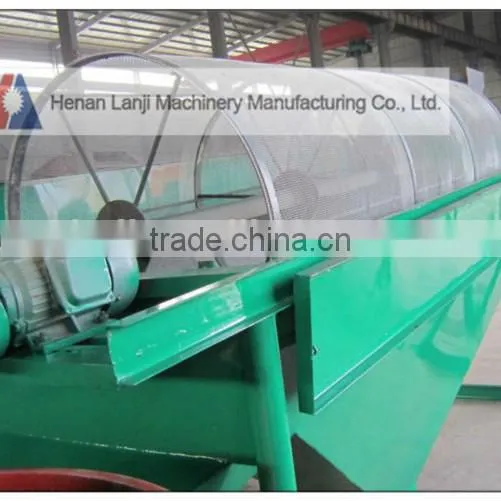

 sand gravel trommel screen is composed by the rolling drum,funnel,gear box,motor .The materials enter the rolling drum,one hand, the materials are screened by the drum rolling, another hand,the large size materials flow ahead with the rolling drum gradient,and then sorted out through differet screen net size.The screend size fall in the funnel accordingly.



gold trommel scree feature:


1. long bearing lifetime

2. high efficiency and low energy sumption

3. high credits and good quality

4. not easy to be blocked.

 High efficiency alluvial gold mining trommel screen washing plantHigh efficiency alluvial gold mining trommel screen washing plant

Technical data of the sand gravel trommel screen:





Model

Specification

(m)

Slope

Rotary speed

Sieve pore(mm)

Max feeding size (mm)

Production capacity(m3/h)

Motor power

(kw)

Sieve pore(2mm)

Sieve pore(20mm)

GTS820

Φ0.8X2

6°

32

2-20

Mesh size X2.5

7

30

3

GTS830

Φ0.8X3

6°

32

2-20

Mesh size X2.5

8

50

3

GTS1030

Φ1X3

6°

25

2-20

Mesh size X2.5

10

60

4

GTS1040

Φ1X4

6°

25

2-20

Mesh size X2.5

11

80

4

GTS1230

Φ1.2X3

6°

20

2-20

Mesh size X2.5

12

100

5.5

GTS1240

Φ1.2X4

6°

20

2-20

Mesh size X2.5

14

120

5.5

GTS1250

Φ1.2X5

6°

20

2-20

Mesh size X2.5

15

140

5.5

GTS1530

Φ1.5X3

6°

17

2-20

Mesh size X2.5

16

120

5.5

GTS1540

Φ1.5X4

6°

17

2-20

Mesh size X2.5

18

150

7.5

GTS1550

Φ1.5X5

6°

17

2-20

Mesh size X2.5

20

180

11

GTS1560

Φ1.5X5

6°

17

2-20

Mesh size X2.5

22

200

11



 High efficiency alluvial gold mining trommel screen washing plantHigh efficiency alluvial gold mining trommel screen washing plantHigh efficiency alluvial gold mining trommel screen washing plant
