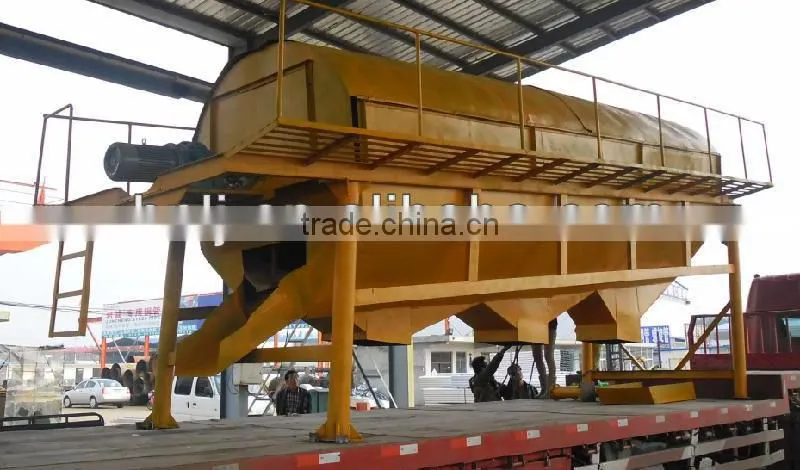

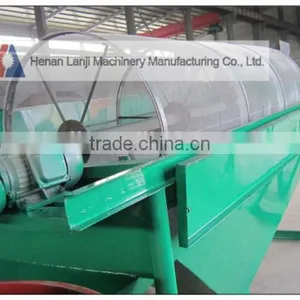

Rotary drum screen for fertilizer production line :
Rolling screen Application:
Rolling screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened sizeis 100mm,middle size is 10-50mm, fine size is below 3mm
Rolling screen working principle:

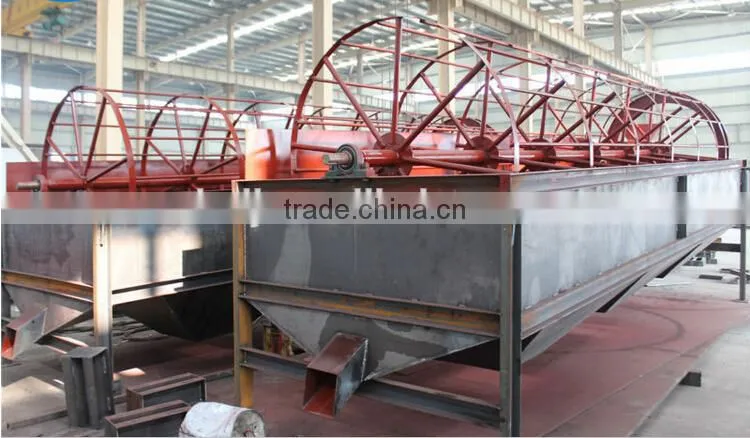

Rolling screen is composed by the rolling drum,funnel,gear box,motor .The materials enter the rolling drum,one hand, the materials are screened by the drum rolling, another hand,the large size materials flow ahead with the rolling drum gradient,and then sorted out through differet screen net size.The screend size fall in the funnel accordingly.
Rolling screen feature:
1. long bearing lifetime
2. high efficiency and low energy sumption
3. high credits and good quality
4. not easy to be blocked.
Technical data:
Model |
Specification (m) |
Slope |
Rotary speed |
Sieve pore(mm) |
Max feeding size (mm) |
Production capacity(m3/h) |
Motor power (kw) |
|
Sieve pore(2mm) |
Sieve pore(20mm) |
|||||||
GTS820 |
Φ0.8X2 |
6° |
32 |
2-20 |
Mesh size X2.5 |
7 |
30 |
3 |
GTS830 |
Φ0.8X3 |
6° |
32 |
2-20 |
Mesh size X2.5 |
8 |
50 |
3 |
GTS1030 |
Φ1X3 |
6° |
25 |
2-20 |
Mesh size X2.5 |
10 |
60 |
4 |
GTS1040 |
Φ1X4 |
6° |
25 |
2-20 |
Mesh size X2.5 |
11 |
80 |
4 |
GTS1230 |
Φ1.2X3 |
6° |
20 |
2-20 |
Mesh size X2.5 |
12 |
100 |
5.5 |
GTS1240 |
Φ1.2X4 |
6° |
20 |
2-20 |
Mesh size X2.5 |
14 |
120 |
5.5 |
GTS1250 |
Φ1.2X5 |
6° |
20 |
2-20 |
Mesh size X2.5 |
15 |
140 |
5.5 |
GTS1530 |
Φ1.5X3 |
6° |
17 |
2-20 |
Mesh size X2.5 |
16 |
120 |
5.5 |
GTS1540 |
Φ1.5X4 |
6° |
17 |
2-20 |
Mesh size X2.5 |
18 |
150 |
7.5 |
GTS1550 |
Φ1.5X5 |
6° |
17 |
2-20 |
Mesh size X2.5 |
20 |
180 |
11 |
GTS1560 |
Φ1.5X5 |
6° |
17 |
2-20 |
Mesh size X2.5 |
22 |
200 |
11 |
