Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine

Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine photo-1

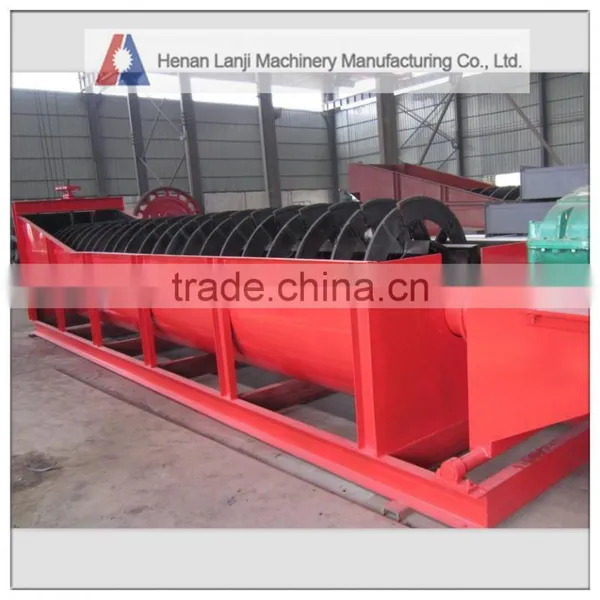

Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine photo-2

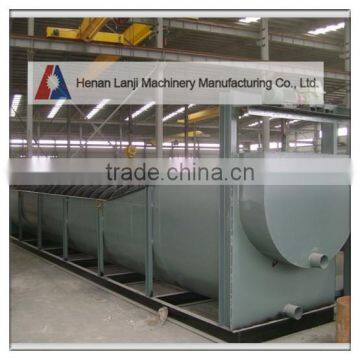

Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine photo-3

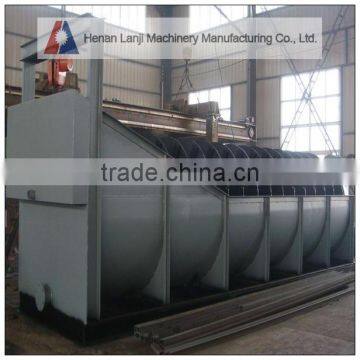

Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine photo-4

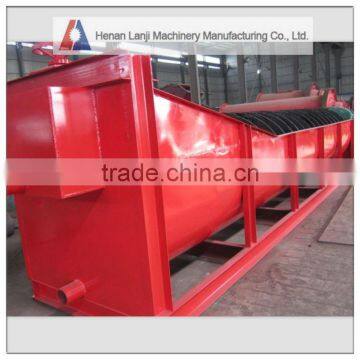

Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine photo-5

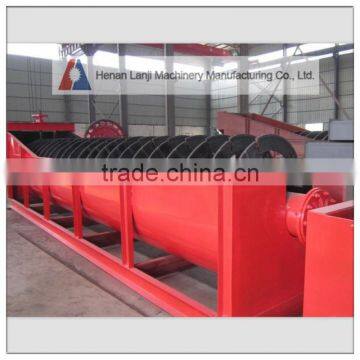

Top Quality Double Spiral Sand Classifier/ Screw Sand Washing Machine photo-6
US$ 8,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
5-50 KW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Motor Type AC Motor
Power(W) 5-50 KW
Capacity(t/h) 50
Place of Origin Henan, China
Brand Name Lanji
Model Number XL-610
Dimension(L*W*H) 6.5*1.2*1.8M
Weight 2-30 T
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Product Description



Top quality double spiral sand classifier/ screw sand washing machine



Classification of sand screw washer/ spiral ore washer/ stone classifier

1. High weir type: It's mainly used for the separator of ores with particle size between 0.83-0.15mm;

2. Sank: It is mainly applied to the separator of ores with particle size between 0.15-0.07mm.

Top quality double spiral sand classifier/ screw sand washing machine



 Top quality double spiral sand classifier/ screw sand washing machineTop quality double spiral sand classifier/ screw sand washing machine

Overview of sand screw washer/ spiral ore washer/ stone classifier



According to the different proportion of solid particles, the rate of precipitation in the liquid is also different, spiral classifier concentrates fine ore based on certain principle. After grinding, the materials will pass through filter, through which the coarse materials will return to ball mill and the fine ores will be discharged from the overflow pipe.

 Top quality double spiral sand classifier/ screw sand washing machine



3. Technical Data:



Model

Spiral diameter

(mm)

Feeding size

(mm)

Water consumption(t/h)

Capacity

(t)

Power

(kw)

   Overall

Dimensions

  L*W*H (mm)

Weight(kg)

XL-508

508

≤10

14-88

 20

  5.5

8000X2343X1530

2670

XL-610

610

≤10

14-165

 50

  7.5

8000X2490X1530

3800

XL-762

762

≤10

18-124

 75

  11

9070X2650X1638

5225

XL-914

914

≤10

18-162

 100

  15

9070X2650X1638

6370

XL-1118

1118

≤10

27-333

 175

  30

9070X2830X1900

9800



 Top quality double spiral sand classifier/ screw sand washing machineTop quality double spiral sand classifier/ screw sand washing machine

Top quality double spiral sand classifier/ screw sand washing machine
