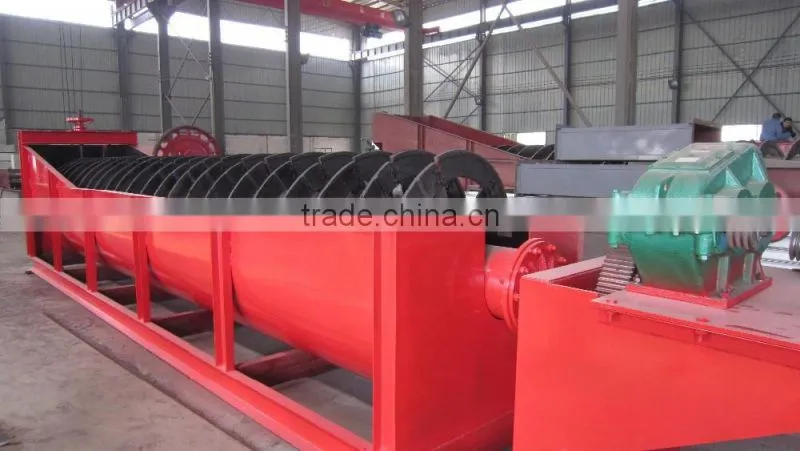

Spiral sand washing machine/sand classifier :
1.Big processing capacity and low power consumption
2.Small material loss after washing, high washing and selecting efficiency
3.Reasonable structure and stable operation
4.Low failure rate, easy repairing
5.Saving water resource, without pollution
6.Long service life and no necessity of repair for a long time
Spiral sand washing machine Application fields:
The product of this series is applicable to washing, grading and dewatering #70 sand which is used for casting in construction field, sand plant, concrete dam field of hydropower station and post utility pole plant, quartz sand used in glass plant and pressure sand used for backfilling of oil well. It can wash and select material with fine or coarse granularity and is especially suitable for construction sand and road building sand.
Spiral sand washing machine Suitable material:
The product of this series is a high-efficiency bucket type sand washer developed and produced according to actual situations of Chinese sandstone industry. Cooperating with sand maker and having functions of cleaning, dewatering and grading, it can remove impurities (such as dust) in sand product.
Technical Data of the spiral sand washing machine:
Model |
Spiral diameter (mm) |
Feeding size (mm) |
Water consumption(t/h) |
Capacity (t) |
Power (kw) |
Overall Dimensions L*W*H (mm) |
Weight(kg) |
XL-508 |
508 |
≤10 |
14-88 |
20 |
5.5 |
8000X2343X1530 |
2670 |
XL-610 |
610 |
≤10 |
14-165 |
50 |
7.5 |
8000X2490X1530 |
3800 |
XL-762 |
762 |
≤10 |
18-124 |
75 |
11 |
9070X2650X1638 |
5225 |
XL-914 |
914 |
≤10 |
18-162 |
100 |
15 |
9070X2650X1638 |
6370 |
XL-1118 |
1118 |
≤10 |
27-333 |
175 |
30 |
9070X2830X1900 |
9800 |
