calcium carbonate ball mill :
1.simple structure ball mill
uced consumption by 30%
3.increased capacity by 20%
4.Improve fineness
ball mill features:
1)New type on improved on the old type 2) Large diameter double roe self-aligning roller bearings
3) The whole rack, easy to install 4) By adopting an integral steel under-frame,installation precision is high.

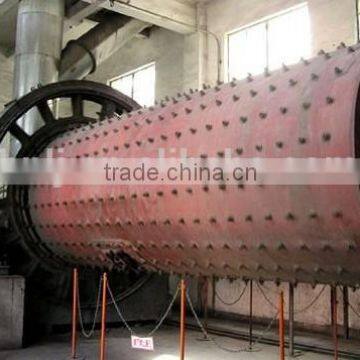

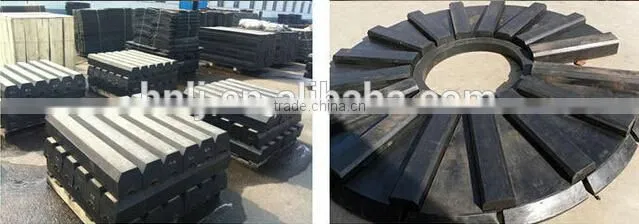

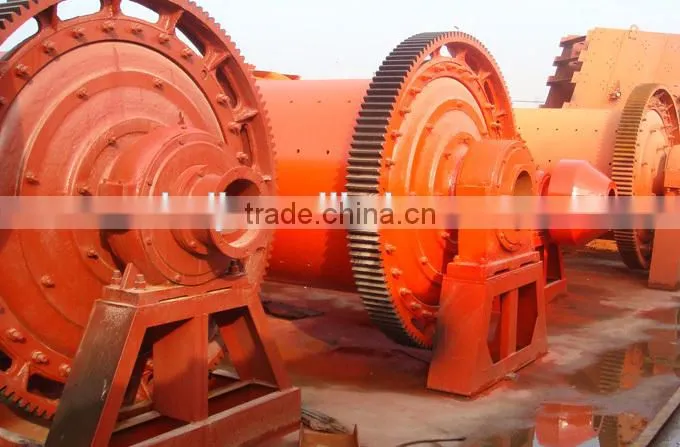

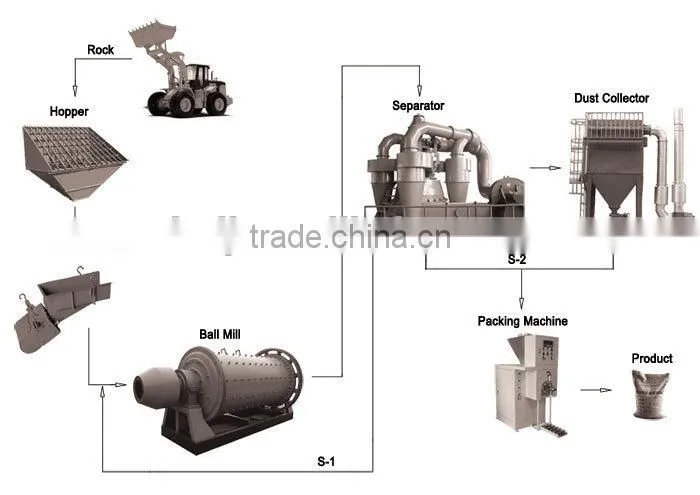

ball mill /calcium carbontae dry ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
ball mill main technical parameters:
| Model | Cylinder rotary speed(r/min) | Loading ball weight(t) | Input size(mm) | Discharge size(mm) | Capacity(t/h) | Motor power (kw) | Weight (t) |
| Ø900×1800 | 39 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
| Ø900×3000 | 39 | 2.7 | ≤20 | 0.075-0.89 | 1~4 | 22 | 5.6 |
| Ø1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2~5 | 75 | 15.6 |
| Ø1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ø1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4~10 | 130 | 28 |
| Ø1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7~16 | 210 | 34 |
| Ø2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
| Ø2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12~23 | 280 | 48.5 |
| Ø2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| Ø2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| Ø2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 18-45 | 320 | 65 |
| Ø2700×3600 | 21 | 39 | ≤25 | 0.074-0.4 | 19-75 | 400 | 83 |
| Ø2700×4500 | 20 | 48 | ≤25 | 0.074-0.4 | 22-85 | 430 | 89 |
| Ø3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 29-140 | 800 | 137 |
| Ø3200×5400 | 18 | 81.6 | ≤25 | 0.074-0.4 | 30-180 | 800-1000 | 146 |
| Ø3600×4500 | 17 | 88 | ≤25 | 0.074-0.4 | 35-210 | 1000 | 190 |
| Ø3600×8500 | 17 | 144 | ≤25 | 0.074-0.4 | 45-260 | 1800 | 260 |
