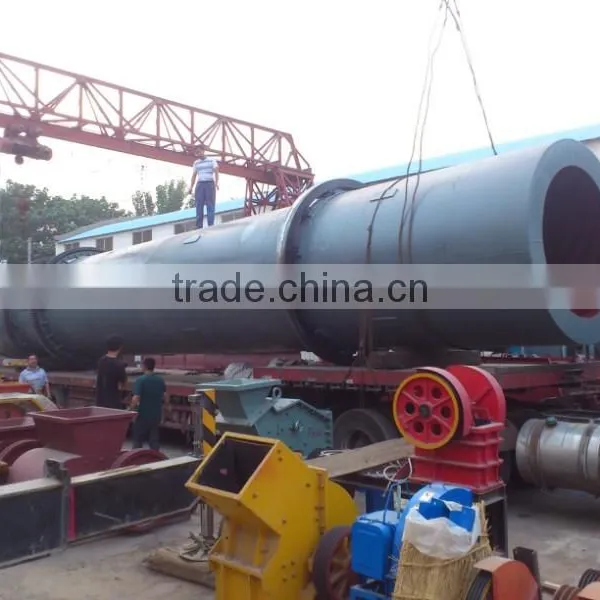

Top quality mineral ore powder rotary dryer for sale
Mineral ore rotary dryer is used for drying materials with a certain humidity or granularityin milling of ores, building materials, metallurgy and chemical industry. Rotary dryer machinery has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable.
It is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; Therefore, it has been widely used.
Rotary dryer could be used for many kinds of material, like sand, coal, lignite, sawdust, slag, clay, ore, etc.
The advantages of Mineral ore Rotary Dryer:
1. High drying efficiency
2. Smooth rotation
3. Low energy consumption
4. Easy operation
5. Large capacity

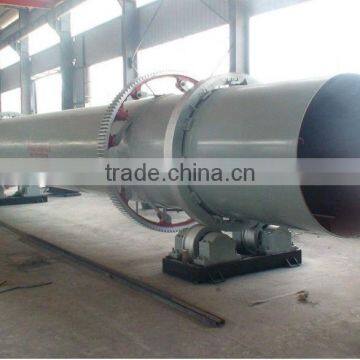

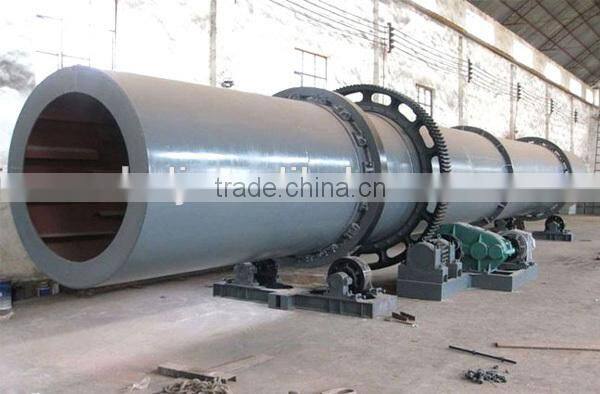

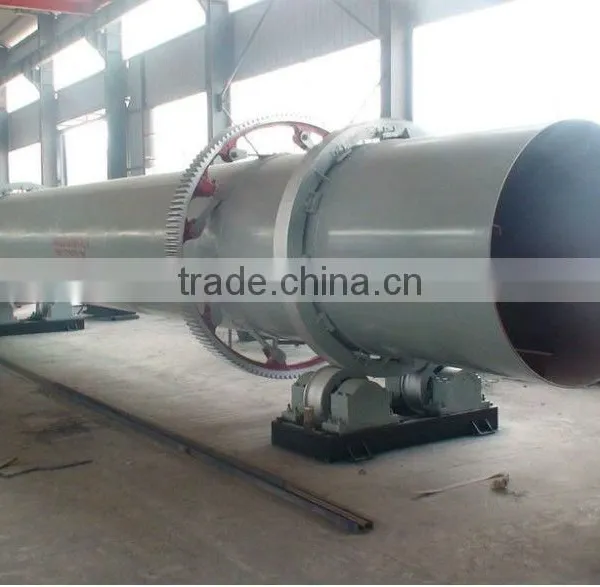

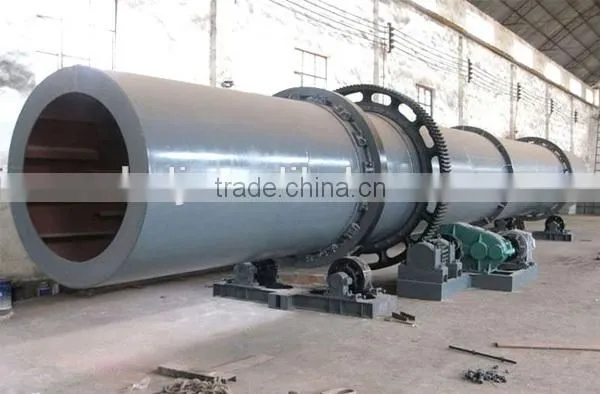

The Structure of Mineral Ore Rotary Dryer:
It is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc. Its principle of operation: The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed. Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries.

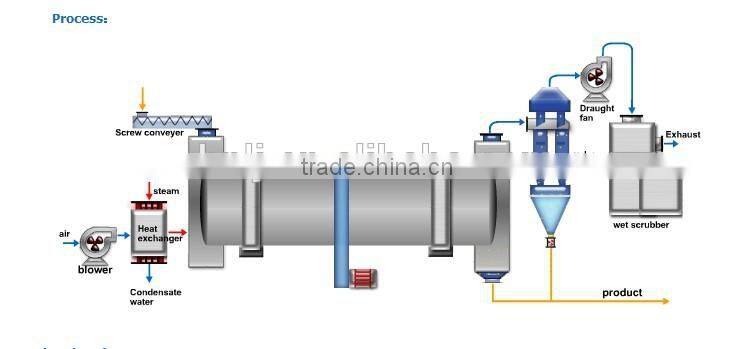

Working principle of rotary dryer :
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
Rotary dryer technical parameters:
| Type (mm) | Gradient (%) | Rotational speed (r/min) | Inlet air tempreture() | power (KW) | Pro-capacity (t/h) | weight (T) |
| Φ 600x6000 | 3-5 | 3-8 | ≤ 700 | 3 | 0.5-1.5 | 2.9 |
| Φ 800x8000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2.0 | 3.5 |
| Φ 800x10000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2.5 | 4.5 |
| Φ 1000x10000 | 3-5 | 3-8 | ≤ 700 | 5.5 | 1.0-3.5 | 5.6 |
| Φ 1200x10000 | 3-5 | 3-8 | ≤ 700 | 7.5 | 1.8-5 | 14.5 |
| Φ 1200x12000 | 3-5 | 3-8 | ≤ 700 | 11 | 2-6 | 14.8 |
| Φ 1500x12000 | 3-5 | 2-6 | ≤ 800 | 15 | 3.5-9 | 17.8 |
| Φ 1800x12000 | 3-5 | 2-6 | ≤ 800 | 18 | 5-12 | 25 |
| Φ 2200x12000 | 3-5 | 1.5-6 | ≤ 800 | 18.5 | 6-15 | 33 |
| Φ 2200x18000 | 3-5 | 1.5-6 | ≤ 800 | 22 | 10-18 | 53 |
| Φ 2200x20000 | 3-5 | 1.5-6 | ≤ 800 | 30 | 12-20 | 56 |
| Φ 2400x20000 | 3-5 | 1.5-5 | ≤ 800 | 37 | 18-30 | 60 |
| Φ 3000x20000 | 3-5 | 1.5-5 | ≤ 800 | 55 | 25-35 | 78 |
| Φ 3000x25000 | 3-5 | 1.5-5 | ≤ 800 | 75 | 35-65 | 104.9 |
| Φ 3600x29000 | 3-5 | 1.3-5 | ≤ 800 | 110 | 40-70 | 150 |
