Newest limestone Rotary drum dryer machine:
Rotary Dryer Description:

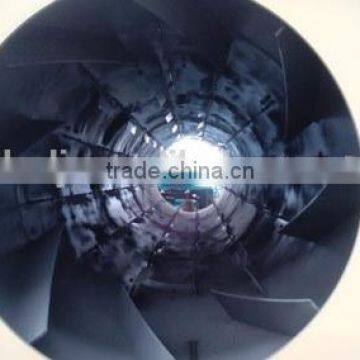

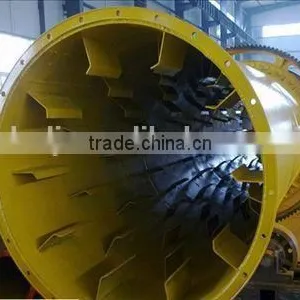

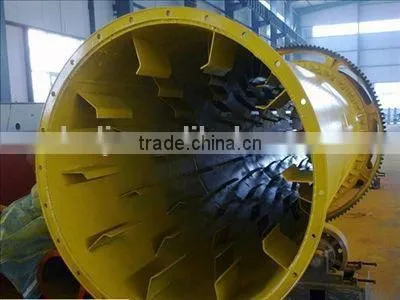

Drier is a cylinder, its main body is a little bit slantwise, and the rotate speed can be adjusted within bounds. Wet raw materials are sent into cylinder, the materials are well-distributed and dispersed after be turned over by shovelling plate, then the materials contact with the hot air fully, the drying is accerlated. Shoveling plate can be selected to meet different materials
Rotary dryer advantages:
(1)strong overload capacity resistance ,large process load, low fuel consumption, and low cost, stable and reliable operation
(2) With the low outlet temperature, the high heat efficiency
3)The operating parameter can be changed according to different materials.
(4)The granularity and the moisture and be controlled by the customer’s demand.
(5)The riding wheel device and the rolling ring keep linear touch all the time, reducing the abrasive and the power loss
(6)The zero level thrust of the dryer reduces the abrasion between the catch wheel and the riding wheel.
The Components of rotary dryer :
The dryer consists of rotary body, throwing flitch, transmission device, supporting device ,sealing ring, heat source, beater device, belt loading machine, feeding machine, rotary roller, belt discharger, draft fan, discharger, and switch board.
Technical Data:
Model (mm) | Inclination (%) | rotation speed (r/min) | input temperature | motor power (kw) | output(t/h) | weight(t) |
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 |
Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 |
Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 80 |
Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 110 |
