coal slime rotary dryer application:
rotary dryer can be widely used to dry various materials, such as metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. As a professional manufacturer with many years’ experiences on mining machinery, we can produce and supply all kinds of dryer machines, such as Rotary dryer, Limestone dryer, Drum dryer, Cement rotating dryer and so on.

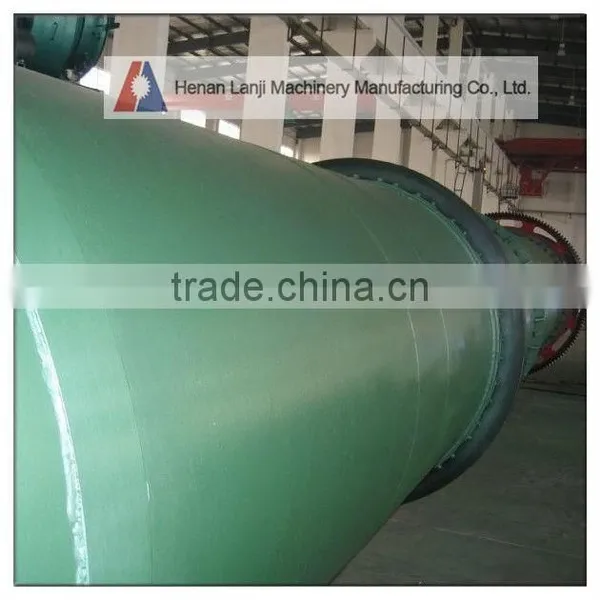

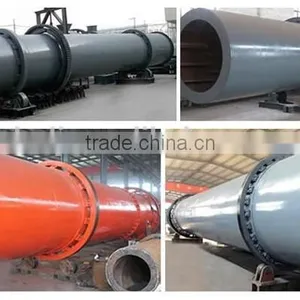

coal slime rotary dryer structure:

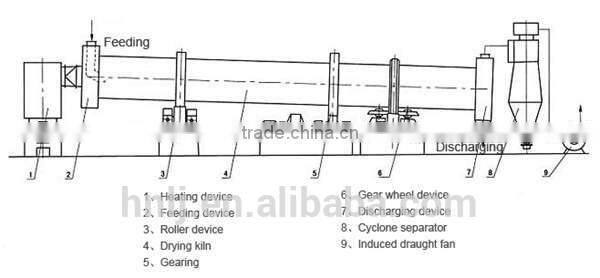

Rotary dryer is composed of 1.shell body2.front tyre3.rear tyre4.gears5.Thrust rollers 6.support rollers 7.Pinion gears 8.Dischargeing parts 9.Lifting blades 10.Speed reducer 11.Motor 12.Air-windflow 13.input and output device.And accoring to the customer’s requirements,we can match belt conveyor or bucket elevator,cyclone separate,draught fan,eworking principle:
coal slime rotary dryer main working principle:
the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.
coal slime rotary dryer advantages:
The dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
Performance Characteristics of Rotary Dryer:This series drier is used for drying materials with humidity or granularity in
the industries of mineral dressing, building material, metallurgy and chemical. Rotating dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
coal slime rotary dryer main technical parameters:
Model (mm) | Inclination (%) | Rotating Speed (r/min) | Admission Temperature | Power (kw) | Production Capacity (t/h) | Weight (t) |
φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
φ800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
φ1000x10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
φ1200x10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
φ1200x12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
φ1500x12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
φ1800x12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
φ2200x12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
2φ200x18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
φ2200x20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
φ2400x20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 |
φ3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
φ3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
