Mineral ore jaw crusher PE500*750:
Feed Size :210-1020(mm)
Capacity : 3-500(m3/h)
Application : mining, smelting, road and railway construction, water conservation and chemical industry etc.
Raw Materials : Limestone, sandstone, coke, coal gangue, coal, gypsum, slag, coke, etc.
Mineral ore jaw crusher introduction:
Rock jaw Crusher is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway and chemical industry.rock jaw cursher has primary PE aw crusher and PEX secondary jaw crusher.
Mineral ore jaw crusher working principle:
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

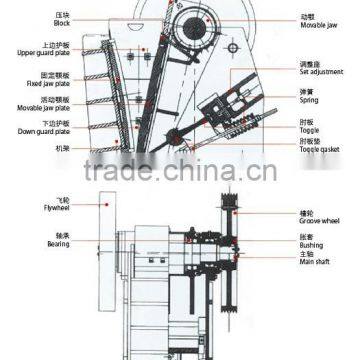

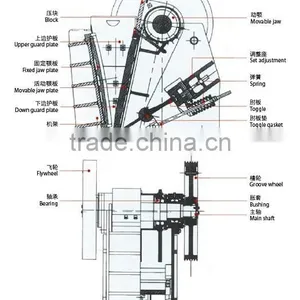

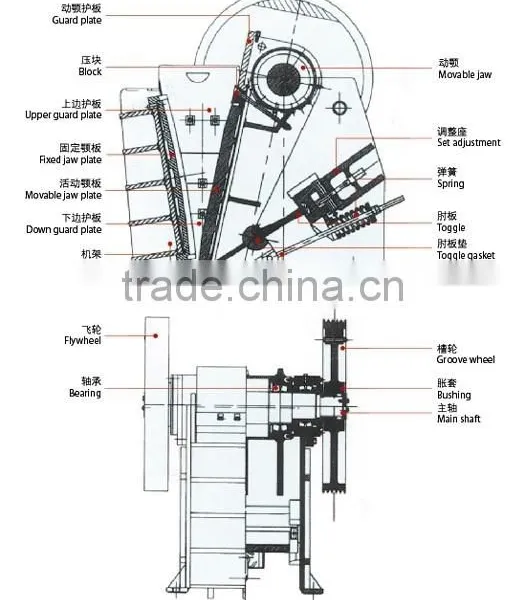

Mineral ore jaw crusher structure:
Mineral ore jaw crusher main spare parts:
Mineral ore jaw crusher main technical parameters:
| Model | Feed opening size(mm) | Max feed Size (mm) |
Adjustment range of outlet (mm) |
Capacity (t/h) | Motor power (kw) | Weight (t) | Overall dimension (L×W×H) (mm) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720×660×850 |
| PE-250×400 | 400×250 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300×1090×1270 |
| PE-400×600 | 600×400 | 340 | 40-100 | 16-60 | 30 | 7 | 1730× 1730×1630 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-80 | 55 | 12.5 | 1980×2080×1870 |
| PE-600×900 | 900×600 | 500 | 65-140 | 50-150 | 75 | 17 | 2190×2206×2300 |
| PE-750×1060 | 1060×750 | 630 | 80-160 | 110-260 | 90 | 30 | 2660×2430×2800 |
| PE-900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 110 | 52 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 220-550 | 110 | 54 | 3480×2876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 | 100.9 | 4200×3300×3500 |
| PE-1500×1800 | 1500×1800 | 1100 | 220-350 | 450-900 | 355 | 123 | 5300×4700×4300 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 5-20 | 15 | 3.8 | 1200×1530×1060 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 30 | 5 | 1380×1750×1540 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-50 | 37 | 7 | 1560×1950×1390 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-65 | 37 | 8 | 2140×1660×1500 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 20-90 | 55 | 12 | 2720×1950×1600 |
