High Efficiency Quartz Stone Crusher for Sale

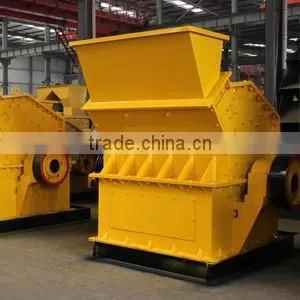

High Efficiency Quartz Stone Crusher for Sale photo-1

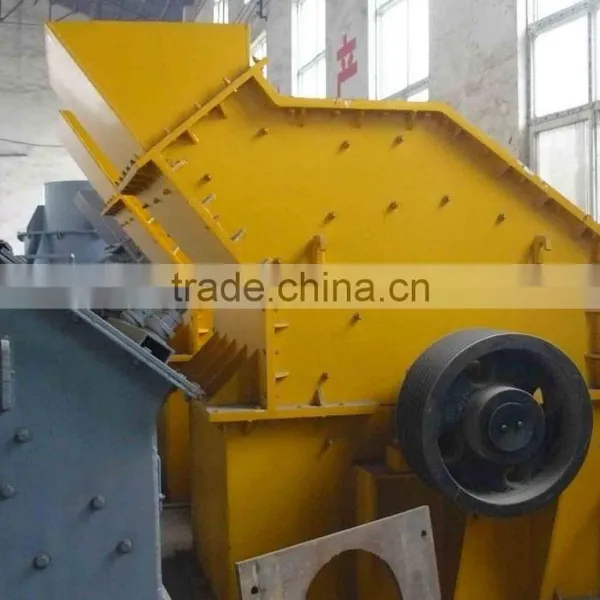

High Efficiency Quartz Stone Crusher for Sale photo-2

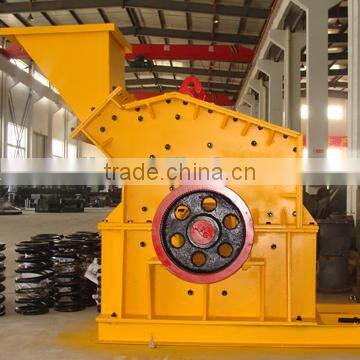

High Efficiency Quartz Stone Crusher for Sale photo-3

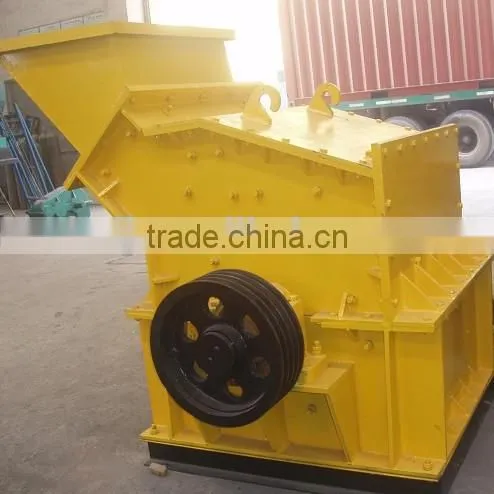

High Efficiency Quartz Stone Crusher for Sale photo-4
US$ 2,500 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Application:
stone crushing
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Impact Crusher
Application stone crushing
Motor Type AC Motor
Power(W) refer to specification
Capacity(t/h) 35-300
Place of Origin Henan, China
Brand Name Lanji
Model Number PCX800*400-PCX1600*1600
Dimension(L*W*H) refer to specification
Weight refer to specification
Certification ISO9001
Warranty one year
After-sales Service Provided Overseas service center available

High efficiency quartz stone crusher for sale :

This series feature of rational multi crushing chambers and novel double adjusting mechanism, which can ensure 85% of the discharged materials less than 3mm, and the uniformity of the product fineness can be controlled.

quartz stone crusher main model: PCX800*400,PCX800*600,PCX800*800,PCX1000*1000,PCX1200*1200,PCX1400*1400,etc.

The impact fine crusher discharging grid plate adjusting size:5-20mm, the input size is  ≤120mm,the output size is below 5mm.the impact fine crusher is also called new type sand making machine,widly used for sand making plant.

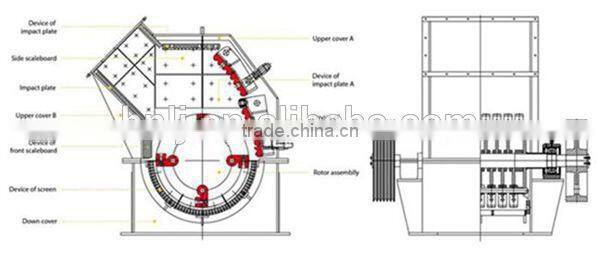

  quartz stone crusher main structure:



The structure is  1. Lower case , Square steel, Grate bar assembly Grate bar , Hammer , Hammer block,Side plate,wheel boss,Second fine crushing chamber ,Hammer bolts,Top liner , Primary crushing chamber

High efficiency quartz stone crusher for sale

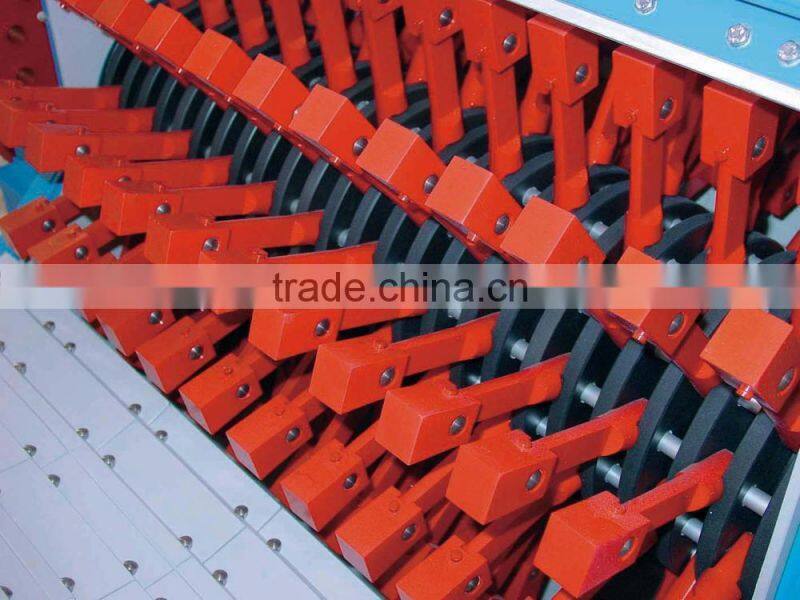

Rotor :

High efficiency quartz stone crusher for sale

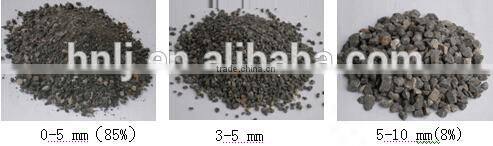

Final products:

lHigh efficiency quartz stone crusher for sale



quartz stone crusher main technical data:



Type

800×

400

800×

600

800×

800

1000×

1000

1000×

1200

1200×

1200

way-in size(mm)

400×185

500×250

550×330

1000×350

1200×400

1200×450

feeding size(mm)

<120

<180

<180

<180

<180

<180

discharge size(mm)

<5

<5

<5

<5

<5

<5

adjustment size(mm)

5-20

5-20

5-20

5-20

5-20

5-20

cement clinker(t/h)

20-30

20-30

20-30

20-30

20-30

20-30

limestone(t/h)

35-45

45-55

55-65

65-75

50-100

90-100

motor power(Kw)

37

45

55

75

90

110



quartz stone crushe advantages:

This series feature of rational multi crushing chambers and novel double adjusting mechanism, which can ensure 85% of the discharged materials less than 3mm, and the uniformity of the product fineness can be controlled.

Easy access for maintenance has made the hammers and screen bars replaced much easier. All the wearing parts are made of new type of high chromium alloy materials with multiple elements so as to ensure the abrasive property and impact-resisting property of hammers and liner plates. This series of crushers also feature of stable operation, low dust and less power consumption which have prestigious advantages when comparing with conventional crushers.

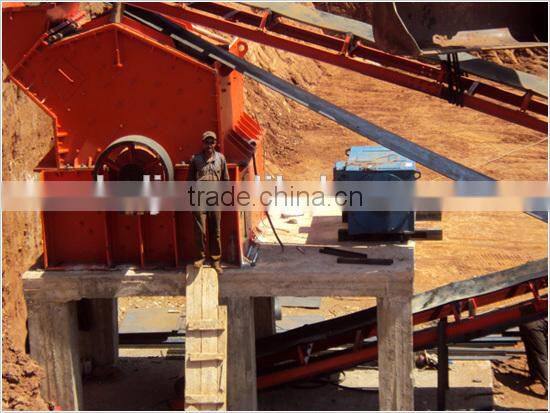

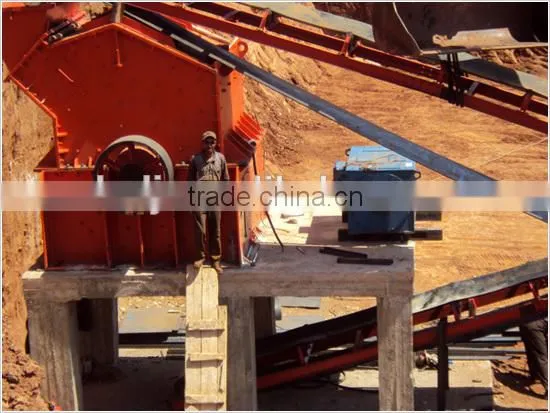

Impact fine crusher installation site:

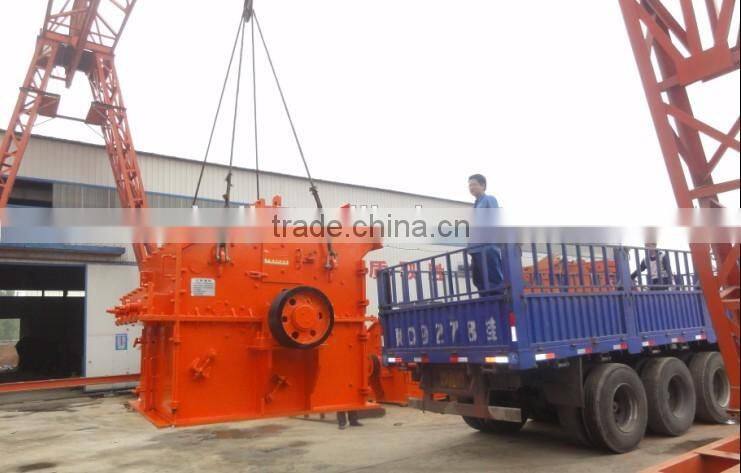

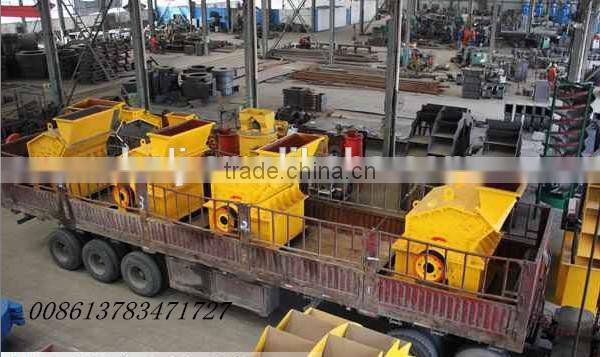

 Impact fine crusher delivery:

 High efficiency quartz stone crusher for sale

 High efficiency quartz stone crusher for sale

High efficiency quartz stone crusher for sale
