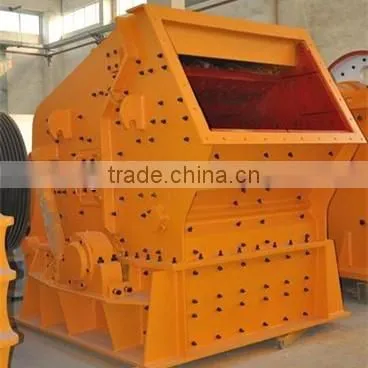

Medium hardness rock impact crusher machine PF 1010 :
1. A large inlet, high crushing chamber which is suitable for materials with high hardness, biger block and less powder;
2. Clearance between impact-plate and plate can be adjust conviniently, which can make effective control of the particle size posible, broken end product is of cubic shape, the grain shape is good;
3. It has compact structure, high machine rigidity, and the rotor has a large inertia;
4. high chrome hammer, impact resistance, abrasion resistance, mechanical wear small, big impact;
5. Using new rotor can increase the impact force;
6. Broken-function is complete, reduction ratio is big, it is of high productivity, low energy consumption, and its overall efficiency is high.
impact crusher application:
Impact crusher is a new product that absorbs advanced technologies at home and abroad. Impact crusher is suitable for materials whose compressive strength is under 360Mpa, and particle size is under 500mm.The company impact crusher features easy maintenance, high crushing ratio and crushing efficiency etc. With end products in cubic shape, impact crushers are the ideal crusher for aggregates processing in high-type highway building, water conservancy and power construction.impact crusher mainly as the secondary crushing machine.
Impact crusher working principle:
PF Series Impact Crusher use impact energy to crush materials. When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed, then discharged from the discharge port. Users can adjust the space between Impact Rack and Rotor Support, and then get to the expected size.
Impact crusher Advantages:
1.Feed opening is big, crushing chamber is high;
2.Clearance between impact plate and blow bar is easy to be adjusted;
3.The final product size can be controlled easily;
4.The final product is of cubic shape, without inner crack;
5.High chrome blow bar, it is wearable;
6.No-board connection,easy to be checked;
7.High crushing ratio,comprehensive benefits is high.
Gravel impact crusher technical parameters:
Model |
Size (mm) |
Size of feeder opening (mm) |
Max feeding size (mm) |
Capacity (t/h) |
Motor power (t/h) |
PF-0607 |
Φ-644×740 |
320×770 |
100 |
10-20 |
30 |
PF-0807 |
Φ-850×700 |
400×730 |
300 |
15-30 |
30-45 |
PF-1008 |
Φ-1000×800 |
400×830 |
300 |
30-50 |
37-55 |
PF-1010 |
Φ-1000×1050 |
400×1080 |
350 |
50-80 |
55-75 |
PF-1210 |
Φ-1250×1050 |
400×1080 |
350 |
70-120 |
110-132 |
PF-1212 |
Φ-1250×1250 |
400×1300 |
350 |
100-150 |
132-160 |
PF-1214 |
Φ-1250×1400 |
400×1430 |
400 |
130-180 |
160-200 |
PF-1315 |
Φ-1320×1500 |
860×1520 |
500 |
160-250 |
180-260 |
PF-1320 |
Φ-1320×2000 |
860×2030 |
500 |
300-350 |
300-37 |
